A reach stacker is a vehicle used for handling intermodal cargo containers in small terminals or medium-sized ports. Reach stackers can transport a container short distances very quickly and pile them in various rows depending on their access.

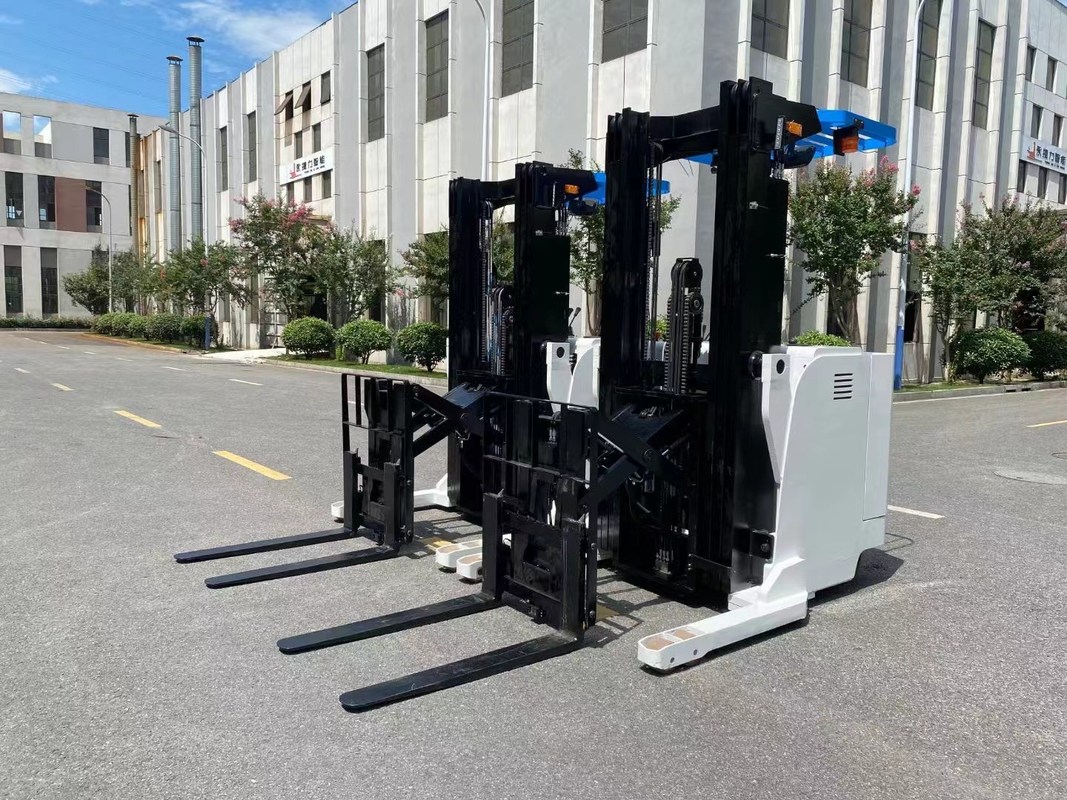

Yongjieli Reach forklift Truck Making your aisles taller and more narrow is a good way to create more space when your warehouse becomes cramped, but it can also make navigation and material handling difficult. We can be assets to any warehouse fleet – allowing operators to easily navigate in and out of narrow aisles and reach significant heights, all while maintaining lifting capacity.
Advantage:
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift for more than 5 years.
Q2: How about the delivery time?
A2: About 30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes. We can provide both OEM & ODM.
| Model | CDD050 | |
| Power type | Electric | |
| Operation mode | Walking type | |
| Rated load | kg | 500 |
| Load center distance | mm | 500 |
| Tire type (front/ rear) | Polyurethane | |
| Number of tires | 4/1X+1 | |
| Mast type | Duplex mast | |
| Standard lifting height | mm | 3000 |
| Height of mast closed | mm | 2080 |
| Mast height during lifting | mm | 3565 |
| Minimum ground clearance of cargo depot | mm | 85 |
| Overall length | mm | 2030 |
| Wheelbase | mm | 1430 |
| Overall width | mm | 850 |
| Track width (front/ rear) | mm | 490/545 |
| Fork specifications | mm | 1150*190*65 |
| Fork side outer distance | mm | 680/560 |
| Turning radius | mm | 1645 |
| Channel width (1200x1000 pallets, 1200 horizontal) | mm | 2515 |
| Travel speed (full load/ no load) | km/h | 4.0/4.5 |
| Lifting speed (full load/ no load) | mm/s | 80/125 |
| Descent speed (full load/ no load) | mm/s | 160/105 |
| Gradient (full load/ no load) | % | 6/10 |
| Drive motor power | kw | 1.5 |
| Type of lifting motor | DC | |
| Lifting motor power | kw | 2.2/3.0 |
| Battery voltage/ capacity | v/ah | 24/100 |
| Battery weight | kg | 75 |
| Service weight (incl. battery) | kg | 850 |
| Steering type | Manual operation | |
| Parking brake type | Electromagnetism | |
| Parking brake operation mode | Handle operation |
Our products are sold all over the world, you can rest assured.
