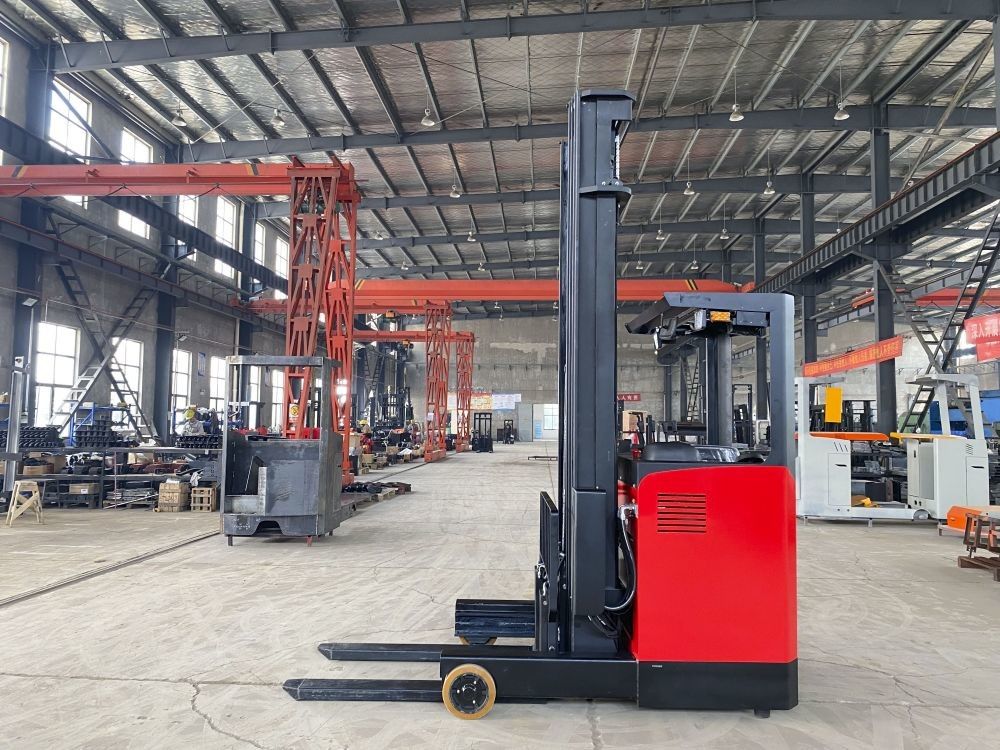

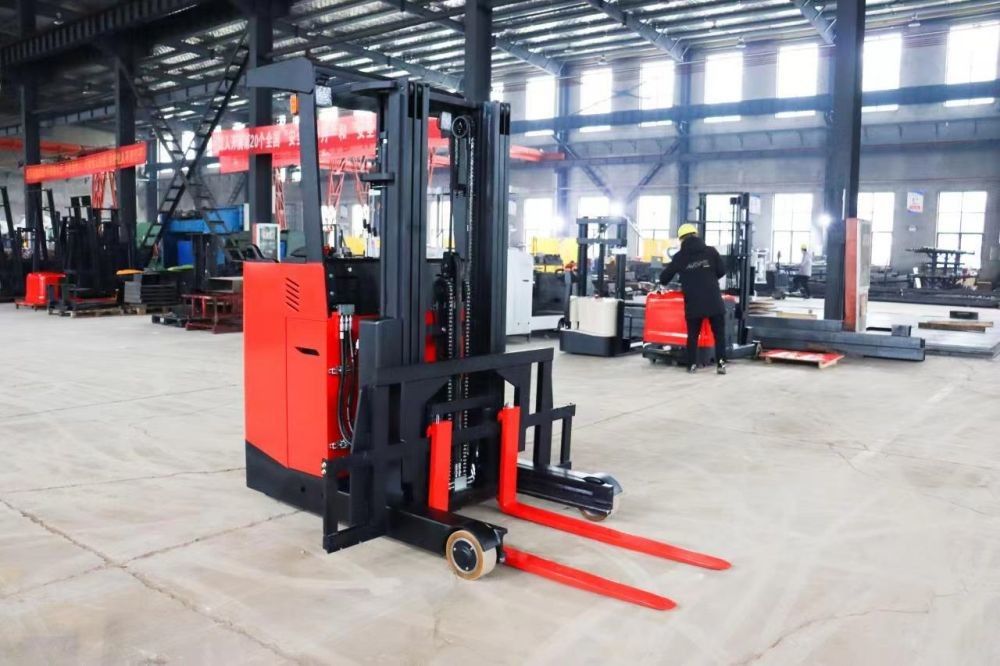

Non-standard Electric Reach Forklift Seat Style Rated Load 2500 KG Torch Brand 48V High Capacity Lead-acid Battery
Advantage:
Security:
AC EPS
Fixed fork
Optional lithium battery
Optional 24v165/210ah lead-acid battery
Applicable to single-sided pallets
Model | CQD15 | CQD25 | |
Power type | Electric | ||
Operation mode | Seated type | ||
Rated load | kg | 1600 | 2500 |
Load center distance | mm | 600 | 600 |
Tire type | mm | Solid PU | |
Front wheel specification | mm | 267*114 | |
Specification of driving wheel | mm | 343*135 | |
Number of tires | 2/1X | ||
Fork inclination (forward / backward) | 3/ 5 | ||
Standard lifting height | mm | 7500 | |
Free lifting height | mm | 2585 | |
Height of mast closed | mm | 3150 | 3250 |
Maximum height during lifting | mm | 8485 | |
Height of roof protection frame | mm | 2190 | |
Fork leg height | mm | 310 | |
First pedal height | mm | 320 | |
Second pedal height | mm | 530 | |
Seat height | mm | 975 | |
Distance between the second pedal and the roof protection frame | mm | 1615 | |
Ground clearance of fork leg | mm | 110 | |
Floor clearance of underbody | mm | 80 | |
Overall length | mm | 2440 | 2500 |
Reach distance | mm | 550 | 650 |
Front overhang distance | mm | 160 | |
Wheelbase | mm | 1495 | 1665 |
Overall width | mm | 1270 | |
Track width (front / rear) | mm | 1158/0 | |
Outside width of fork | mm | 210-800 | 260-820 |
Fork specifications | mm | 1070*100*35 | 1070*122*40 |
Channel width (1000*1000mm tray) | mm | 2745 | 2975 |
Turning radius | mm | 1775 | 1945 |
Walking speed | km/h | 7.5/8 | |
Lifting speed | mm/s | 150/260 | |
Descent speed | mm/s | 300/160 | 350/160 |
Gradient | % | 8/10 | 6/8 |
Drive motor power | kw | 4.5 | 6.5 |
Lifting motor power | kw | 6.3 | 8.6 |
Battery voltage/ capacity | v/ah | 48/400 | 48/420 |
Battery weight | kg | 650 | 700 |
Vehicle weight | kg | 3500 | 3650 |
Steering type | Electronic transformation | ||
Parking brake type | Electromagnetic braking |
