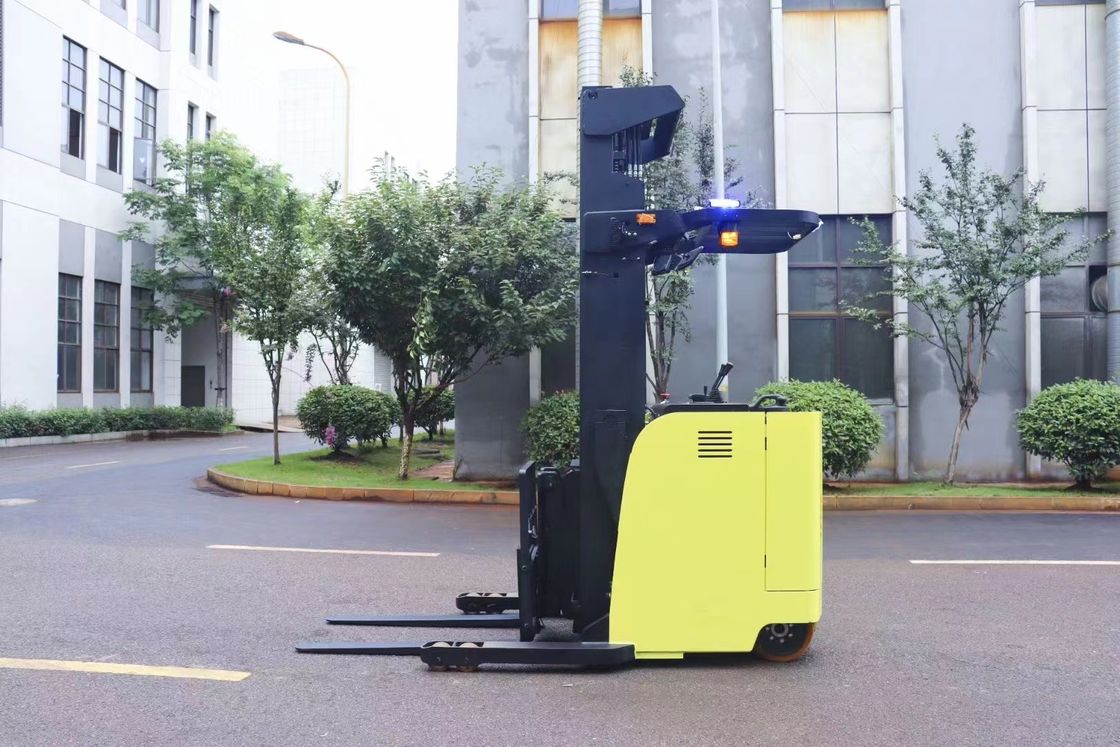

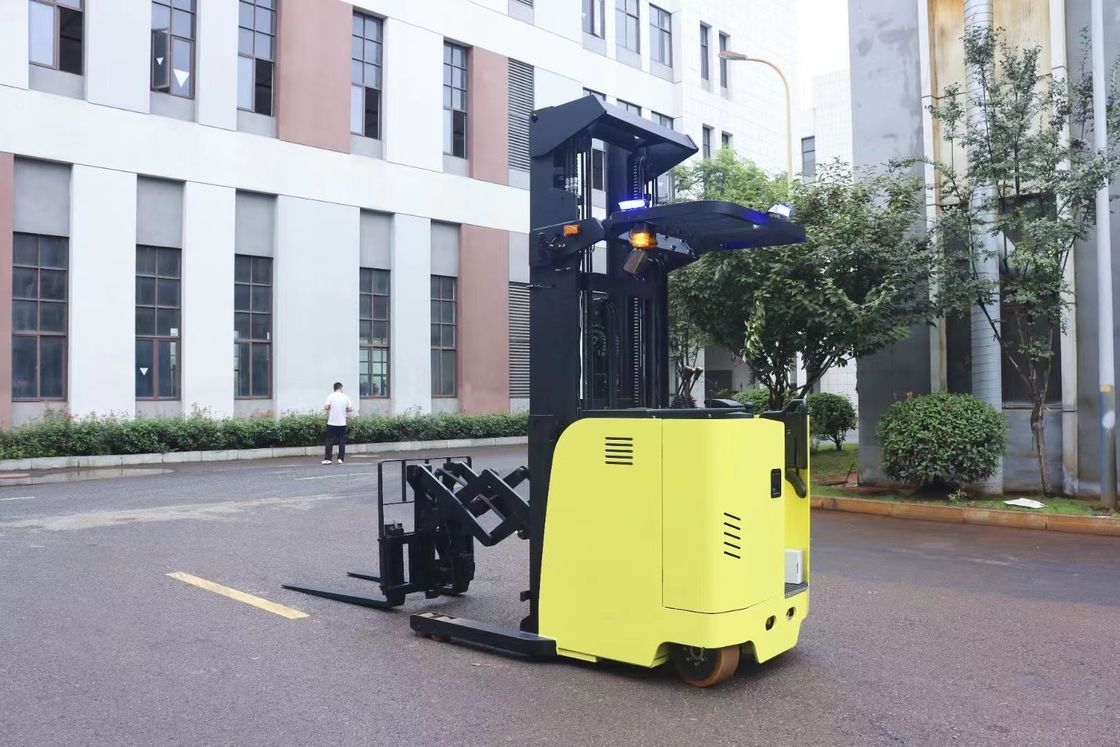

Side Station Type 1600 KG Electric Double Extension Forward Shift Forklift  For Cold Chain Logistics  And Port Timinal

Side Station Type 1600 KG Electric Double Extension Forward Shift Forklift For Cold Chain Logistics And Port Timinal

  • Highlight

    Port Timinal Double Extension Forklift

    ,

    1600 KG Double Extension Forklift

    ,

    Cold Chain Logistics Double Extension Forklift

  • Rated Load Capacity
    1600 KG
  • Lifting Height
    6000 Mm
  • Fork Lenght
    1070 Mm
  • Forward Distance
    1000 Mm
  • Forward Tilt And Backward Tilt
    3/5 Degree
  • Battery Capacity
    48V400AH
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD20
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    30 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Side Station Type 1600 KG Electric Double Extension Forward Shift Forklift For Cold Chain Logistics And Port Timinal

Double extension forward shift forklifts are most widely used in the following industries:



  • Retail and e-commerce warehousing
  • In large retail enterprises or e-commerce storage centers, where shelves are dense and aisles are narrow, double extension forward forklifts can adapt well to this environment, improve space utilization and operational efficiency.
  • Manufacturing warehousing
  • Manufacturing enterprises usually have a large inventory of raw materials, semi-finished products, and finished products, and double extension forward forklifts can flexibly and efficiently handle and manage these goods.
  • Cold chain logistics
  • The space of the refrigerated warehouse is narrow, and there are high requirements for the accuracy and efficiency of cargo handling. The double extension forward forklift takes advantage here.


Double extension forward forklift
Rated load capacity: 1600kg
Lifting height: 6000mm
Fork length: 1070mm
Forward distance: 1000mm
Forward tilt and backward tilt: 3/5 °
Battery capacity: 48V420AH
Charging voltage: 110V
Curtis control system
Electronic steering side station type
Wireless camera monitor



Model   CSD16GC
Rated load kg 1600
Maximum lifting height mm 6000
Load center   500
Tire configuration   Polyurethane wheel
Operation mode   Seated type
Mast tilt angle   2/4
Fork size mm 1070*120*40
Fork adjustment range mm 260-720
Mast forward movement distance mm 550
Mast type   Triplex full free mast
Overall length mm 2480
Overall width mm 1100
Height of mast mm 2655
Max. height of fork lifting (including gear rack) mm 6985
Turning radius mm 1755
Height of roof protection frame mm 2210
Minimum stacking channel mm 2850 (1000*1000mm pallet)
Minimum ground clearance mm 70
Maximum driving speed km/h 4.0/5.0
Rising speed mm/s 90/140
Gradeability % ≤5
Total weight kg 2900
Drive wheel mm 230*90
Front wheel mm 210*85
Auxiliary wheel mm 150*50
Battery voltage/ capacity v/ah 24/280
Lithium battery charger v/ah 24/40
Lifting motor kw 3.0
Drive motor kw 2.2
Travel speed regulation mode   Hall accelerator
Braking mode   Electromagnetic braking
Steering mode   Electric steering


FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the new which means has Novel manufacturer and professional produce of electric forklift for more than
10 years.

Q2: How about the delivery time?
A2: About 20-30 days based on different model.
For some standard products, we may have stock and could delivery immediately.

Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.

Q4: Can you provide OEM and ODM service?
A4: Yes. We can do it .
