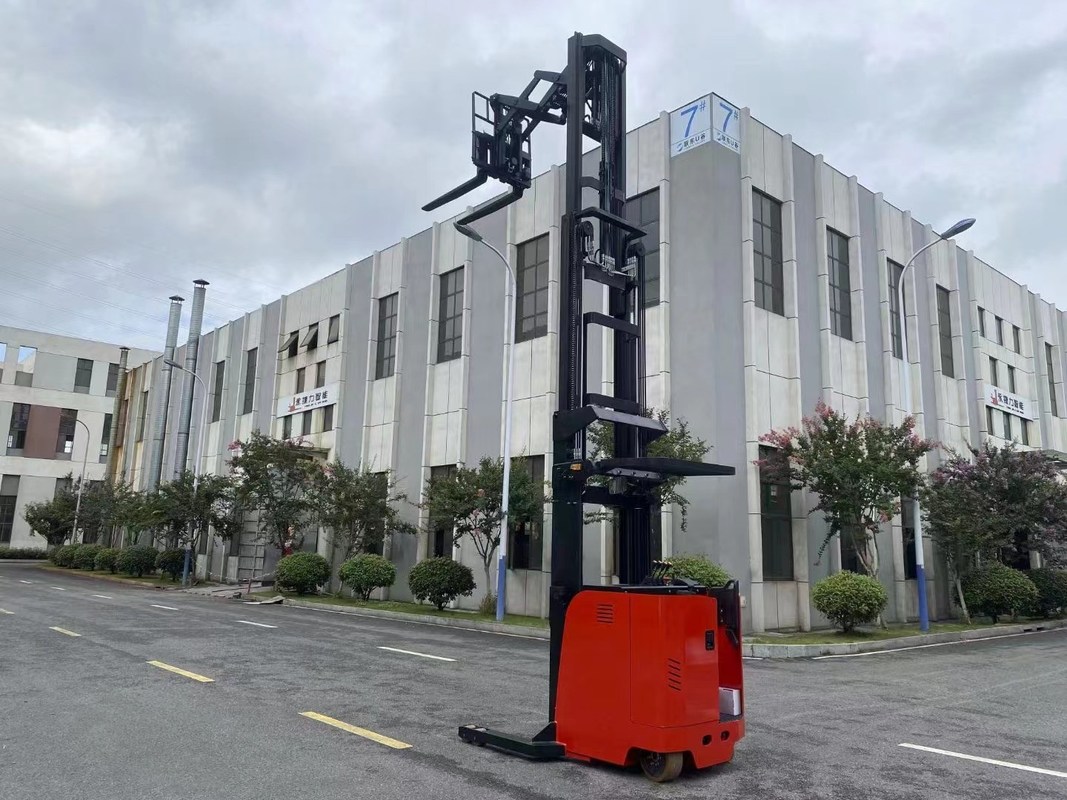

Double extension forward shift forklift is a special type of forklift that has the following main advantages compared to traditional forklifts:
Improve space utilization
Traditional forklifts require a certain amount of space to be left in front for loading and unloading operations. The double extension forward moving forklift can extend the fork to the front of the shelf, greatly reducing the operating space and improving the space utilization rate of the warehouse.
Improve homework efficiency
The double extension forward forklift can accurately place goods in the target position, reducing the need for multiple adjustments. This not only improves the efficiency of a single operation, but also reduces the distance and time traveled by forklifts.
Enhance security
Compared to traditional forklifts, double extension forward moving forklifts have a more stable operating posture, and the operator's vision is also wider, which is conducive to timely detecting changes in the surrounding environment and improving safety.
Suitable for narrow spaces
Due to its forward design, the double extension forward forklift can operate flexibly in narrow aisles or corridors, and can efficiently complete loading and unloading tasks even in confined spaces.
Balancing multiple types of goods
The double extension forward forklift can flexibly adjust the fork position according to the characteristics of different goods, which can handle standard pallets and irregular goods.
| Model | CSD15GC | |
| Rated load | kg | 1600 |
| Maximum lifting height | mm | 6000 |
| Load center | 500 | |
| Tire configuration | Polyurethane wheel | |
| Operation mode | Seated type | |
| Mast tilt angle | 2/4 | |
| Fork size | mm | 1070*120*40 |
| Fork adjustment range | mm | 260-720 |
| Mast forward movement distance | mm | 550 |
| Mast type | Triplex full free mast | |
| Overall length | mm | 2480 |
| Overall width | mm | 1100 |
| Height of mast | mm | 2655 |
| Max. height of fork lifting (including gear rack) | mm | 6985 |
| Turning radius | mm | 1755 |
| Height of roof protection frame | mm | 2210 |
| Minimum stacking channel | mm | 2850 (1000*1000mm pallet) |
| Minimum ground clearance | mm | 70 |
| Maximum driving speed | km/h | 4.0/5.0 |
| Rising speed | mm/s | 90/140 |
| Gradeability | % | ≤5 |
| Total weight | kg | 2900 |
| Drive wheel | mm | 230*90 |
| Front wheel | mm | 210*85 |
| Auxiliary wheel | mm | 150*50 |
| Battery voltage/ capacity | v/ah | 24/280 |
| Lithium battery charger | v/ah | 24/40 |
| Lifting motor | kw | 3.0 |
| Drive motor | kw | 2.2 |
| Travel speed regulation mode | Hall accelerator | |
| Braking mode | Electromagnetic braking | |
| Steering mode | Electric steering |
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the new which means has Novel manufacturer and professional produce of electric forklift for more than
10 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model.
For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM and ODM service?
A4: Yes. We can do it .
Our products are sold all over the world, you can rest assured.
