Airlift Balanced Electric Forklift Truck Rated Load Capacity  500 KG

Airlift Balanced Electric Forklift Truck Rated Load Capacity 500 KG

  • High Light

    500 KG Electric Forklift Truck

    ,

    Balanced Electric Forklift Truck

    ,

    Airlift Electric Forklift Truck

  • Length Of Inflation Shaft
    900 Mm
  • Power Souce
    AC Motor
  • Standard Battery
    24/V210Ah
  • Fork Size
    850-1250 Mm
  • Rated Load Capacity
    500 Kg
  • Lifting Stroke
    160 Mm
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CBD10
  • Minimum Order Quantity
    1 PC
  • Price
    $2800.00-$3800.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

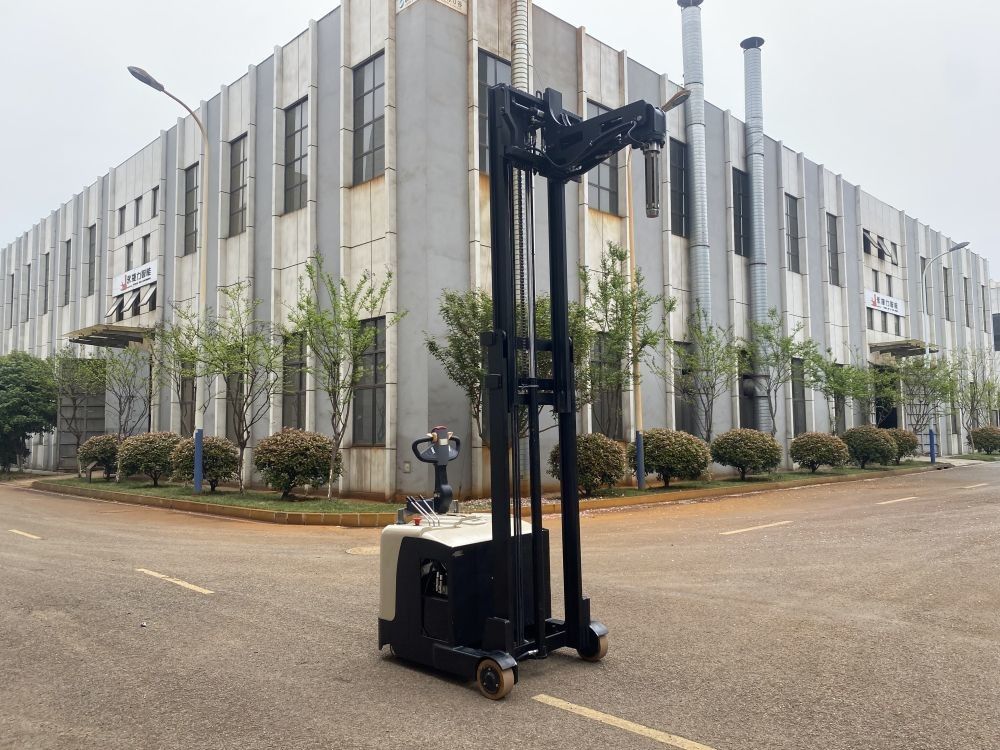

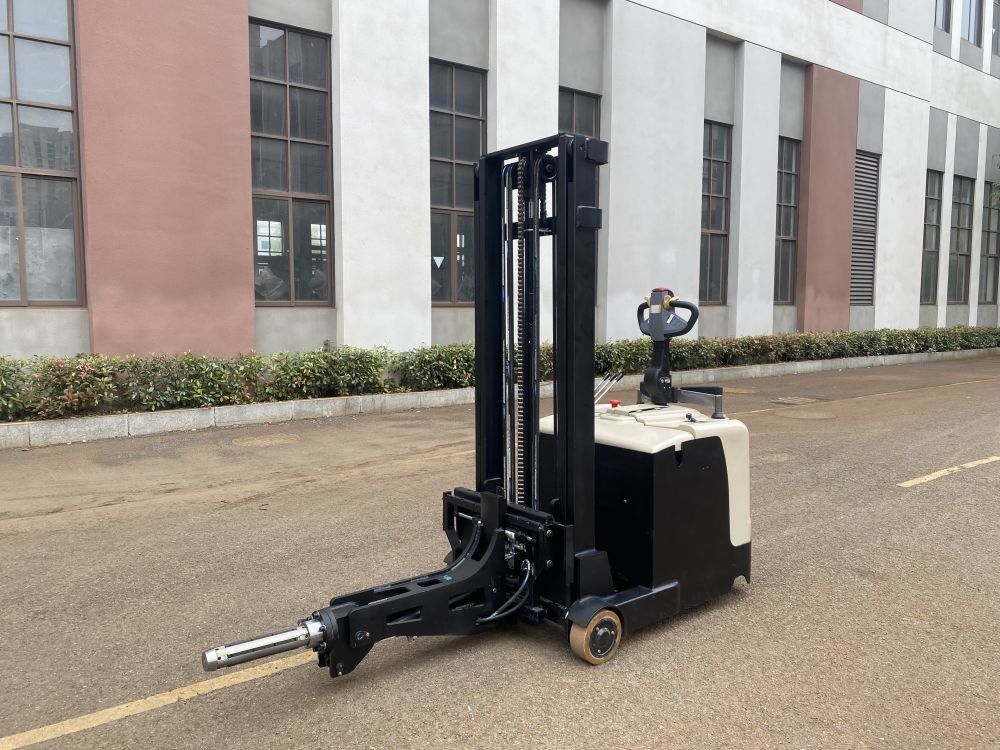

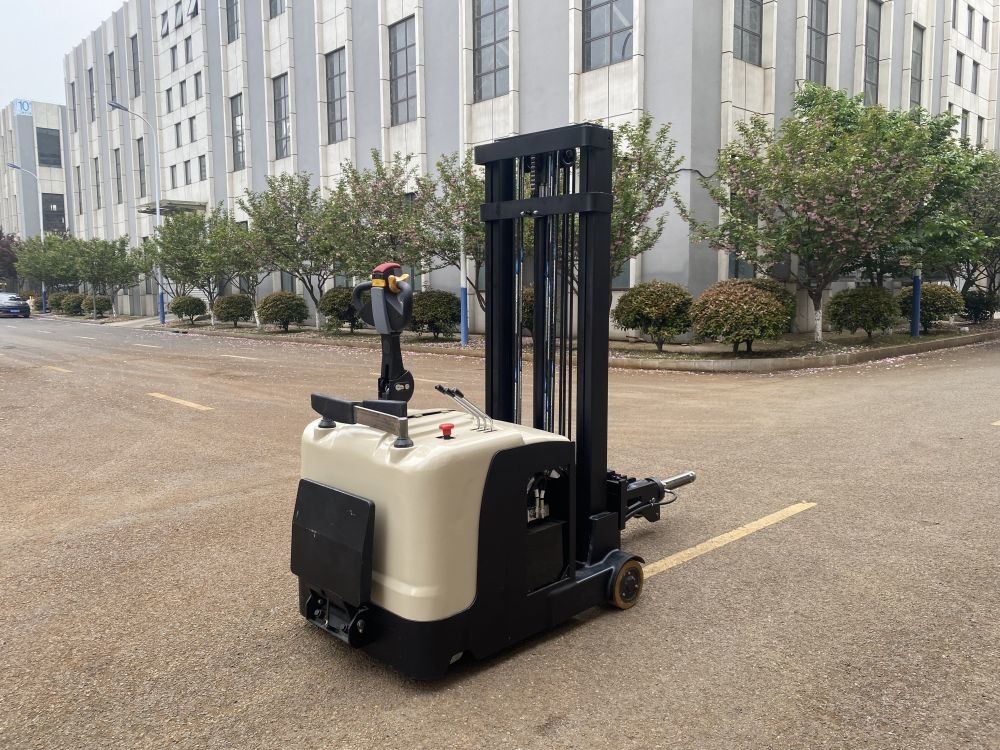

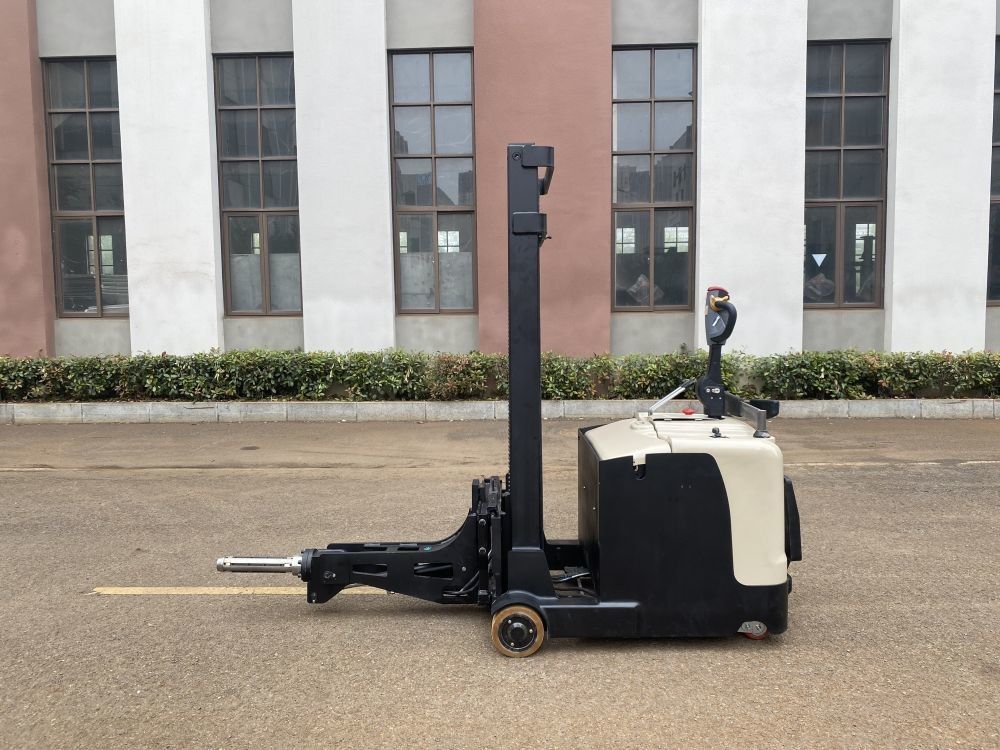

Airlift Balanced Electric Forklift Truck Rated Load Capacity 500 KG

Main future of ​Gas expansion shaft Electric Counterweight forklift truck ;

Gas expansion shaft is a specially designed winding, expansion shaft, expansion shaft, expansion roller, inflation shaft, pressure shaft, etc. The inflatable shaft and inflatable sleeve are extremely convenient to use.

Why choose our products ?

You will obtian the following advantages:



Advantage:

  • Wide angle view, high-strength shock absorption mast
  • American CURTIS brand drive control system
  • Vertical drive system
  • Electronic steering, portable, mute
  • Integrated low-noise hydraulic pump
  • Electromagnetic hydraulic valve
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit, integrated thumb switch
  • Body damping system



FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 20 years.



Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you provide OEM service?

A4: Yes.



Model   CDD050
Power type   Electric
Operation mode   Walking type
Rated load kg 500
Load center distance mm 500
Tire type (front/ rear)   Polyurethane
Number of tires   4/1X+1
Mast type   Duplex mast
Standard lifting height mm 3000
Height of mast closed mm 2080
Mast height during lifting mm 3565
Minimum ground clearance of cargo depot mm 85
Overall length mm 2030
Wheelbase mm 1430
Overall width mm 850
Track width (front/ rear) mm 490/545
Fork specifications mm 1150*190*65
Fork side outer distance mm 680/560
Turning radius mm 1645
Channel width (1200x1000 pallets, 1200 horizontal) mm 2515
Travel speed (full load/ no load) km/h 4.0/4.5
Lifting speed (full load/ no load) mm/s 80/125
Descent speed (full load/ no load) mm/s 160/105
Gradient (full load/ no load) % 6/10
Drive motor power kw 1.5
Type of lifting motor   DC
Lifting motor power kw 2.2/3.0
Battery voltage/ capacity v/ah 24/100
Battery weight kg 75
Service weight (incl. battery) kg 850
Steering type   Manual operation
Parking brake type   Electromagnetism
Parking brake operation mode   Handle operation
