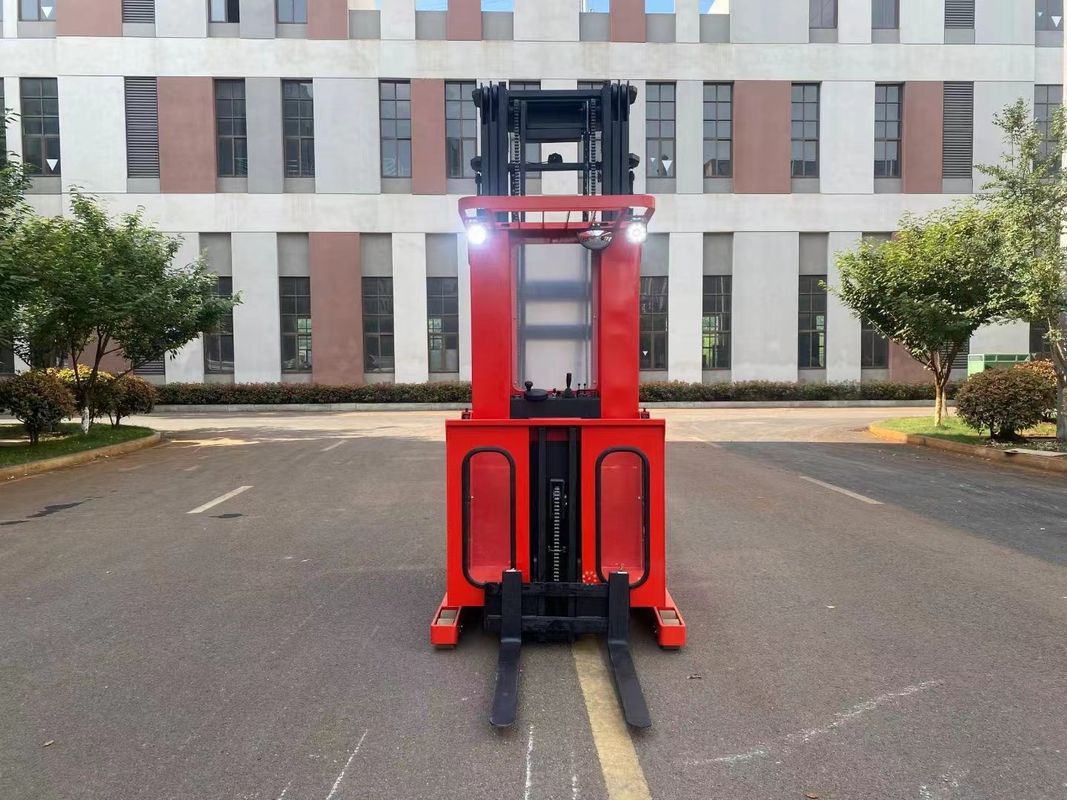

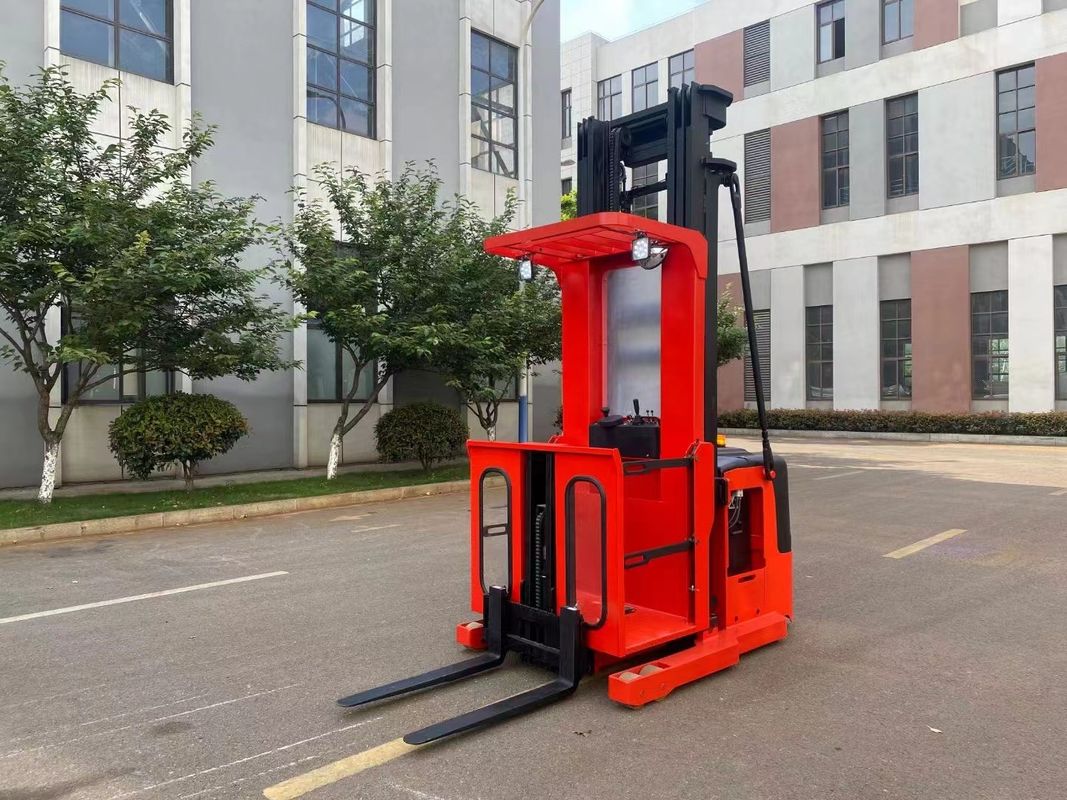

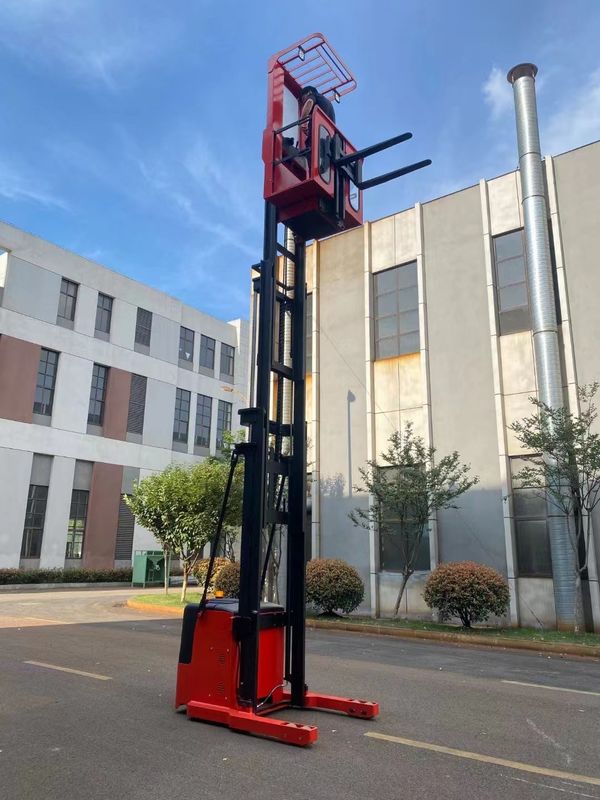

Load Capacity 1000 kg Electric Order Picker Lifting on Platform Human Mounted Electronic Steering

Load Capacity 1000 kg Electric Order Picker Lifting on Platform Human Mounted Electronic Steering

  • High Light

    Human Mounted Electric Order Picker

    ,

    Electronic Steering Electric Order Picker

    ,

    1000 kg Electric Order Picker

  • Rated Load Capacity
    1000 Kg
  • Lifting Height
    9000 Mm
  • Free Lifting
    600 Mm
  • Fork Length
    920 Mm
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CXD10-90
  • Minimum Order Quantity
    1 PC
  • Price
    $2800.00-$3800.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Load Capacity 1000 kg Electric Order Picker Lifting on Platform Human Mounted Electronic Steering

Main Features:



The order picker is a small-sized forklift truck that’s larger than a walkie stacker and is capable of bearing more weight.

Order pickers can typically retrieve and replace stacked items from heights of between 3000 mm to 12000 mm, which

lift people to rise up .









Model   CXD10
Rated lifting capacity kg 1000
Load center mm 450
Power type   Electric
Operator type   Standing
Total weight   3150
Drive wheel mm φ230×75
Front wheel mm φ150×90
Auxiliary wheel   φ130×55
Lifting height mm 9000
Max. lifting height of fork mm 6000
Overall length mm 3065
Overall width mm 1342
Height of mast closed   2885
Maximum height when rising to the maximum mm 8250
Height of roof protection frame mm 2250
Min. ground clearance mm 50
Min. height of operating table from the ground mm 240
Auxiliary lifting height mm 0
Max. lifting height of operating table mm 6240
Fork length mm 920*120*40
Fork outer width mm 680
Turning Radius mm 1832
Right angle channel (1200 horizontal x 1000)   3370





FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are new manufacturer in China but have more experience of electric forklift for more than 5 years .



Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you provide ODEand OEM service?

A4: Yes.
