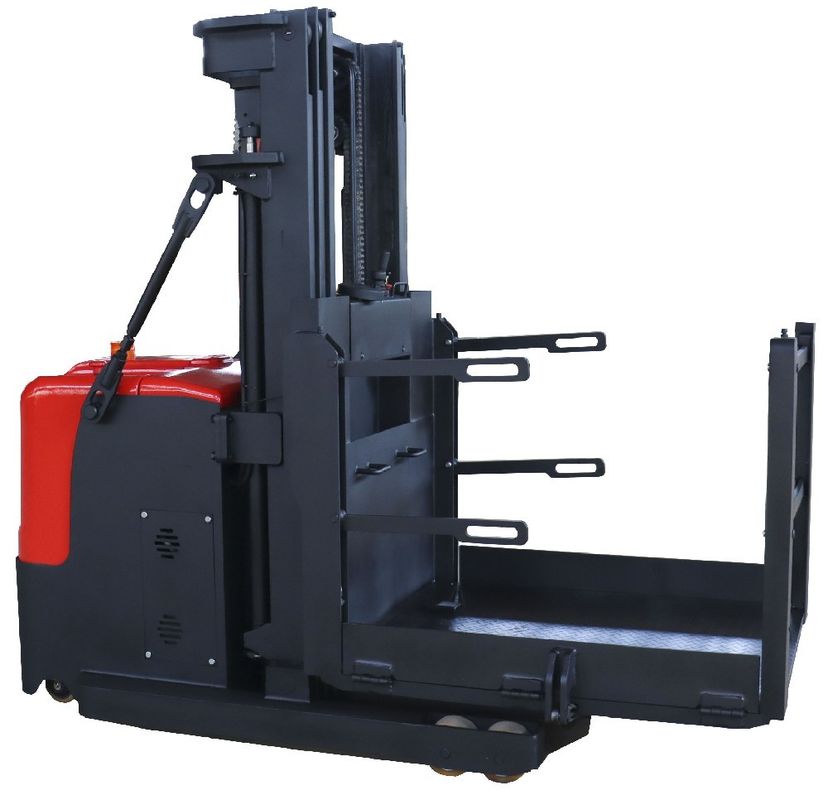

1500 KG Order Picking Forklift Truck American CURTIS Brand Drive Control System Electromagnetic Hydraulic Valve
Why choose our products ? You will obtian the following advantages:
Advantage:
Security:
AC EPS
Low noise hydraulic
Optional lithium battery
Model | CXD15-60 | |
Rated lifting capacity | kg | 1500 |
Load center | mm | 450 |
Power type | Electric | |
Operator type | Standing | |
Total weight | 3150 | |
Drive wheel | mm | φ230×75 |
Front wheel | mm | φ150×90 |
Auxiliary wheel | φ130×55 | |
Lifting height | mm | 6000 |
Max. lifting height of fork | mm | 6000 |
Overall length | mm | 3065 |
Overall width | mm | 1342 |
Height of mast closed | 2885 | |
Maximum height when rising to the maximum | mm | 8250 |
Height of roof protection frame | mm | 2250 |
Min. ground clearance | mm | 50 |
Min. height of operating table from the ground | mm | 240 |
Auxiliary lifting height | mm | 600(optional) |
Max. lifting height of operating table | mm | 6240 |
Fork length | mm | 920*120*40 |
Fork outer width | mm | 680 |
Turning Radius | mm | 1832 |
Right angle channel (1200 horizontal x 1000) | 3370 | |
Traveling speed (full load/ no load) | km/h | 4/5 |
Climbing gradient | % | 0 |
Braking mode | Electromagnetism | |
Drive motor | v/kw | 24/2.2 |
Lifting motor | v/kw | 24/3.0 |
Battery | v/ah | 24/420 |
Lifting speed (no load/ full load) | mm/s | 115/90 |
Descent speed (no load/ full load) | mm/s | 125/230 |
