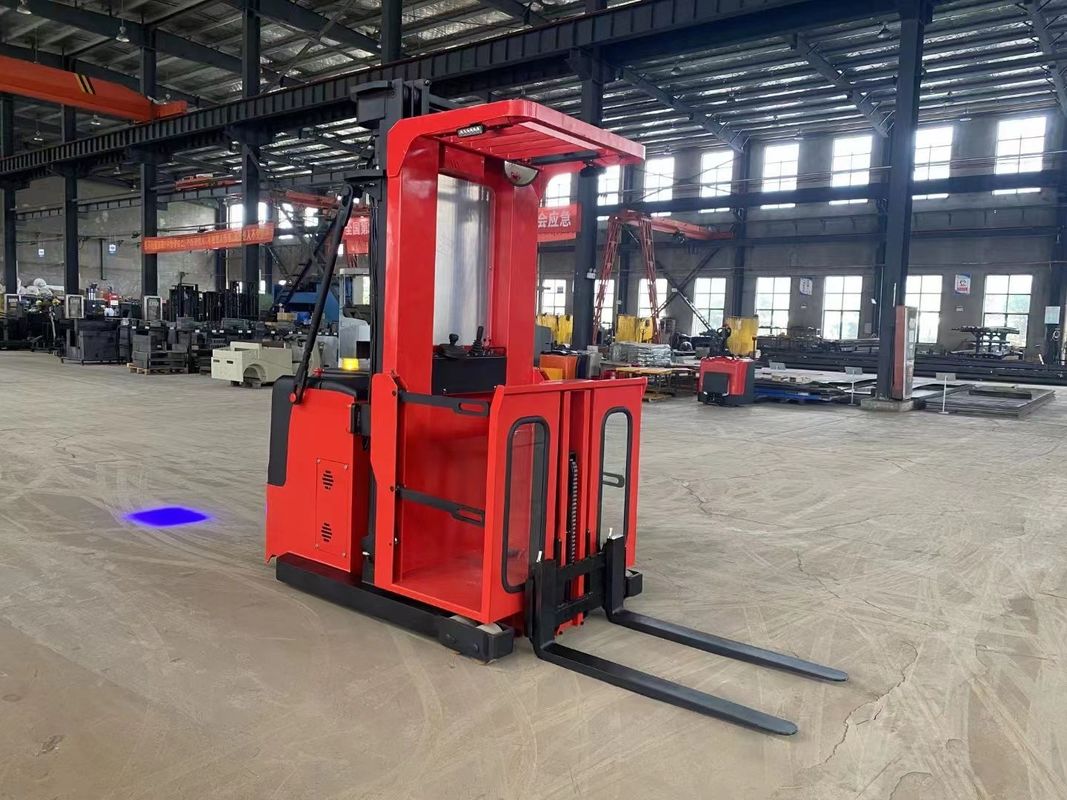

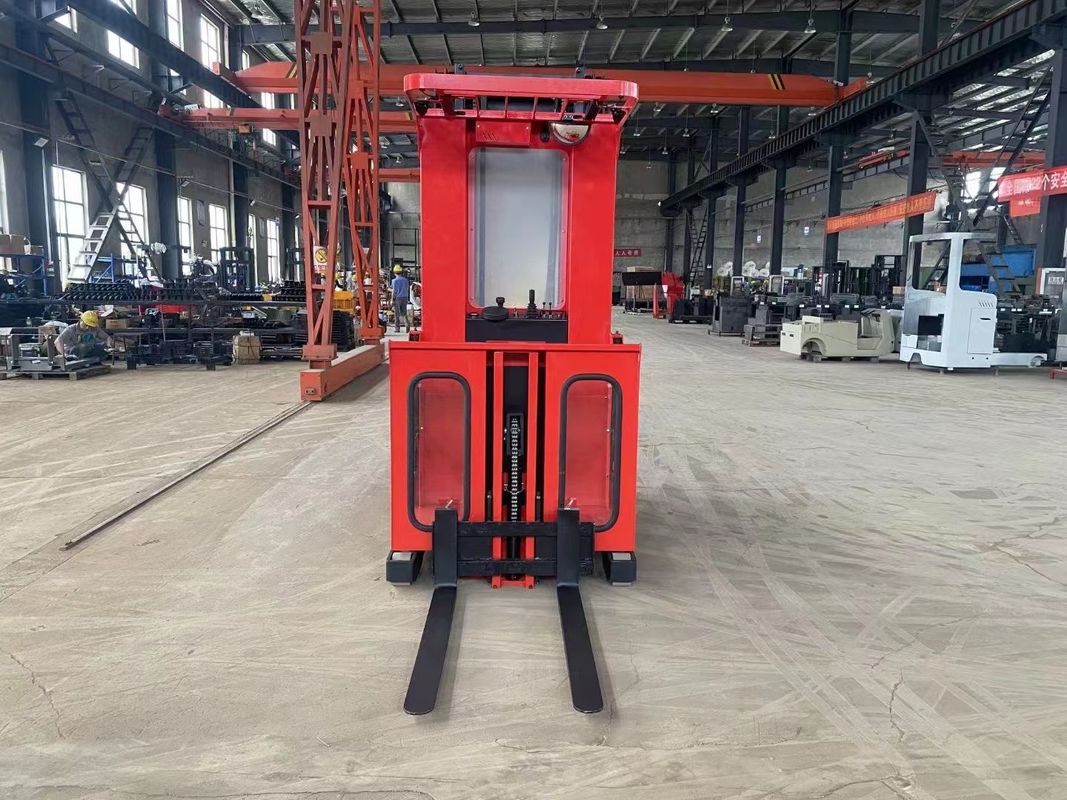

1000 KG High Reach Order Picker High Shelf Light Cargo CE approval
-
Highlight
High Reach Order Picker High Shelf
,1000 KG High Reach Order Picker
-
Drive MotorAC
-
Power SupplyBattery
-
Tyre MaterialPolyurethane
-
Steering TypeElectronic Steering
-
Brake SystemElectromagnetic
-
Brake ModeLever Operation
-
Place of OriginANHUI, CHINA
-
Brand NameYONGJIELI
-
CertificationCE
-
Model NumberCXD10-45
-
Minimum Order Quantity1 SETS
-
PriceUSD2470.00 - USD4700.00
-
Packaging DetailsEXPORT PACKING
-
Delivery Time10 WORK DAYS
-
Payment TermsL/C, T/T, D/A, D/P, Western Union
-
Supply Ability50 SETS PER MONTH
1000 KG High Reach Order Picker High Shelf Light Cargo CE approval
Rated Load 1000 KG Order Picking Forklift Truck High Shelf and Light Cargo Pharmaceuticals And Electronics Industry
Why choose our products ? You will obtian the following advantages:
Advantage:
- Wide angle view, high-strength shock absorption mast
- American CURTIS brand drive control system
- Vertical drive system
- Electronic steering, portable, mute
- Integrated low-noise hydraulic pump
- Electromagnetic hydraulic valve
- AC drive, brushless, motor maintenance free
- Electromagnetic and regenerative braking system
- Lifting limit, integrated thumb switch
- Body damping system
Security:
- Curve automatic deceleration device
- Drive stepless speed regulation
- Controller multiple brake protection system
- Leisure backrest/ emergency braking device
AC EPS
Low noise hydraulic
Optional lithium battery
| Model | CXD10-45 | |
| Rated lifting capacity | kg | 1000 |
| Load center | mm | 450 |
| Power type | Electric | |
| Operator type | Standing | |
| Total weight | 2600 | |
| Drive wheel | mm | φ230×75 |
| Front wheel | mm | φ150×90 |
| Auxiliary wheel | φ130×55 | |
| Lifting height | mm | 4260 |
| Max. lifting height of fork | mm | 4860 |
| Overall length | mm | 2830 |
| Overall width | mm | 1160 |
| Height of mast closed | 2310 | |
| Maximum height when rising to the maximum | mm | 6510 |
| Height of roof protection frame | mm | 2250 |
| Min. ground clearance | mm | 50 |
| Min. height of operating table from the ground | mm | 240 |
| Auxiliary lifting height | mm | 600(optional) |
| Max. lifting height of operating table | mm | 4500 |
| Fork length | mm | 920*100*40 |
| Fork outer width | mm | 680 |
| Turning Radius | mm | 1735 |
| Right angle channel (1200 horizontal x 1000) | 3285 | |
| Traveling speed (full load/ no load) | km/h | 4/5 |
| Climbing gradient | % | 0 |
| Braking mode | Electromagnetism | |
| Drive motor | v/kw | 24/1.6 |
| Lifting motor | v/kw | 24 /3.0 |
| Battery | v/ah | 24/360 |
| Lifting speed (no load/ full load) | mm/s | 115/100 |
| Descent speed (no load/ full load) | mm/s | 125/200 |
