Walkie Counterbalance Electric Stacker With Smart Charger And Long-Life Inductive Switch

Walkie Counterbalance Electric Stacker With Smart Charger And Long-Life Inductive Switch

  • High Light

    Walkie Counterbalance Electric Stacker

    ,

    Electric Walkie Counterbalance Stacker

    ,

    Electric Stacker With Smart Charger

  • Name
    Electric Pallet Forklift
  • Operation Mode
    Walking Type
  • Tire Type (front/ Rear)
    Polyurethane
  • Rotation Angle
    180
  • Liftiing Height
    2600 Mm
  • Arm Tension Range
    500-800 Mm
  • Lithium Battery
    25.0V300AH
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD15
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

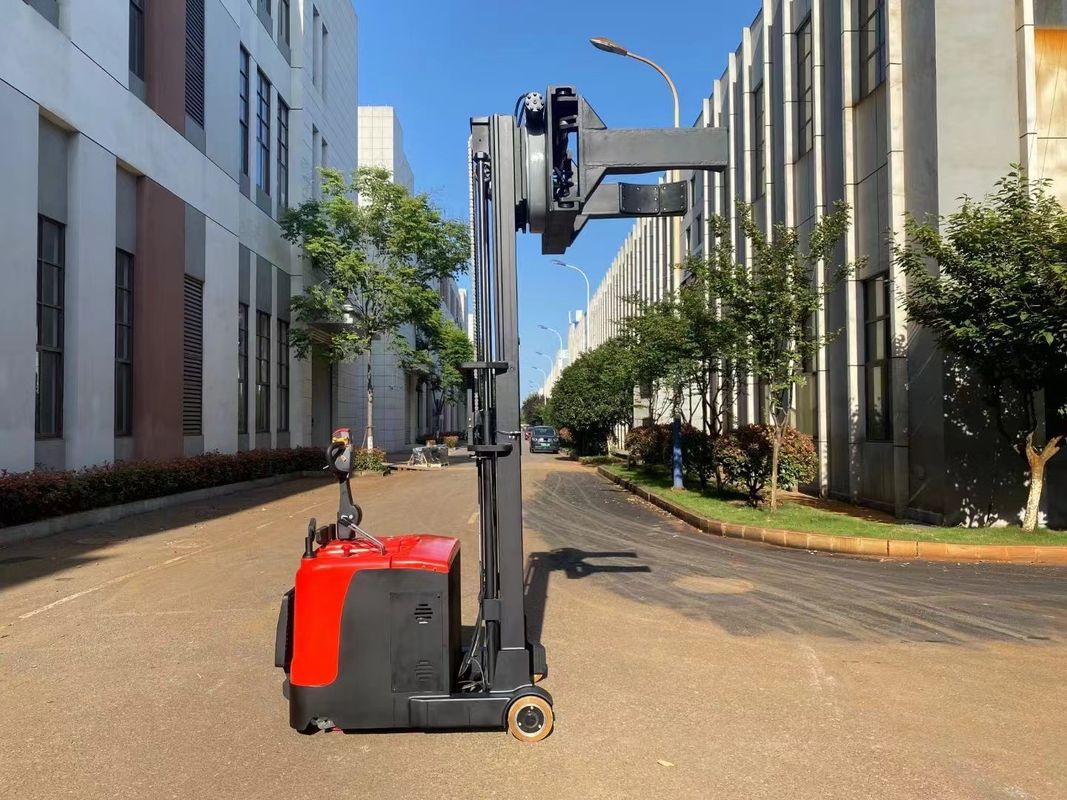

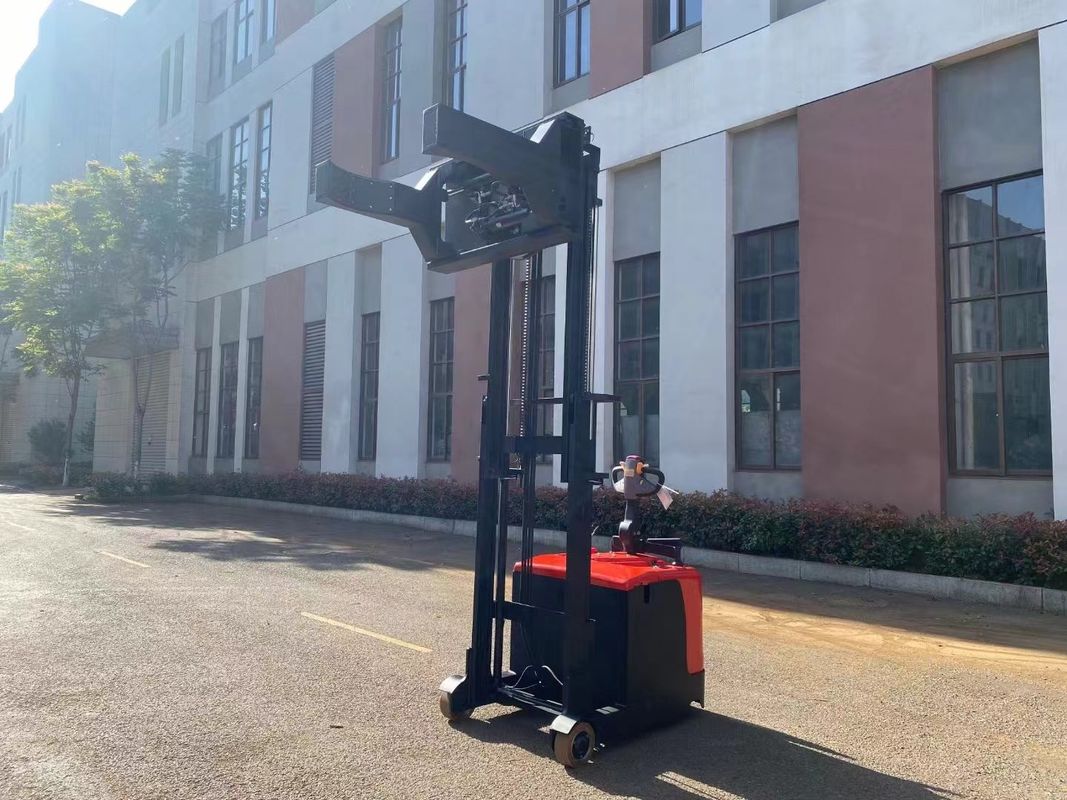

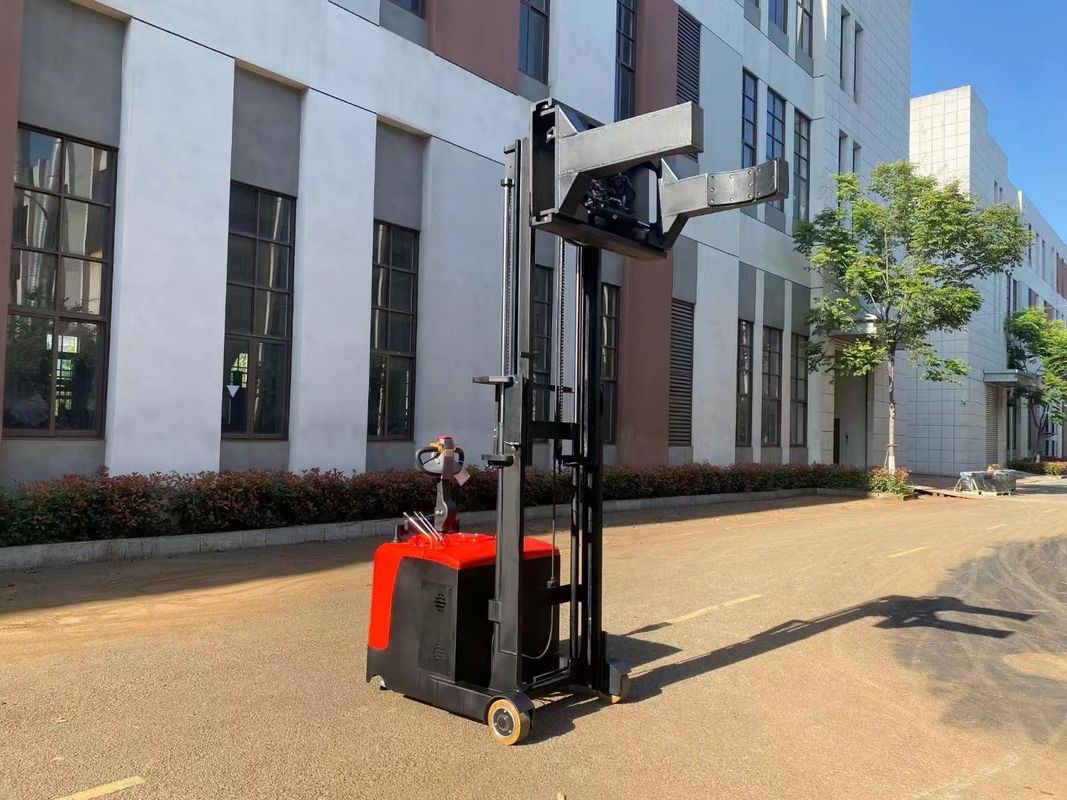

Walkie Counterbalance Electric Stacker With Smart Charger And Long-Life Inductive Switch

Electric Walkie Counterbalance Stacker With Smart Charger

Walkie Counterbalance Stacker adopts the latest permanent magnet drive technology with strong power and maximum

load capacity of 1000 Kg.
●Short distance handling;
● short distance stacking;
● Suitable for floor work, closed trays, low height of the tray from the ground, and no legroom at the bottom of the shelf.



Advantage:

  • Double oil cylinders, wide view mast
  • American CURTIS brand drive control system
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Germany Bucher brand low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long-life inductive switch
  • Body damping system, pedal and handle damping



Model   CDD15-30 CDD25-30
Power type   Electric
Operation mode   Stand-on type
Rated load kg 1500 2500
Load center distance mm 500
Tire type (front/ rear)   Polyurethane
Number of tires   4/1X+2
Mast type   Duplex mast
Standard lifting height mm 3000
Free lifting height mm 0
Height of mast closed mm 2000
Height of mast open mm 3490
Min. ground clearance of fork mm 90
Overall length pedal (deployment/ retraction) mm 2515/ 2215 2525/2265
Wheelbase mm 1390
Overall width mm 850 850/12300
Track width (front/ rear) mm 490/604 505/1100
Fork specifications mm 1150*190*65 1150*205*65
Fork side outer distance mm 685/ 560 715
Turning radius pedal deployment/ retraction mm 2125/1715 2125/1720
Travel speed (full load/ no load) km/h 4.8/5.0 4.0/5.0
Lifting speed (full load/ no load) mm/s 100/150 80/125
Descent speed (full load/ no load) mm/s 150/105 160/105
Gradient (full load/ no load) % 6/ 8 5/ 8
Drive motor type   AC
Drive motor power kw 1.5 2.2
Type of lifting motor   DC
Lifting motor power kw 2.2 3
Battery voltage/ capacity v/ah 24/210
Battery weight kg 200
Vehicle weight (including battery) kg 1270 1300
Steering type   Electronic steering
Parking brake type   Electromagnetism
Parking brake operation mode   Handle operation



We accepts customization of various non-standard forklifts





FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 5  years.



Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products,

      we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you provide OEM and ODM service?

A4: Yes.
