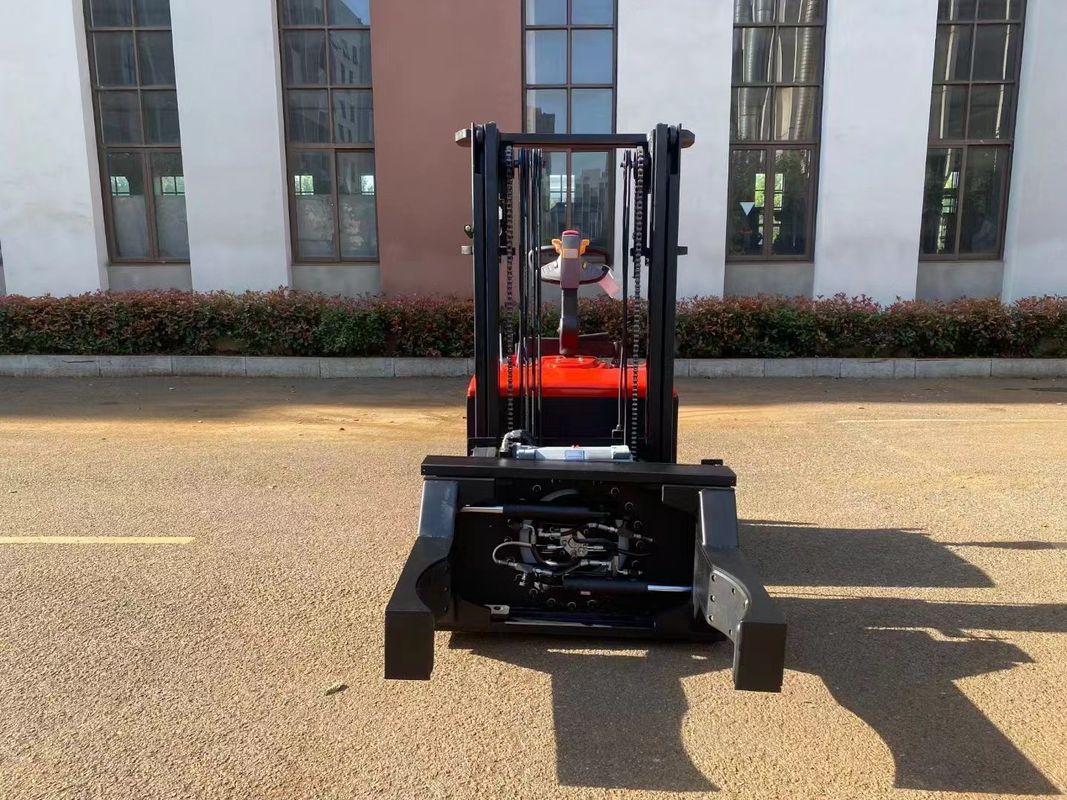

Electric Walkie Counterbalance Clamp Truck  1000 kgs With Smart Charger

Electric Walkie Counterbalance Clamp Truck 1000 kgs With Smart Charger

  • High Light

    Electric Walkie Counterbalance Clamp Truck


    1000 kgs Counterbalance Clamp Truck


    Counterbalance Clamp Truck With Smart Charger

  • Name
    Electric Pallet Forklift
  • Operation Mode
    Walking Type
  • Tire Type (front/ Rear)
  • Rotation Angle
  • Liftiing Height
    2600 Mm
  • Arm Tension Range
    500-800 Mm
  • Lithium Battery
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability

Electric Walkie Counterbalance Clamp Truck 1000 kgs With Smart Charger

Electric Walkie Counterbalance Stacker With Smart Charger

Walkie Counterbalance Stacker adopts the latest permanent magnet drive technology with strong power and maximum

load capacity of 1000 Kg.
●Short distance handling;
● short distance stacking;
● Suitable for floor work, closed trays, low height of the tray from the ground, and no legroom at the bottom of the shelf.



  • Double oil cylinders, wide view mast
  • American CURTIS brand drive control system
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Germany Bucher brand low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long-life inductive switch
  • Body damping system, pedal and handle damping


  • Curve automatic deceleration device
  • Automatic deceleration of fork in high cargo position
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device
  • Cylinder safety shut-off valve

              AC EPS

Low noise hydraulic

High automatic deceleration

Optional lithium battery


Model   CDD15-30 CDD25-30
Power type   Electric
Operation mode   Stand-on type
Rated load kg 1500 2500
Load center distance mm 500
Tire type (front/ rear)   Polyurethane
Number of tires   4/1X+2
Mast type   Duplex mast
Standard lifting height mm 3000
Free lifting height mm 0
Height of mast closed mm 2000
Height of mast open mm 3490
Min. ground clearance of fork mm 90
Overall length pedal (deployment/ retraction) mm 2515/ 2215 2525/2265
Wheelbase mm 1390
Overall width mm 850 850/12300
Track width (front/ rear) mm 490/604 505/1100
Fork specifications mm 1150*190*65 1150*205*65
Fork side outer distance mm 685/ 560 715
Turning radius pedal deployment/ retraction mm 2125/1715 2125/1720
Travel speed (full load/ no load) km/h 4.8/5.0 4.0/5.0
Lifting speed (full load/ no load) mm/s 100/150 80/125
Descent speed (full load/ no load) mm/s 150/105 160/105
Gradient (full load/ no load) % 6/ 8 5/ 8
Drive motor type   AC
Drive motor power kw 1.5 2.2
Type of lifting motor   DC
Lifting motor power kw 2.2 3
Battery voltage/ capacity v/ah 24/210
Battery weight kg 200
Vehicle weight (including battery) kg 1270 1300
Steering type   Electronic steering
Parking brake type   Electromagnetism
Parking brake operation mode   Handle operation


We accepts customization of various non-standard forklifts




Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 5  years.


Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products,

      we may have stock and could delivery immediately.


Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.


Q4: Can you provide OEM and ODM service?

A4: Yes.
