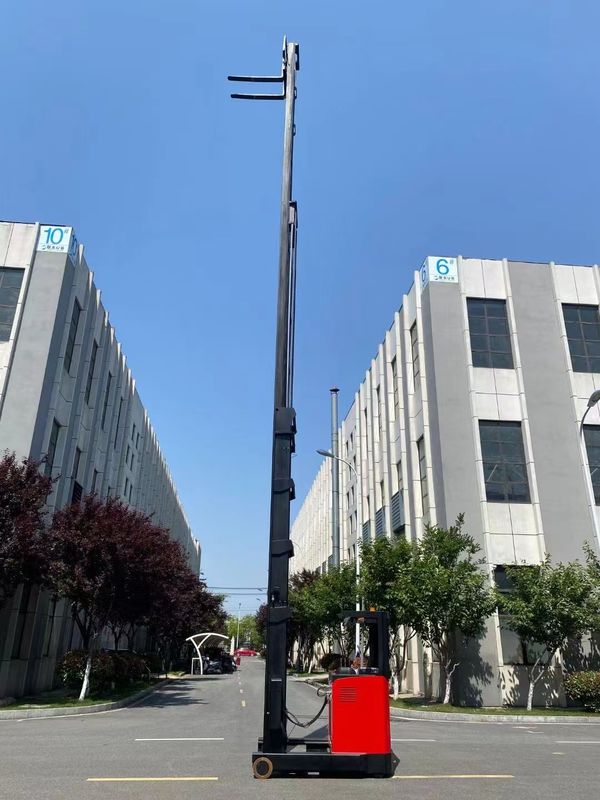

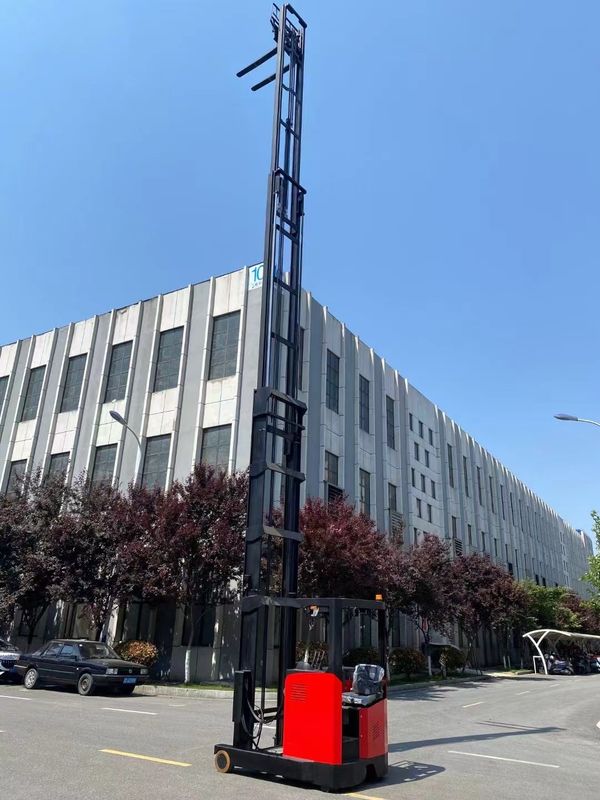

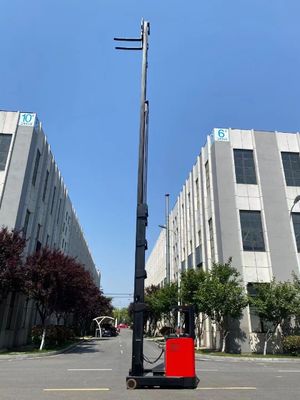

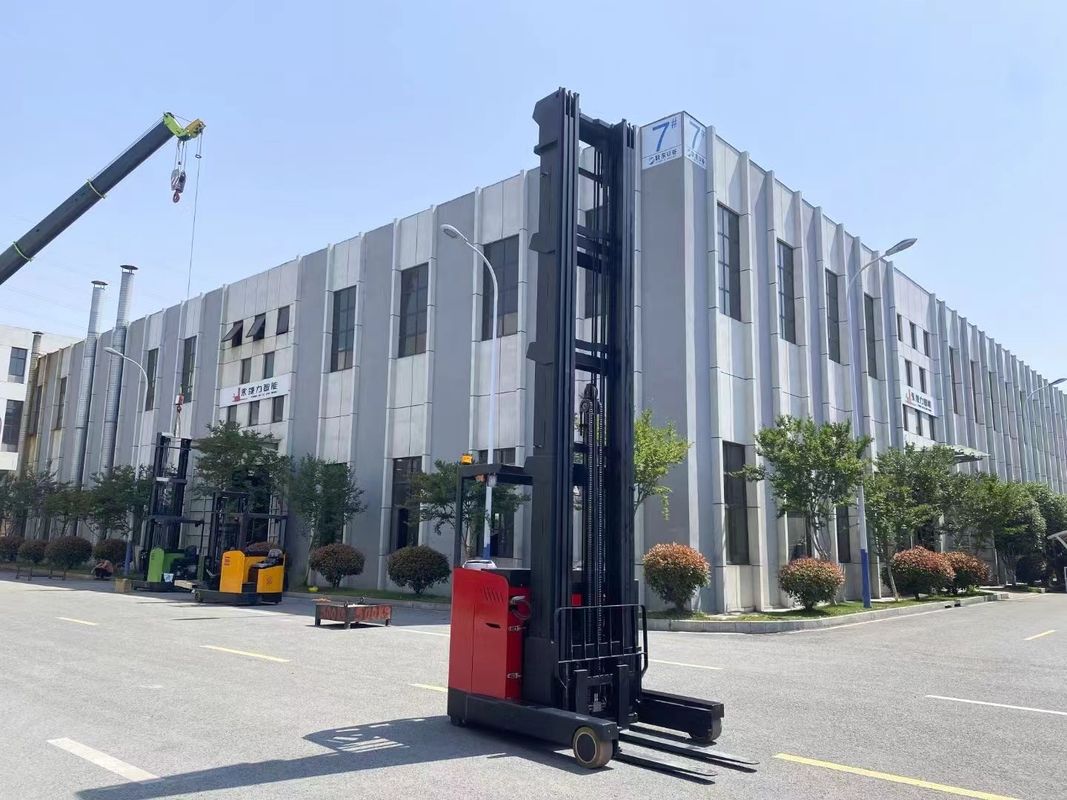

2.5 T Load Capacity Seated Pallet Stacker With 48V 500AH Battery

2.5 T Load Capacity Seated Pallet Stacker With 48V 500AH Battery

  • High Light

    500AH Battery Seated Pallet Stacker


    48V Seated Pallet Stacker


    2.5 T Load Seated Pallet Stacker

  • Name
    Electric Pallet Forklift
  • Power Type
  • Operation Mode
  • Parking Brake Type
  • Tire Type (front/ Rear)
  • Drive Motor
  • Power Supply
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability

2.5 T Load Capacity Seated Pallet Stacker With 48V 500AH Battery



  • Wide angle view, high-strength shock absorption mast
  •  CURTIS brand drive control system ,
  • Vertical drive system
  • Electronic steering, portable, mute
  • Integrated low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long-life inductive switch
  • Body damping system



  • Curve automatic deceleration device
  • Automatic deceleration of fork in high cargo position
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device
  • Cylinder safety shut-off valve


Forward moving forklift
Rated load capacity: 2500mm
Lifting height: 13500mm
Fork length: 1220mm
Battery capacity: 48V500AH
Curtis controller
Three section fully free gantry
Electronic steering high position speed limit
Wuxi camera monitor



Model   CSD15GC
Rated load kg 3000
Maximum lifting height mm 6000
Load center   500
Tire configuration   Polyurethane wheel
Operation mode   Seated type
Mast tilt angle   2/4
Fork size mm 1070*120*40
Fork adjustment range mm 260-720
Mast forward movement distance mm 550
Mast type   Triplex full free mast
Overall length mm 2480
Overall width mm 1100
Height of mast mm 2655
Max. height of fork lifting (including gear rack) mm 6985
Turning radius mm 1755
Height of roof protection frame mm 2210
Minimum stacking channel mm 2850 (1000*1000mm pallet)
Minimum ground clearance mm 70
Maximum driving speed km/h 4.0/5.0
Rising speed mm/s 90/140
Gradeability % ≤5
Total weight kg 2900
Drive wheel mm 230*90
Front wheel mm 210*85
Auxiliary wheel mm 150*50
Battery voltage/ capacity v/ah 24/280
Lithium battery charger v/ah 24/40
Lifting motor kw 3.0
Drive motor kw 2.2
Travel speed regulation mode   Hall accelerator
Braking mode   Electromagnetic braking
Steering mode   Electric steering




Q1: Are you electric forklift factory?

A1: Yes, we are the new which means has Novel manufacturer and professional produce of electric forklift for more than

10 years.


Q2: How about the delivery time?

A2: About 20-30 days based on different model.

For some standard products, we may have stock and could delivery immediately.


Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.


Q4: Can you provide OEM and ODM service?

A4: Yes. We can do it .
