AGV forklifts are intelligent logistics handling equipment with advantages such as efficiency, accuracy, flexibility, and safety. They are widely used in warehousing, logistics, production lines, and other fields. This article will introduce the principle, characteristics, application scenarios, and development trends of AGV forklifts.

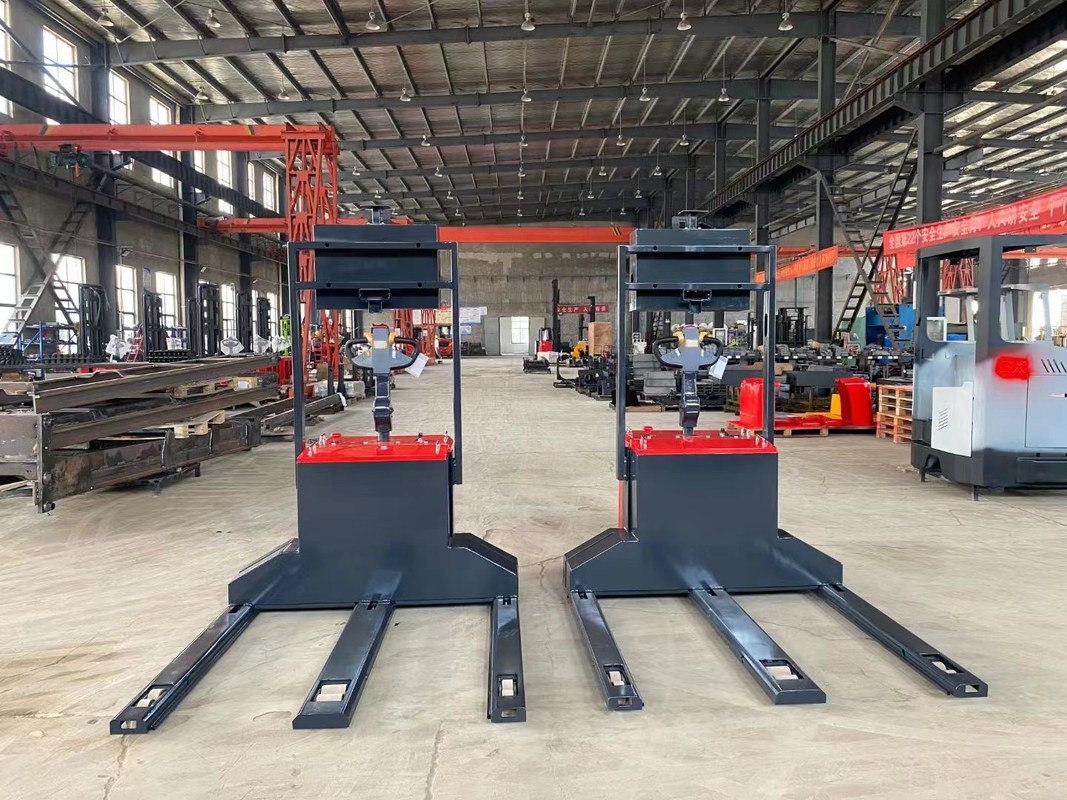

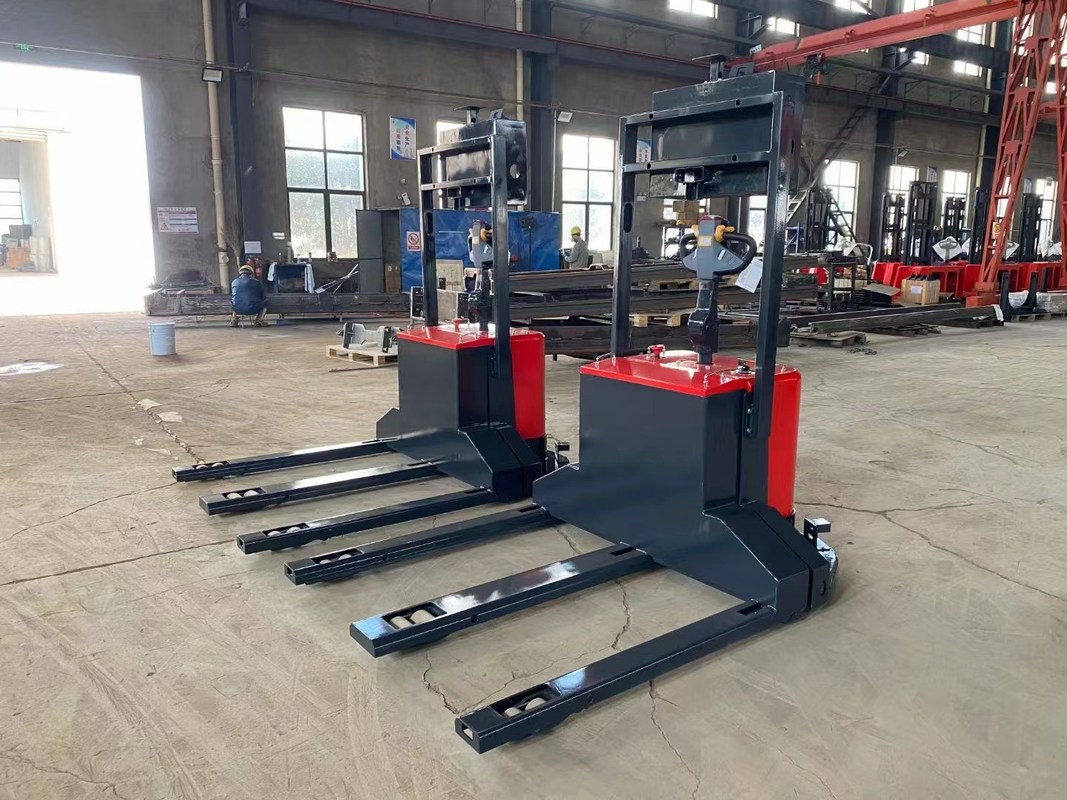

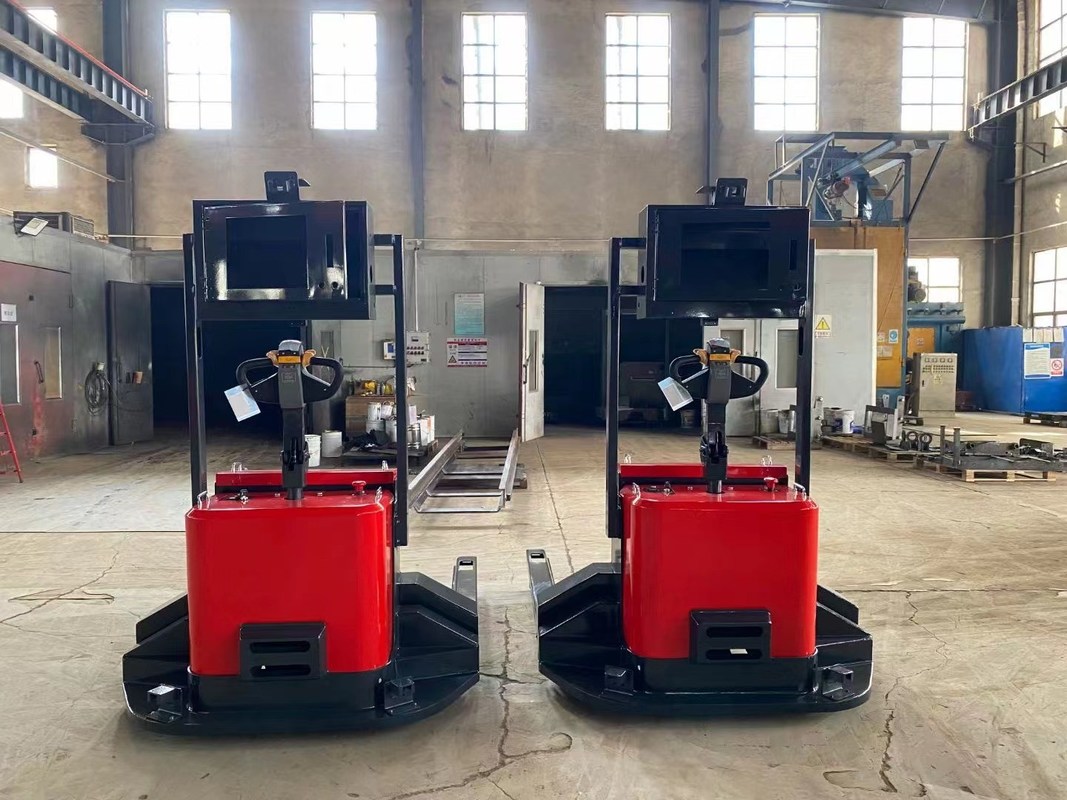

Handling AGV body
Rated load capacity: 2600kg
Number of forks: 3
Fork length: 1250mm
Fork outer width: 1500mm
Lithium battery: 25.6V160AH
CAN communication
Anti slip drive wheel
Curtis controller
| Name | AGV forklift body | |
| Model | CDD20J-16 | |
| Rated load | kg | 2000 |
| Load center distance | mm | 500 |
| wheel base | mm | 895 |
| Vehicle weight | kg | 850 |
| Tire type | Polyurethane | |
| Mast type | Duplex mast | |
| Number of cylinders | piece | 2 |
| Bearing wheel | mm | 85*70 |
| Drive wheel | mm | 230*75 |
| Auxiliary wheel | mm | 100*50 |
| Lifting height | mm | 1600 |
| Overall length | mm | 1600 |
| Overall width | mm | 890 |
| Overall height (including laser fixed seat) | mm | 1950 |
| Fork size | mm | 1150*190*65 |
| Outside width of fork | mm | 780 |
| Min. ground clearance | mm | 29 |
| Turning radius (Wa) | mm | 1140 |
| Right angle stacking channel width (1200*1000, 1200 horizontal) | mm | 2000 (+150) |
| Driving speed (full load/ no load) | km/h | 5/5.5 |
| Lifting speed (full load/ no load) | mm/s | 90/120 |
| Descent speed (full load/ no load) | mm/s | 140/110 |
| Max. climbing capacity(full load/ no load) | 5/8 | |
| Braking mode | Electromagnetic type | |
| Drive motor power | kw | 1.5 |
| Lifting motor power | kw | 2 2 |
| Lithium battery, voltage/ rated capacity | v/ah | 24/160 |
| Battery weight | Electromagnetic braking | |
| Steering system | Electronic steering |
