12000 Meter Electric  Reach Forklift Truck Heavy Duty Electric Pallet Stacker 1000 Kg

12000 Meter Electric Reach Forklift Truck Heavy Duty Electric Pallet Stacker 1000 Kg

  • Highlight

    1000 Kg Double Reach Lift Truck

    ,

    12000 Meter Double Reach Lift Truck

    ,

    Electricity Double Reach Lift Truck

  • Battery_Capacity
    750 Ah
  • Battery_Voltage
    24 Volts
  • Drive Motor
    AC
  • Maximum_Speed
    7.5 Mph
  • Operation Mode
    Seat
  • Power Type
    Electric
  • Product_Name
    Double Reach Lift Truck
  • Tire_Type
    Solid
  • Tyre Material
    Polyurethane
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD
  • Minimum Order Quantity
    1 PC
  • Price
    $6000.00-$7000.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

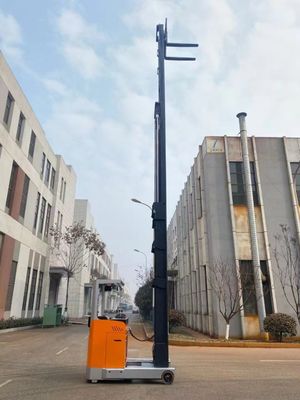

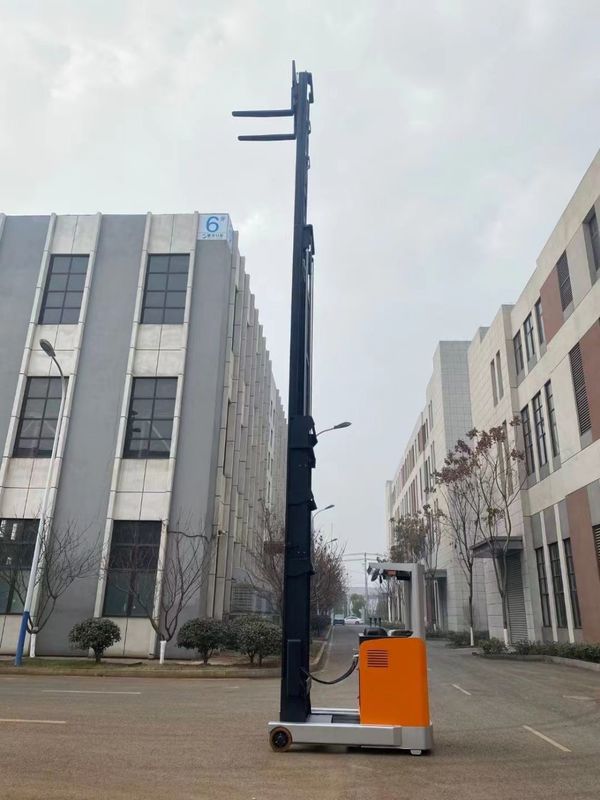

12000 Meter Electric Reach Forklift Truck Heavy Duty Electric Pallet Stacker 1000 Kg

Electric Reach Lift Truck Forward moving forklift) ::

The gantry of the forward moving forklift can be moved forward, and the forklift can tilt forward and tilt backward; Mainly suitable for high-level storage warehouses with high-speed logistics, large quantity of goods stacking, frequent stacking and retrieval, and high efficiency. Fast lifting speed, fast walking speed, and improved work efficiency; Load capacity: 1000-3000kg, lifting height 3000-13500mm, optional battery capacity, side pull battery structure, quick battery replacement, lithium battery and lead-acid battery options.



More Specification :



  • Forward moving forklift mounted
  • Rated load capacity: 2000kg
  • Lifting height: 12000mm
  • Fork length: 1070mm
  • Battery capacity: 48V500AH
  • Three section fully free gantry
  • Fork tilt forward and tilt backward
  • Wireless camera monitor
  • Electronic steering side pull battery structure



Advantage:

  • Double oil cylinders, wide view mast
  • American CURTIS brand drive control system
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Germany Bucher brand low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long-life inductive switch
  • Body damping system, pedal and handle damping



Model   CDD10B CDD15B
Power type   Battery
Operation mode   Standing type
Rated load kg 1000 1500
Load center distance mm 500
Installation level and form   2A 2A
Tire type   Polyurethane
Tire specification (front wheel) mm Φ210*85
Tire specification (drive wheel) mm Φ230*75
Tire specification (multidirectional wheel) mm Φ130*55
Number of tires (front/ rear) (X= drive wheel)   2/1X+2
Mast type   Duplex mast
Mast tilt angle (forward tilt/ backward tilt) (optional) ° 3/5
Standard lifting height mm 2500
Free lifting height mm /
Height of mast closed mm 1830
Height of mast open (incl. blocking rack) mm 3485
Min. ground clearance mm 70
Overall length (pedal deployment/ retraction) mm 3200/2695 3300/2795
Wheelbase mm 1200 1300
Front overhang distance mm 145
Overall width (front/ rear) mm 990/ 900
Track width (front/ rear) mm 895/ 684
Fork specifications mm 1070*100*35
Outside distance of fork mm 240-700
Channel width (1000*1200 tray) (pedal unfold/ fold) mm 3420/ 3000 3510/ 3095
Turning radius (pedal unfold/ fold) mm 1920/ 1500 2010/ 1595
Walking speed (full load/ no load) km/h 4.0/5.0
Lifting speed (full load/ no load) mm/s 80/150 77/150
Descent speed (full load/ no load) mm/s 160/105 200/105
Climbing gradient (S2-5) (full load/ no load) % 6/8 5/8
Drive motor power kw 1.5
Lifting motor power kw 2.2 3
Battery (voltage/ capacity) v/ah 24/210
Battery weight kg 200
Vehicle weight (incl. battery) kg 1815 1885
Steering type   Electronic steering
Parking brake type   Electromagnetic braking
Battery replacement method   Lifting type
