Tray transport vehicle:
Advantage:
Product parameters:

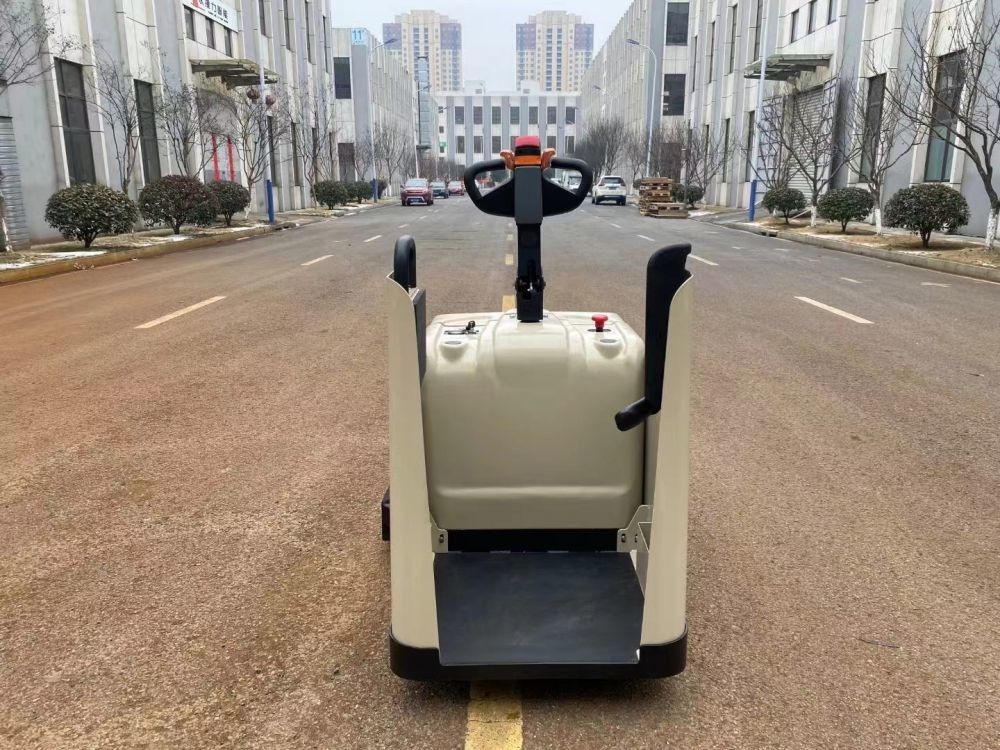

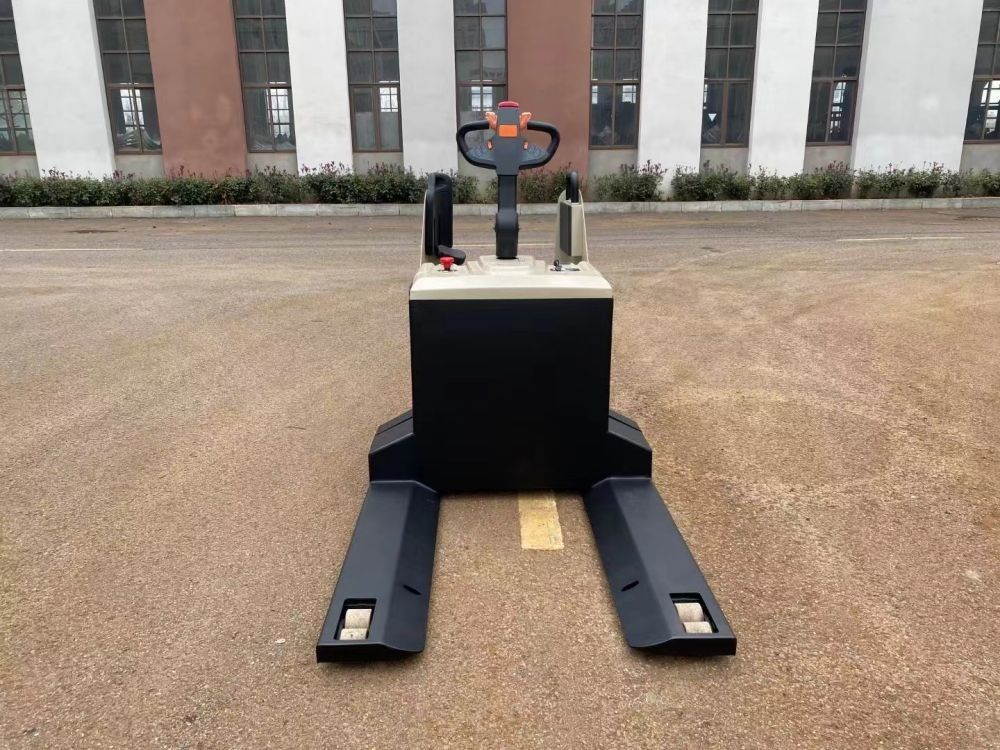

Name | Electric pallet truck | |
Model | CBD20 | |
Load | kg | 2000 |
Load center | mm | 600 |
Minimum ground clearance | mm | 90 |
Maximum ground clearance | mm | 200 |
Driving mode | Walking type | |
Overall width | mm | 780 |
Overall length | mm | 1790 |
Fork outer width | mm | 685/560 |
Maximum height of handle from the ground | mm | 1275 |
Turning Radius | mm | 1645 |
Fork size | mm | 1150*175*70 |
Right angle stacking channel (1200 x1000mm) | mm | 2425 |
Traveling speed (loaded/ unloaded) | mm/s | 3.5/4 |
Lifting motor (S3-15%) | kw | 0.8 |
Travel motor (S2-60min) | kw | 1.5 |
Braking form | Electromagnetic braking | |
Steering form | Mechanical steering | |
Body weight | kg | 600 |
Battery weight | kg | 200 |
Climbing gradient (full load/ no load) | % | 5/8 |
Battery capacity | v/ah | 210 |
Charger | v/a | 30 |
Number of tires (front/ rear) (X= drive wheel) | 4/1X+2 | |
Drive wheel | mm | Φ230*75 |
Bearing wheel | mm | Φ85*70 |
Auxiliary wheel | mm | Φ100 *50 |
Lifting speed (full load/ no load) | mm/s | 27/35 |
Falling speed (full load/ no load) | mm/s | 35/35 |
Tire type | Polyurethane | |
Battery replacement method | Lifting type |
The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
