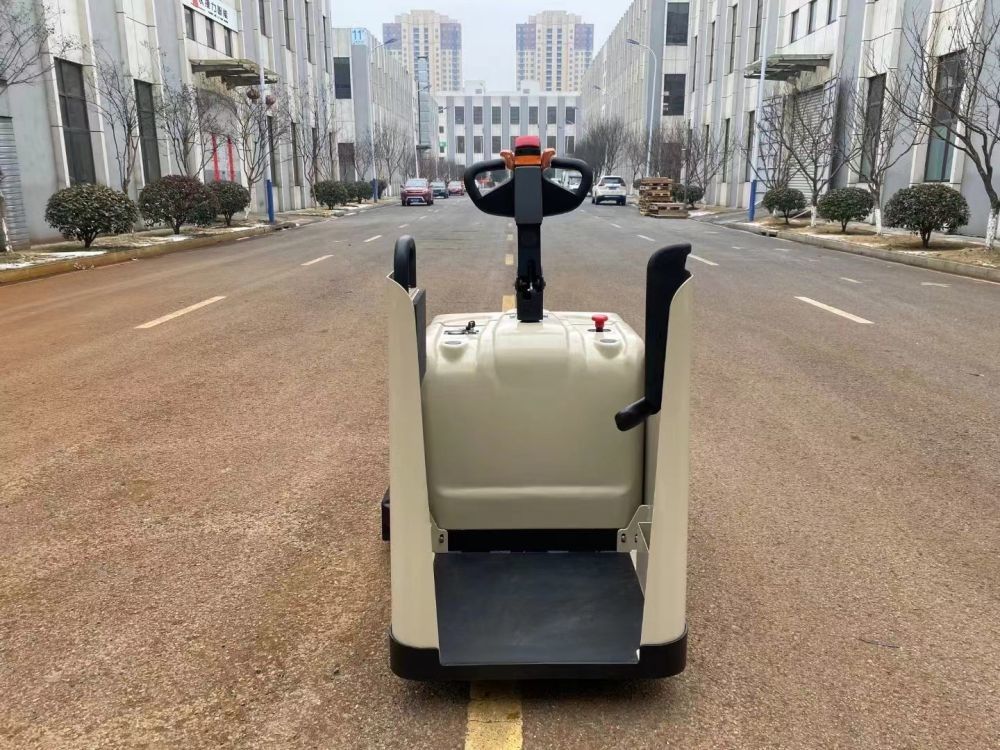

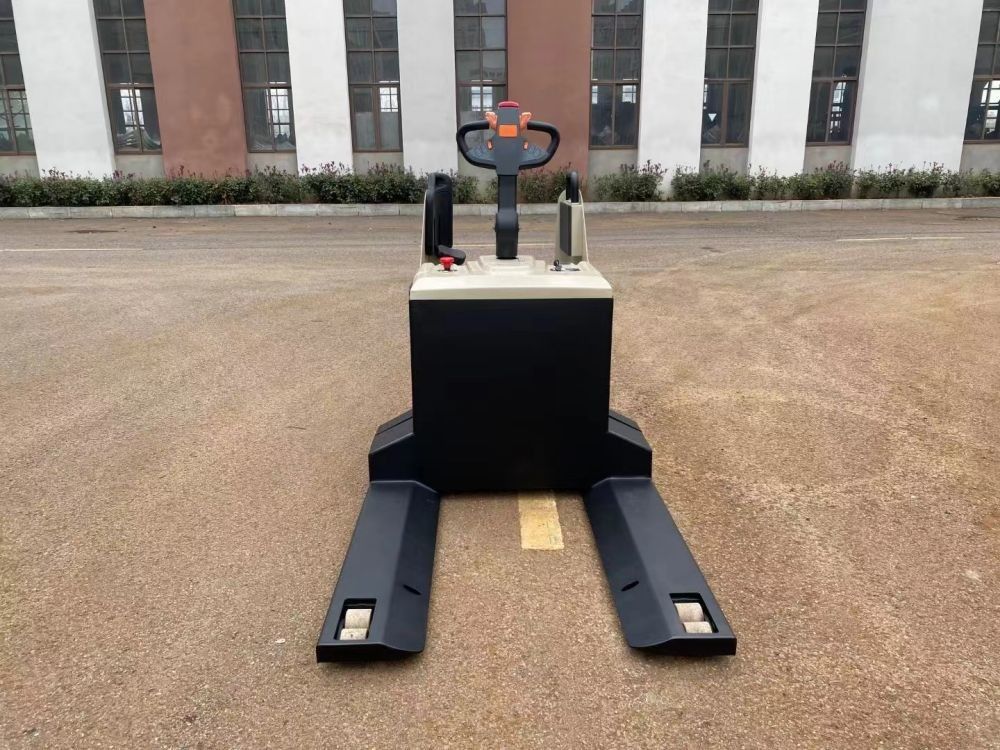

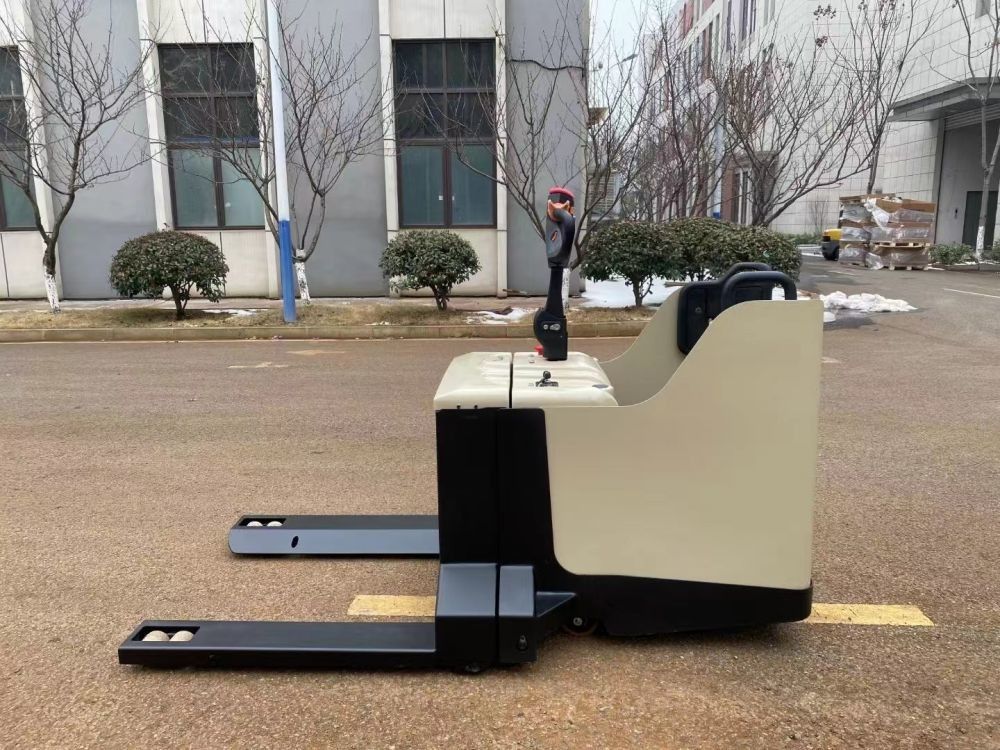

Tray transport vehicle:
Safety:
Design and manufacturer of intelligent storage equipment
Customized supplier of non-standard storage equipment
Advantage:
Product parameters:
| Name | Electric pallet truck | |
| Model | CBD20 | |
| Load | kg | 2000 |
| Load center | mm | 600 |
| Minimum ground clearance | mm | 90 |
| Maximum ground clearance | mm | 200 |
| Driving mode | Walking type | |
| Overall width | mm | 780 |
| Overall length | mm | 1790 |
| Fork outer width | mm | 685/560 |
| Maximum height of handle from the ground | mm | 1275 |
| Turning Radius | mm | 1645 |
| Fork size | mm | 1150*175*70 |
| Right angle stacking channel (1200 x1000mm) | mm | 2425 |
| Traveling speed (loaded/ unloaded) | mm/s | 3.5/4 |
| Lifting motor (S3-15%) | kw | 0.8 |
| Travel motor (S2-60min) | kw | 1.5 |
| Braking form | Electromagnetic braking | |
| Steering form | Mechanical steering | |
| Body weight | kg | 600 |
| Battery weight | kg | 200 |
| Climbing gradient (full load/ no load) | % | 5/8 |
| Battery capacity | v/ah | 210 |
| Charger | v/a | 30 |
| Number of tires (front/ rear) (X= drive wheel) | 4/1X+2 | |
| Drive wheel | mm | Φ230*75 |
| Bearing wheel | mm | Φ85*70 |
| Auxiliary wheel | mm | Φ100 *50 |
| Lifting speed (full load/ no load) | mm/s | 27/35 |
| Falling speed (full load/ no load) | mm/s | 35/35 |
| Tire type | Polyurethane | |
| Battery replacement method | Lifting type |
The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
