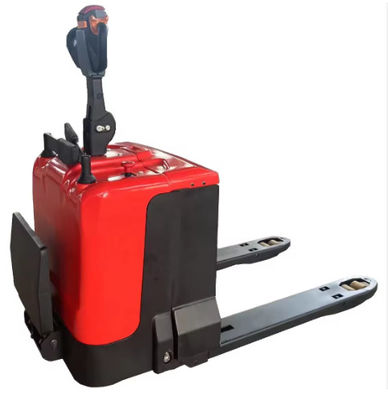

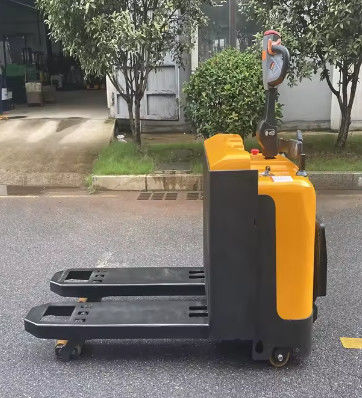

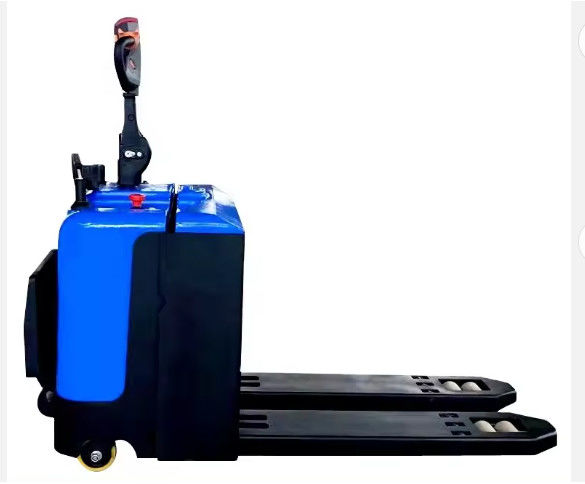

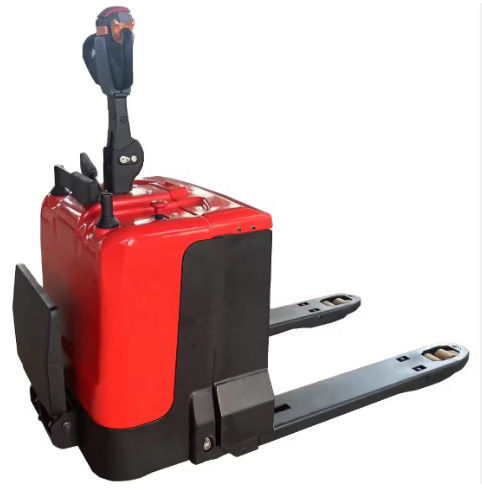

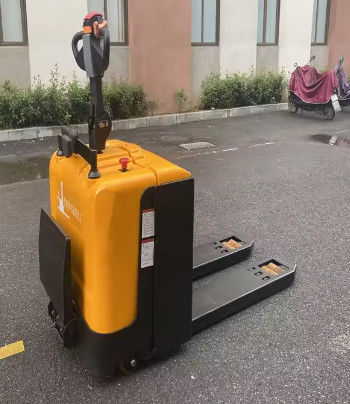

1.5 Ton 2 Ton  Capacity Electric Pallet Jack Warehouse Wih AC Power

1.5 Ton 2 Ton Capacity Electric Pallet Jack Warehouse Wih AC Power

  • High Light

    AC Power Forklift Pallet Jack


    2 Ton Capacity Electric Pallet Jack


    Warehouse Electric Pallet Jack

  • Cylinder
    Double Oil
  • Battery
    Lithium Battery
  • Braking Form
    Electromagnetic Braking
  • Power
  • Steering Form
    Electronic Steering
  • Battery Voltage
    48 - 80 V
  • Charging Time
    4 - 6 Hours
  • Load Capacity
    1.5 - 2.5 Tons
  • Model
    Electric Pallet Forklift
  • Operation Mode
    Walking Type
  • Power Source
  • Power Type
  • Tire Type
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 PC
  • Price
  • Packaging Details
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability

1.5 Ton 2 Ton Capacity Electric Pallet Jack Warehouse Wih AC Power

Electric Pallet Truck is widely used in factories, supermarkets, warehouses, logistics, cold storage etc. , flexible in narrow spaces and passages, which is convenient operation, low noise and no pollution. It can meet the different working needs of customers to a large extent. Our product has undervoltage indication and protection devices, special software technology, enhanced system and seismic resistance. The red digital HD display can be seen clearly during the day and night.



  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device


Design and manufacturer of intelligent storage equipment

Customized supplier of non-standard storage equipment

1.5 Ton 2 Ton  Capacity Electric Pallet Jack Warehouse Wih AC Power 0

Product parameters:

Name   Electric pallet truck
Model   CBD25
Load kg 2500
Load center mm 600
Minimum ground clearance mm 90
Maximum ground clearance mm 200
Driving mode   Walking type
Overall width mm 780
Overall length mm 1790
Fork outer width mm 685/560
Maximum height of handle from the ground mm 1275
Turning Radius mm 1645
Fork size mm 1150*175*70
Right angle stacking channel (1200 x1000mm) mm 2425
Traveling speed (loaded/ unloaded) mm/s 3.5/4
Lifting motor (S3-15%) kw 0.8
Travel motor (S2-60min) kw 1.5
Braking form   Electromagnetic braking
Steering form   Mechanical steering
Body weight kg 600
Battery weight kg 200
Climbing gradient (full load/ no load) % 5/8
Battery capacity v/ah 210
Charger v/a 30
Number of tires (front/ rear) (X= drive wheel)   4/1X+2
Drive wheel mm Φ230*75
Bearing wheel mm Φ85*70
Auxiliary wheel mm Φ100 *50
Lifting speed (full load/ no load) mm/s 27/35
Falling speed (full load/ no load) mm/s 35/35
Tire type   Polyurethane
Battery replacement method   Lifting type


The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
