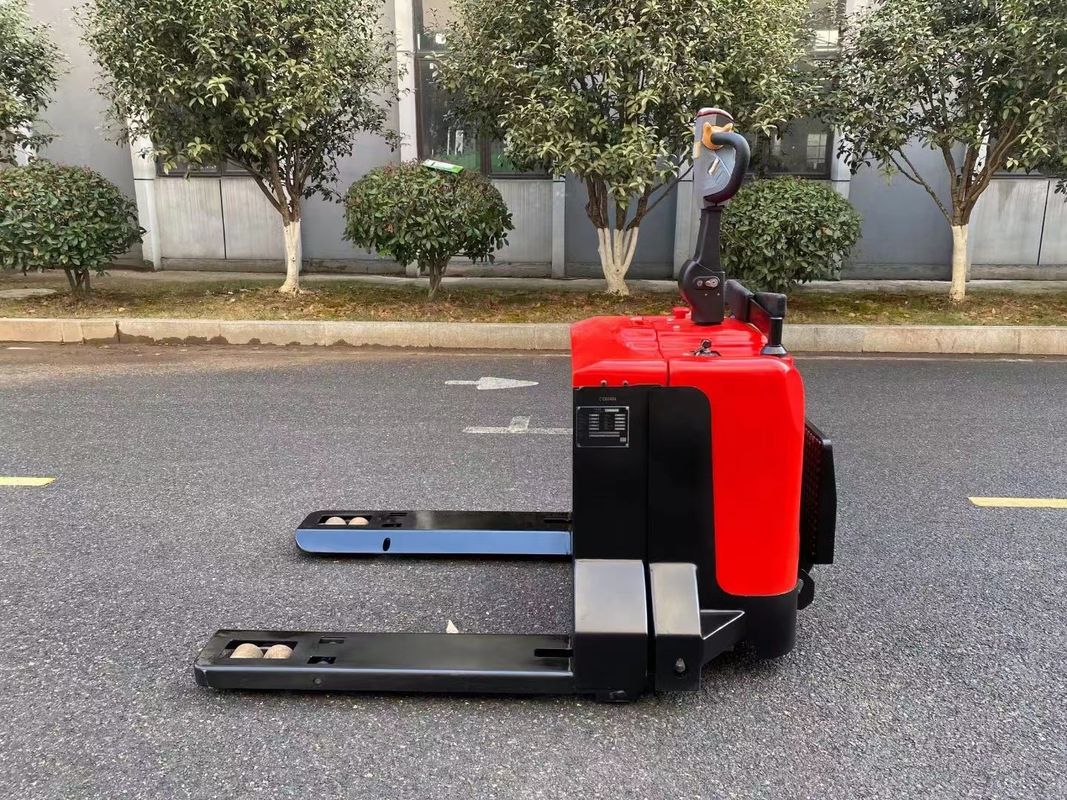

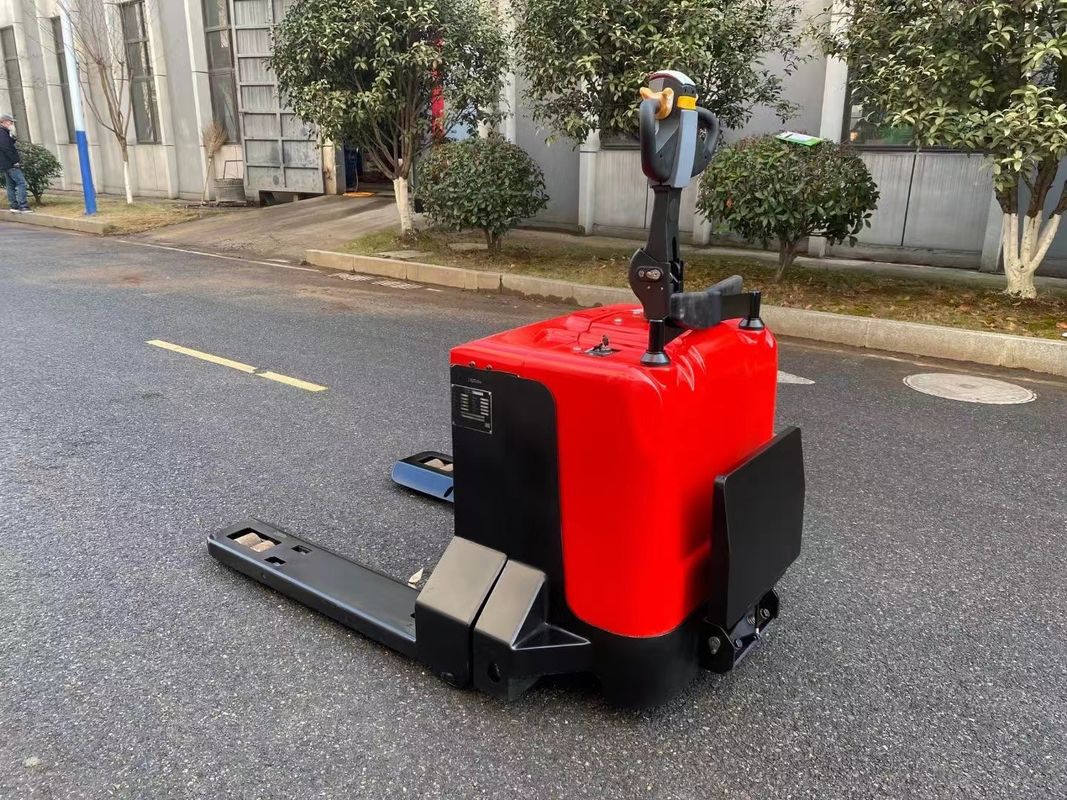

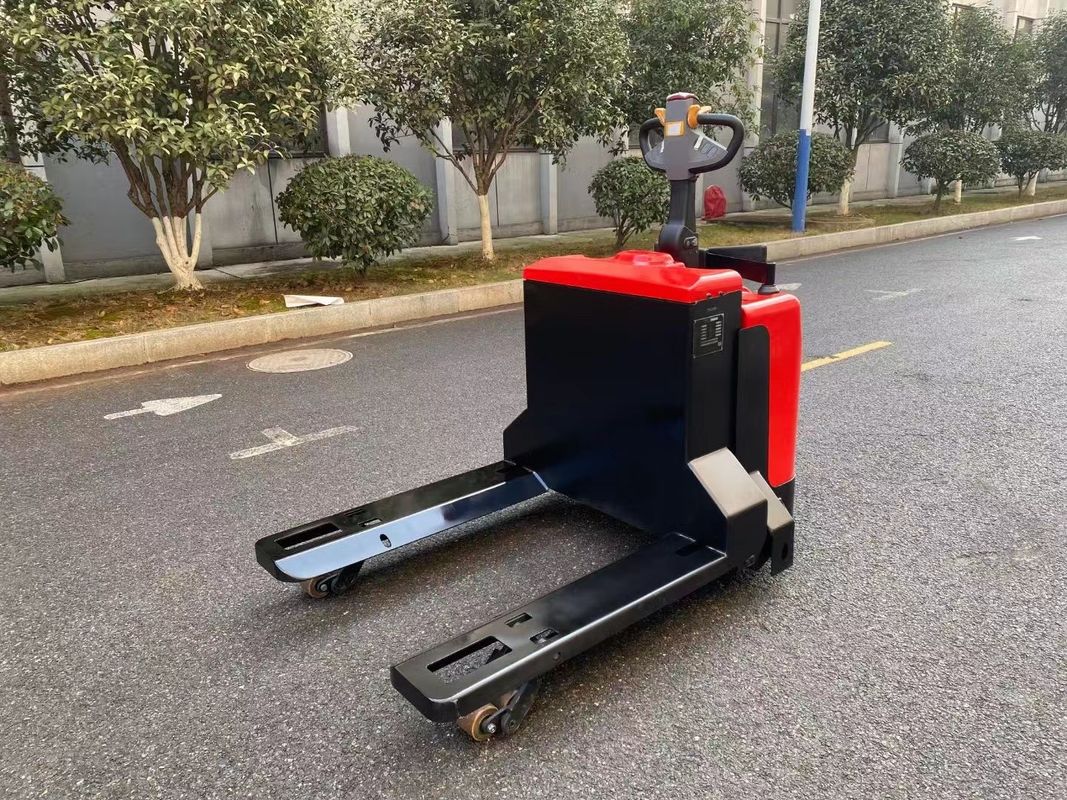

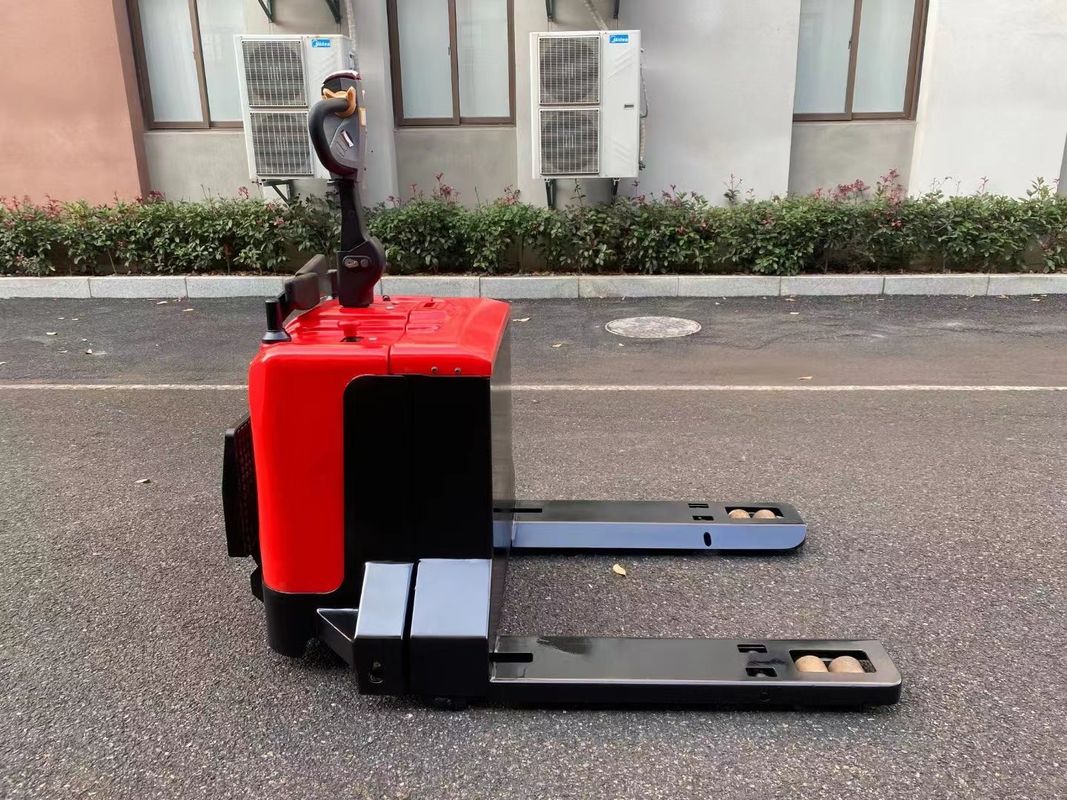

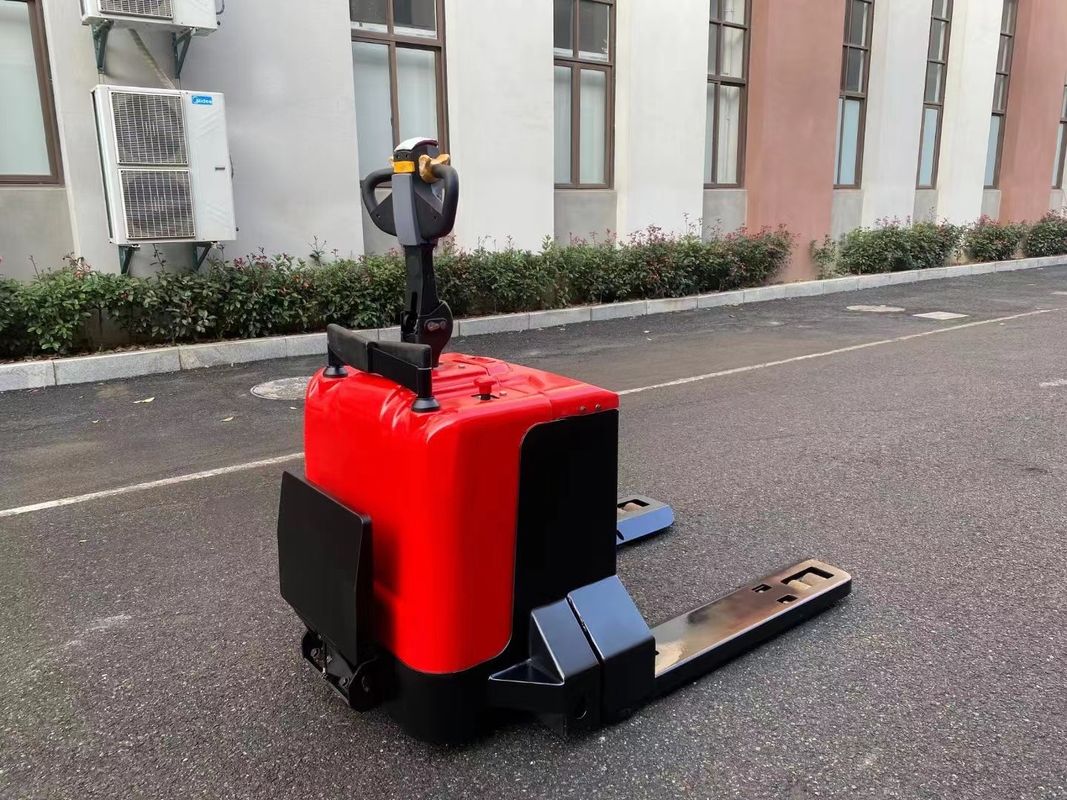

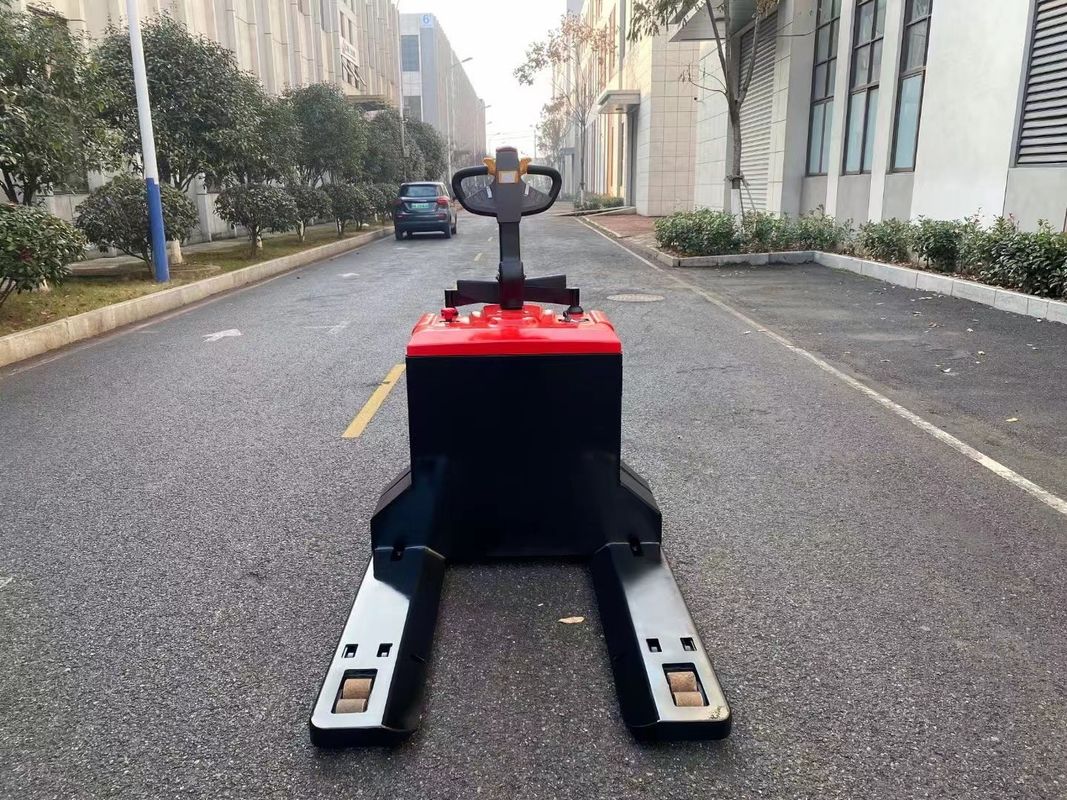

Electric Paper Roll Handling Truck Rated Load Capacity 3000kg Fork Length 1000mm

Electric Paper Roll Handling Truck Rated Load Capacity 3000kg Fork Length 1000mm

  • High Light

    3000kg Paper Roll Handling Truck

    ,

    Paper Roll Handling Electric Reach Forklift

    ,

    Duplex Mast Handling Lift Truck

  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Electric Paper Roll Handling Truck Rated Load Capacity 3000kg Fork Length 1000mm

 More Specification :



Paper roll handling truck

Rated load capacity: 3000kg

Fork length: 1000mm

Paper roll diameter: 1000mm

Battery capacity: 24V210AH

Electronic steering pedal protection arm

  • Double oil cylinders, wide view mast
  • American CURTIS brand drive control system
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Germany Bucher brand low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long-life inductive switch
  • Body damping system, pedal and handle damping
Model   CDD15-30 CDD25-30
Power type   Electric
Operation mode   Stand-on type
Rated load kg 1500/3000 2500/3000
Load center distance mm 500
Tire type (front/ rear)   Polyurethane
Number of tires   4/1X+2
Mast type   Duplex mast
Standard lifting height mm 3000
Free lifting height mm 0
Height of mast closed mm 2000
Height of mast open mm 3490
Min. ground clearance of fork mm 90
Overall length pedal (deployment/ retraction) mm 2515/ 2215 2525/2265
Wheelbase mm 1390
Overall width mm 850 850/12300
Track width (front/ rear) mm 490/604 505/1100
Fork specifications mm 1150*190*65 1150*205*65
Fork side outer distance mm 685/ 560 715
Turning radius pedal deployment/ retraction mm 2125/1715 2125/1720
Travel speed (full load/ no load) km/h 4.8/5.0 4.0/5.0
Lifting speed (full load/ no load) mm/s 100/150 80/125
Descent speed (full load/ no load) mm/s 150/105 160/105
Gradient (full load/ no load) % 6/ 8 5/ 8
