Non Standard Electric Balanced Forklift Lift Height 3000M Lithium Battery 25.6V 160AH

Non Standard Electric Balanced Forklift Lift Height 3000M Lithium Battery 25.6V 160AH

  • High Light

    Lithium Battery Electric Reach Forklift

    ,

    Non Standard Electric Balanced Forklift

    ,

    Height 3000M Electric Balanced Forklift

  • Working Time
    10hours Per Day
  • Attery
    48V/400AH
  • Drive Motor Type
    AC
  • Power Souce
    AC Motor
  • Power Type
    Battery
  • Control System
    CURTIS
  • Fork Length
    1070 Mm
  • Lift Height
    6000mm
  • Battery Weight
    650KG
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Model
    8FBRU18
  • Port
    Ningbo
  • Colour
    Red
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CQD
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

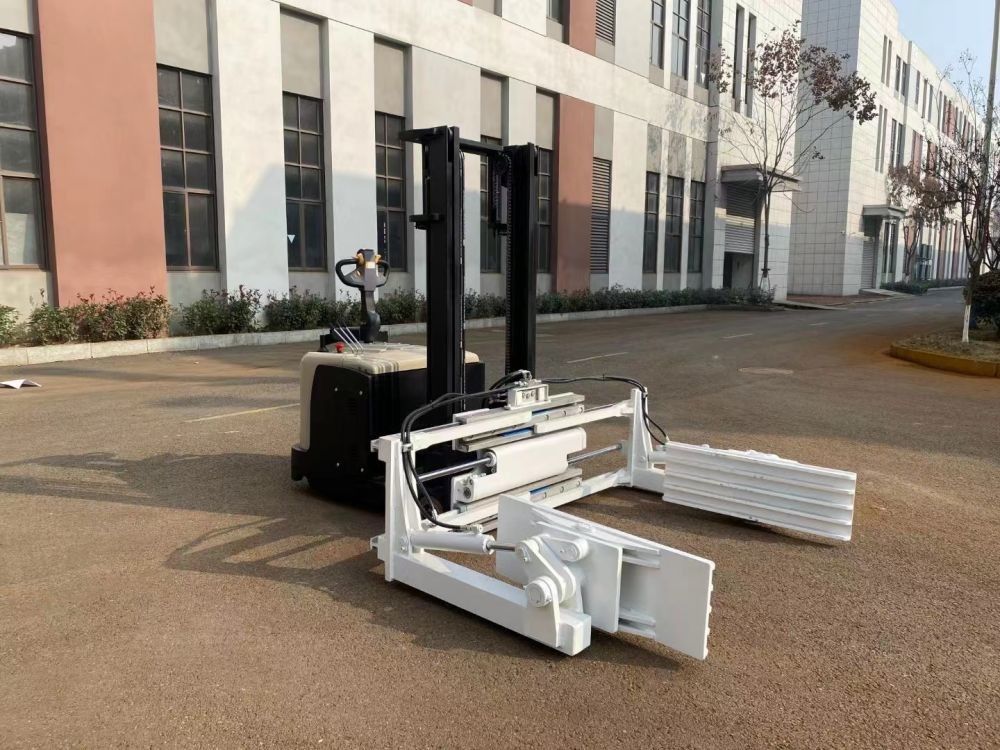

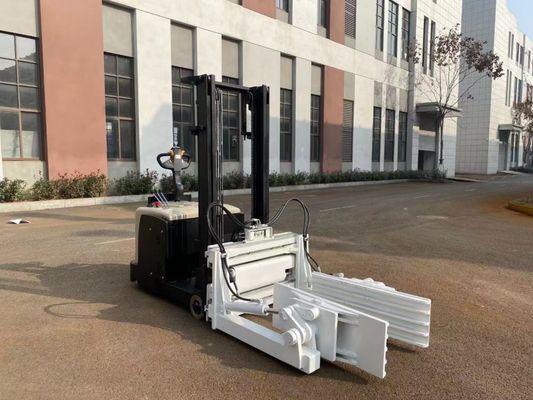

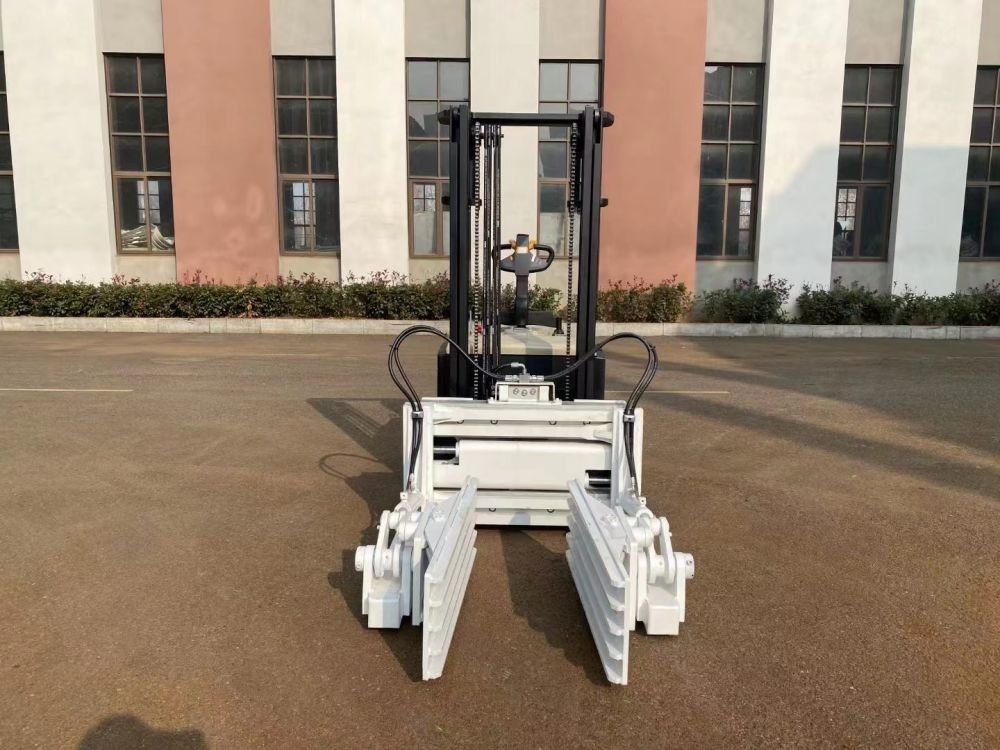

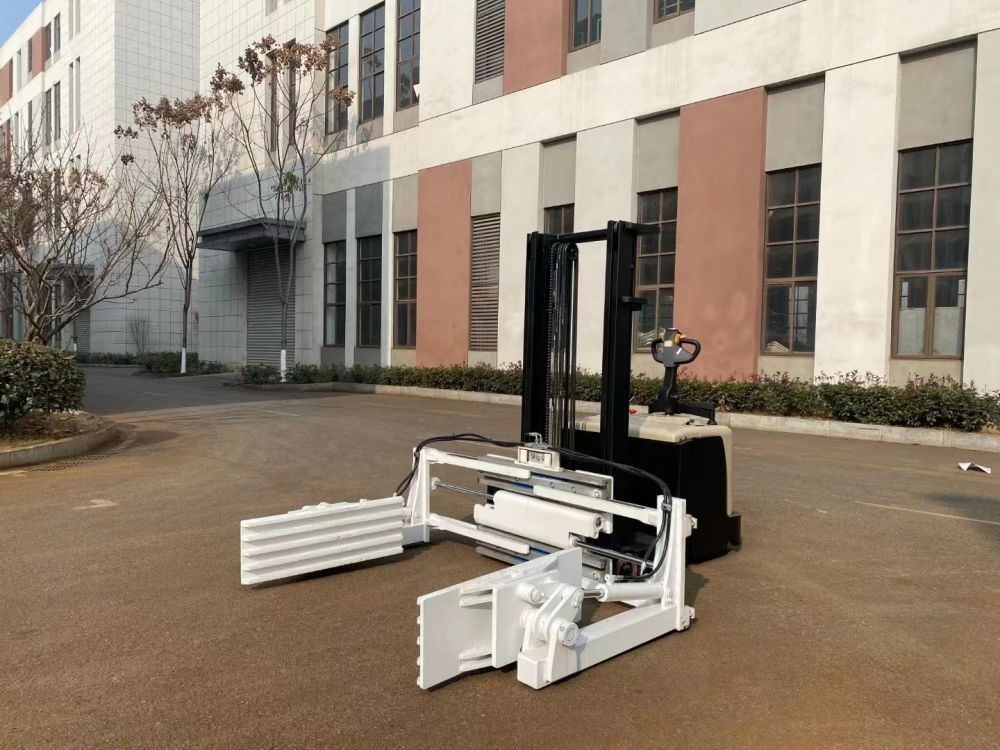

Non Standard Electric Balanced Forklift Lift Height 3000M Lithium Battery 25.6V 160AH

Non standard balanced forklift
Installing a soft bag clip
Rated load capacity: 500kg
Lifting height: 3000mm
Arm tension range: 480-1400mm
Clamp length: 1000mm
Rotation angle: 95-100 °
Lithium battery: 25.6V160AH
Electronic steering pedal protection arm









Model   CQD15 CQD25
Power type   Electric
Operation mode   Seated type
Rated load kg 1600 2500
Load center distance mm 600 600
Tire type mm Solid PU
Front wheel specification mm 267*114
Specification of driving wheel mm 343*135
Number of tires   2/1X
Fork inclination (forward / backward)   3/ 5
Standard lifting height mm 7500
Free lifting height mm 2585
Height of mast closed mm 3150 3250
Maximum height during lifting mm 8485
Height of roof protection frame mm 2190
Fork leg height mm 310
First pedal height mm 320
Second pedal height mm 530
Seat height mm 975
Distance between the second pedal and the roof protection frame mm 1615
Ground clearance of fork leg mm 110
Floor clearance of underbody mm 80
Overall length mm 2440 2500
Reach distance mm 550 650
Front overhang distance mm 160
Wheelbase mm 1495 1665
Overall width mm 1270
Track width (front / rear) mm 1158/0
Outside width of fork mm 210-800 260-820
Fork specifications mm 1070*100*35 1070*122*40
Channel width (1000*1000mm tray) mm 2745 2975
Turning radius mm 1775 1945
Walking speed km/h 7.5/8
Lifting speed mm/s 150/260
Descent speed mm/s 300/160 350/160
Gradient % 8/10 6/8
Drive motor power kw 4.5 6.5
Lifting motor power kw 6.3 8.6
Battery voltage/ capacity v/ah 48/400 48/420
Battery weight kg 650 700
Vehicle weight kg 3500 3650
Steering type   Electronic transformation
Parking brake type   Electromagnetic braking
