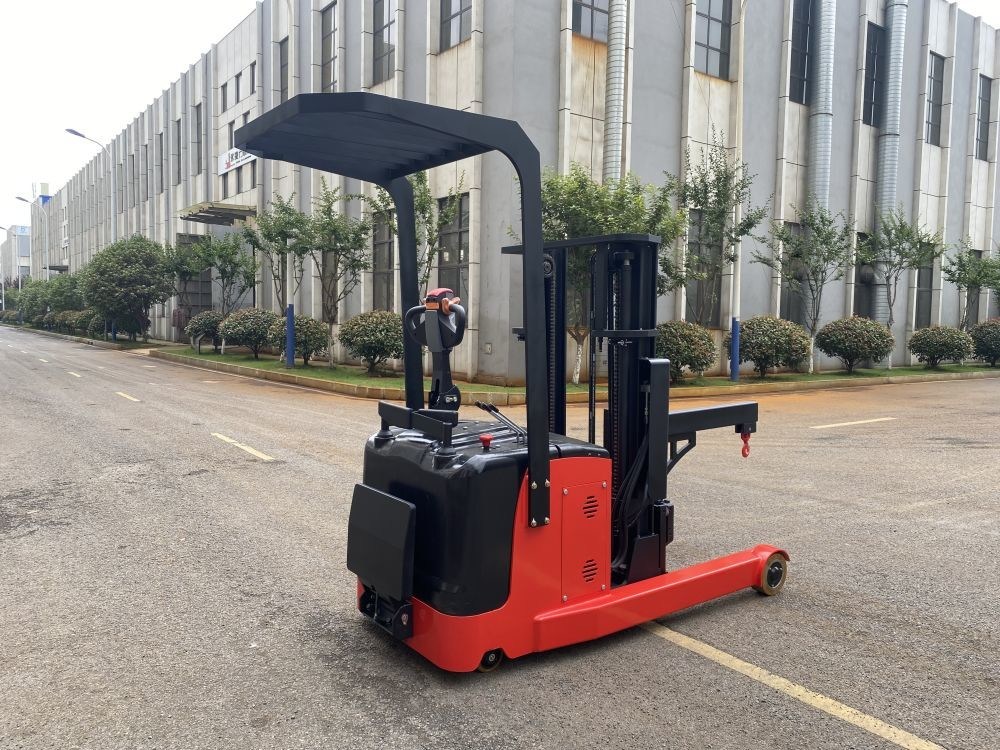

Customization Electric Reach Forklift 1150*160*60mm Rated Capacity 1500 KG

Customization Electric Reach Forklift 1150*160*60mm Rated Capacity 1500 KG

  • High Light

    Customization Electric Reach Forklift

    ,

    Electric Reach Forklift 1150*160*60mm

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD15A
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Customization Electric Reach Forklift 1150*160*60mm Rated Capacity 1500 KG

Customization Walking Pallet Stacker Rated Capacity 1500 KG Move Forward & Backward Mast and Fixed Fork with Pothhook

Model   CDD15A
Power type   Electric
Operation mode   Walking handle type
Rated load kg 1500
Load center distance mm 500
Tire type (front/ rear)   Polyurethane
Carrier wheel mm Φ85*70
Drive wheel mm Φ210*70
Auxiliary wheel mm Φ130*55
Number of tires (front/ rear) (X= drive)   2/1X+1
Mast type   Duplex mast
Standard lifting height mm 3000
Free lifting height mm 0
Height of mast closed mm 2080
Height of mast open mm 3560
Min. ground clearance of fork surface mm 85
Overall length mm 1710
Wheelbase mm 1185
Overall width mm 800
Track width (front/ rear) mm 525/535
Fork specifications mm 1150*160*60
Outside distance of fork mm 685/560
Channel width (1000*1200 pallets) mm 2205
Channel width (800*1200 pallets) mm 2145
Turning radius mm 1366
Travel speed (full load/ no load) km/h 3.5/ 4
Lifting speed (full load/ no load) mm/s 80/125
Descent speed (full load/ no load) mm/s 150/100
Climbing gradient (S2-5) (full load/ no load) % 3/6
Drive motor power kw 0.75
Lifting motor power kw 2.0
Battery voltage/ capacity v/ah 24/ 60
Battery weight kg 20
Vehicle weight (including battery) kg 625
Steering type   Hand movement
Parking brake type   Electromagnetic braking
Parking brake operation mode   Handle operation
