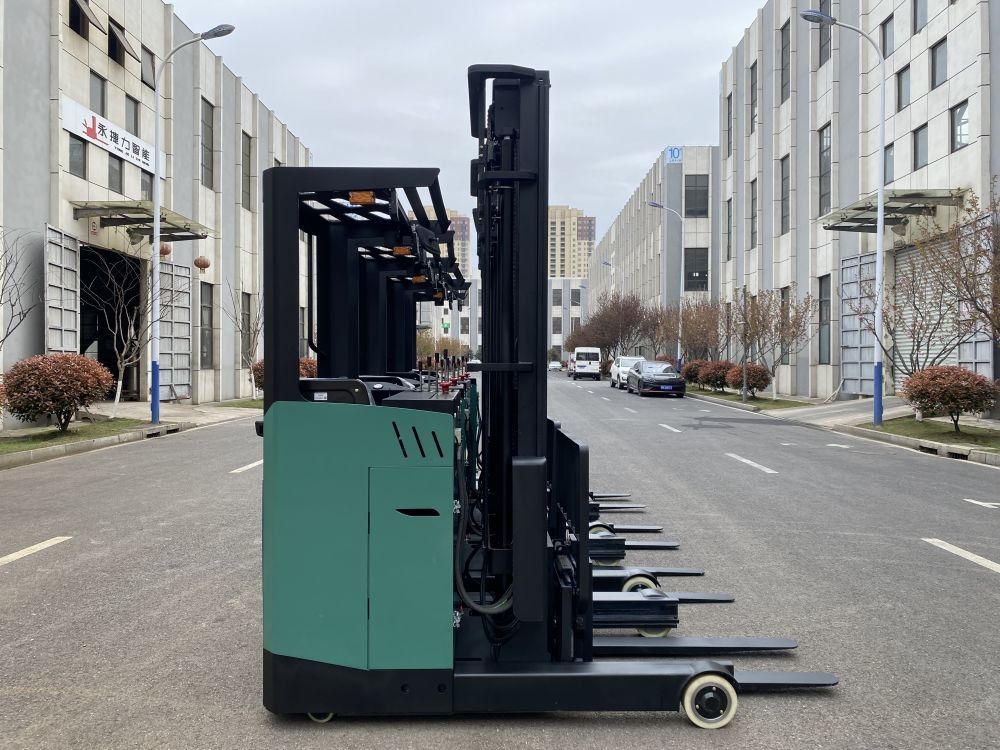

Rated Load 1500 KG Electric Pallet Forklift Electric Stacker Lift CE

Rated Load 1500 KG Electric Pallet Forklift Electric Stacker Lift CE

  • High Light

    1500 KG Electric Pallet Forklift

    ,

    Electric Pallet Forklift CE

    ,

    Electric Stacker Lift CE

  • Name
    Electric Pallet Forklift
  • Power Type
    Electric
  • Operation Mode
    Walking Type
  • Parking Brake Type
    Electromagnetism
  • Tire Type (front/ Rear)
    Polyurethane
  • Number Of Tires
    4/1X+1
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CQD15
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Rated Load 1500 KG Electric Pallet Forklift Electric Stacker Lift CE


Rated Load 1500 KG Low Noise Hydraulic Pump Forward Shift Stand Style Electric Forklift Truck

Why choose our products? You can obtian the following advantages:

Advantages:

  • Dual oil cylinders, wide field mast
  • CURTIS brand drive control system in the United States
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Bucher brand low noise hydraulic pump from Germany
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long life induction switch
  • Body damping system, pedal and handle damping

Security:


  • Automatic deceleration device for bends
  • Fork automatically decelerates at high position
  • Driving stepless speed regulation
  • Multiple automatic protection systems for controllers
  • Emergency reverse collision prevention/emergency braking device
  • Cylinder safety shut-off valve



Model CQD15
Power type Electric
Operation mode Seated type
Rated loadkg1500
Load center distancemm600
Tire typemmSolid PU
Front wheel specificationmm267*114
Specification of driving wheelmm343*135
Number of tires 2/1X
Fork inclination (forward / backward) 3/5
Standard lifting heightmm7500
Free lifting heightmm2585
Height of mast closedmm3150
Maximum height during liftingmm8485
Height of roof protection framemm2190
Fork leg heightmm310
First pedal heightmm320
Second pedal heightmm530
Seat heightmm975
Distance between the second pedal and the roof protection framemm1615
Ground clearance of fork legmm110
Floor clearance of underbodymm80
Overall lengthmm2440
Reach distancemm550
Front overhang distancemm160
Wheelbasemm1495
Overall widthmm1270
Track width (front / rear)mm1158/0
Outside width of forkmm210-800
Fork specificationsmm1070*100*35
Channel width (1000*1000mm tray)mm2745
Turning radiusmm1775
Walking speedkm/h7.5/8
Lifting speedmm/s150/260
Descent speedmm/s300/160
Gradient%8/10
Drive motor powerkw4.5
Lifting motor powerkw6.3
Battery voltage/ capacityv/ah48/400
Battery weightkg650
Vehicle weightkg3500
Steering type Electronic transformation
Parking brake type Electromagnetic braking
