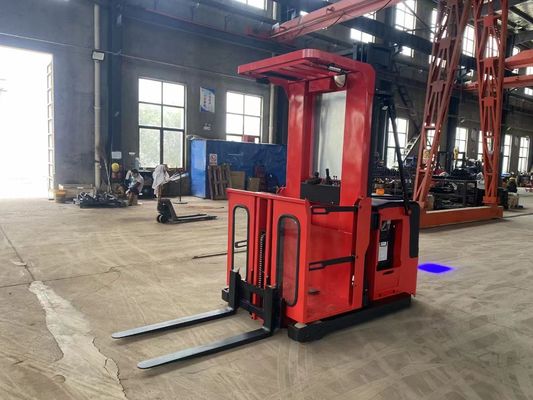

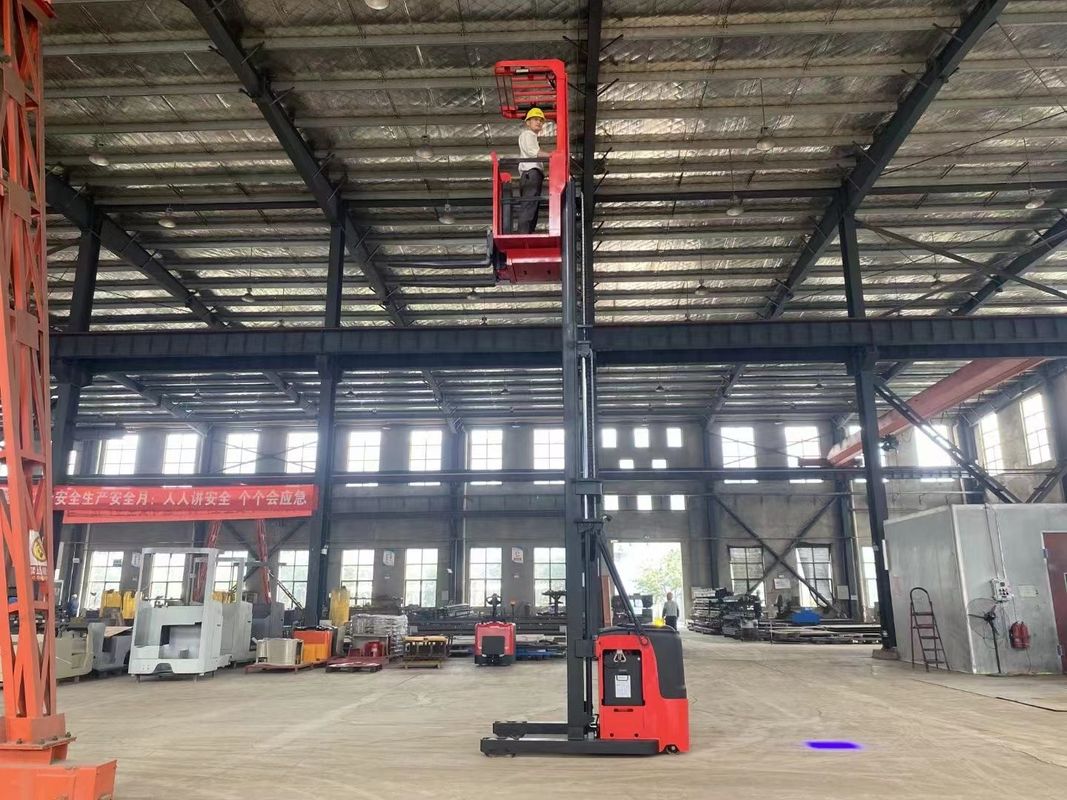

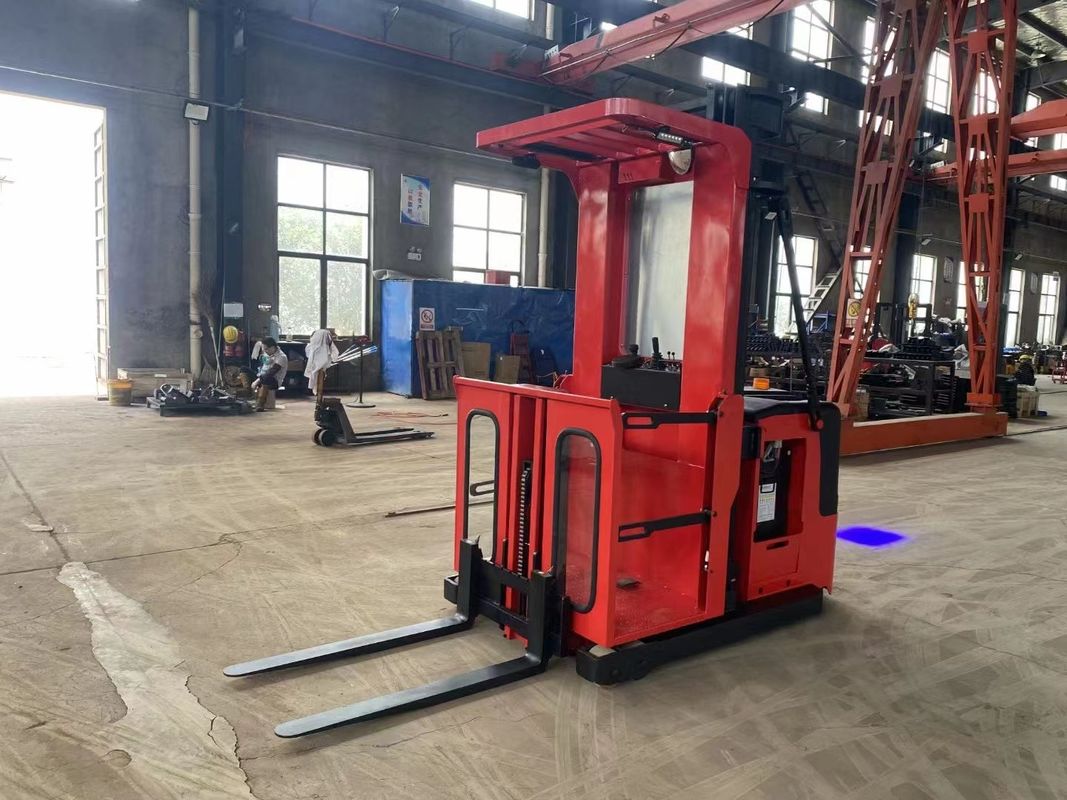

1000 KG Order Picking Forklift Truck For Pharmaceuticals And Electronics Industry

1000 KG Order Picking Forklift Truck For Pharmaceuticals And Electronics Industry

  • High Light

    1000 KG Order Picking Forklift Truck

    ,

    Order Picking Forklift Truck Electronics Industry

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CXD10-60
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

1000 KG Order Picking Forklift Truck For Pharmaceuticals And Electronics Industry



OEM/ODM Rated Load 1000 KG Order Picking Forklift Truck 6000 and Light Cargo Pharmaceuticals And Electronics Industry

Why choose our products ? You will obtian the following advantages:



Advantage:

  • Wide angle view, high-strength shock absorption mast
  • American CURTIS brand drive control system
  • Vertical drive system
  • Electronic steering, portable, mute
  • Integrated low-noise hydraulic pump
  • Electromagnetic hydraulic valve
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit, integrated thumb switch
  • Body damping system

Security:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple brake protection system
  • Leisure backrest/ emergency braking device



AC EPS

Low noise hydraulic

Optional lithium battery

Model   CXD10-60
Rated lifting capacity kg 1000
Load center mm 600
Power type   Electric
Operator type   Standing
Total weight   2650
Drive wheel mm φ230×75
Front wheel mm φ150×90
Auxiliary wheel   φ130×55
Lifting height mm 6000
Max. lifting height of fork mm 6000
Overall length mm 2720
Overall width mm 1160
Height of mast closed   2885
Maximum height when rising to the maximum mm 8250
Height of roof protection frame mm 2250
Min. ground clearance mm 50
Min. height of operating table from the ground mm 240
Auxiliary lifting height mm 0
Max. lifting height of operating table mm 6240
Fork length mm 920*100*40
Fork outer width mm
Turning Radius mm 1635
Right angle channel (1200 horizontal x 1000)   3180
Traveling speed (full load/ no load) km/h 4/5
Climbing gradient % 0
Braking mode   Electromagnetism
Drive motor v/kw 24/2.2
Lifting motor v/kw 24/3.0
Battery v/ah 24/420
Lifting speed (no load/ full load) mm/s 115/100
Descent speed (no load/ full load) mm/s 125/200
