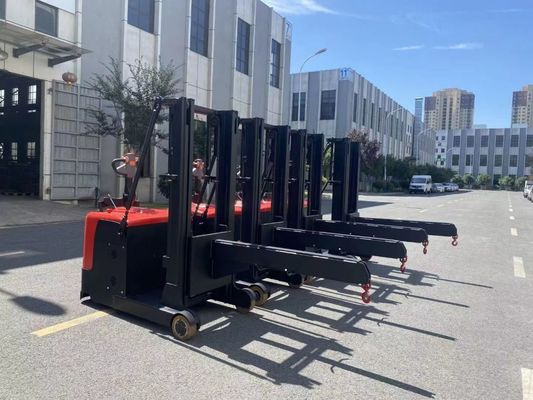

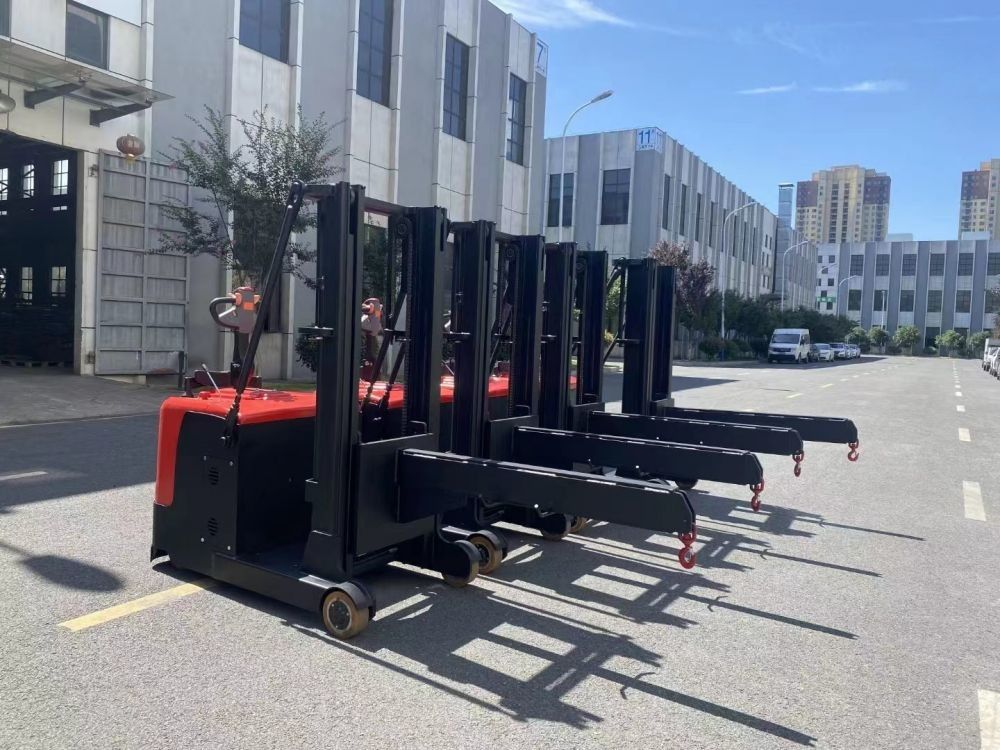

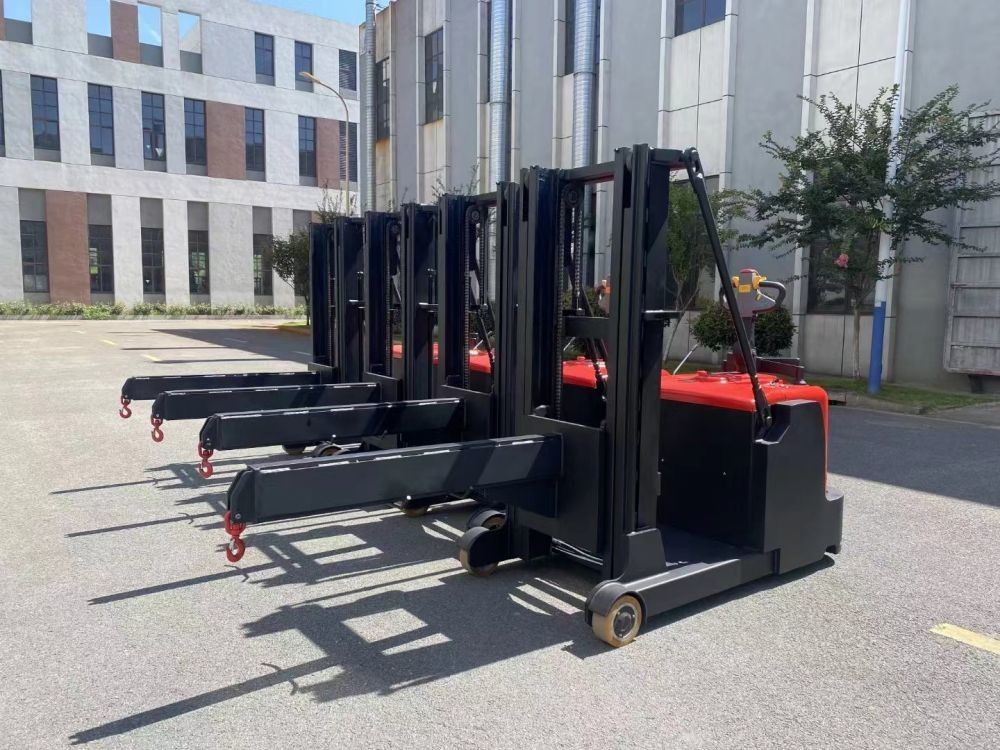

1.5t Electric Pallet Forklift Balanced Boom Type Electromagnetic Braking

1.5t Electric Pallet Forklift Balanced Boom Type Electromagnetic Braking

  • High Light

    1.5t Electric Pallet Forklift


    Electric Pallet Forklift Electromagnetic Braking

  • Name
    Electric Pallet Forklift
  • Power Type
  • Operation Mode
    Walking Type
  • Parking Brake Type
  • Tire Type (front/ Rear)
  • Number Of Tires
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability

1.5t Electric Pallet Forklift Balanced Boom Type Electromagnetic Braking


  • AC drive motor, strong climbing force
  • High strength fork legs and forks
  • Special mast channel steel for high-strength forklift truck
  • Large capacity maintenance free battery
  • Built in intelligent charger
  • Multifunctional integrated, narrow channel dedicated operating handle
  • Low noise lifting hydraulic pump station
  • Good climbing performance



  • Curve automatic deceleration device
  • Drive stepless speed regulation, safety and mute
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency power-off switch



Fixed fork

Optional lithium battery

Optional 24v165/210ah lead-acid battery

Applicable to single-sided pallets


Boom Type OEM/ODM Balanced Forklift Carrying Capacity 1500 KG Electronic Steering Pedal Protection arm


Model   CDD10B CDD15B
Power type   Battery
Operation mode   Standing type
Rated load kg 1000 1500
Load center distance mm 500
Installation level and form   2A 2A
Tire type   Polyurethane
Tire specification (front wheel) mm Φ210*85
Tire specification (drive wheel) mm Φ230*75
Tire specification (multidirectional wheel) mm Φ130*55
Number of tires (front/ rear) (X= drive wheel)   2/1X+2
Mast type   Duplex mast
Mast tilt angle (forward tilt/ backward tilt) (optional) ° 3/5
Standard lifting height mm 2500
Free lifting height mm /
Height of mast closed mm 1830
Height of mast open (incl. blocking rack) mm 3485
Min. ground clearance mm 70
Overall length (pedal deployment/ retraction) mm 3200/2695 3300/2795
Wheelbase mm 1200 1300
Front overhang distance mm 145
Overall width (front/ rear) mm 990/ 900
Track width (front/ rear) mm 895/ 684
Fork specifications mm 1070*100*35
Outside distance of fork mm 240-700
Channel width (1000*1200 tray) (pedal unfold/ fold) mm 3420/ 3000 3510/ 3095
Turning radius (pedal unfold/ fold) mm 1920/ 1500 2010/ 1595
Walking speed (full load/ no load) km/h 4.0/5.0
Lifting speed (full load/ no load) mm/s 80/150 77/150
Descent speed (full load/ no load) mm/s 160/105 200/105
Climbing gradient (S2-5) (full load/ no load) % 6/8 5/8
Drive motor power kw 1.5
Lifting motor power kw 2.2 3
Battery (voltage/ capacity) v/ah 24/210
Battery weight kg 200
Vehicle weight (incl. battery) kg 1815 1885
Steering type   Electronic steering
Parking brake type   Electromagnetic braking
Battery replacement method   Lifting type
