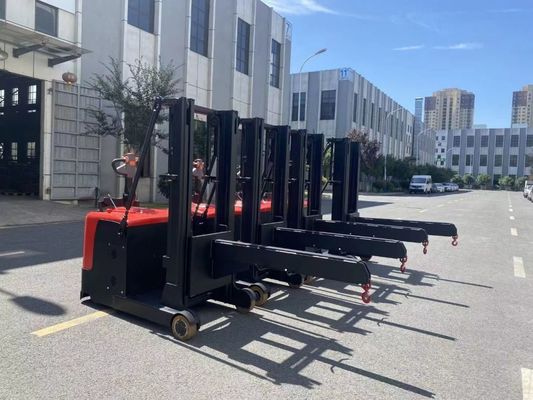

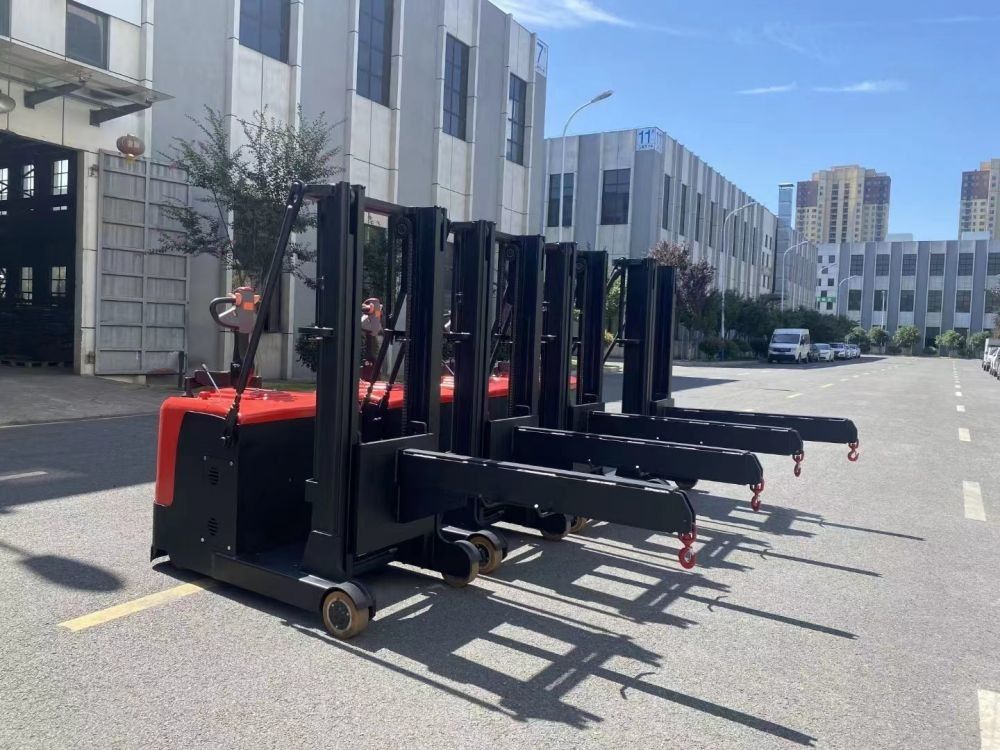

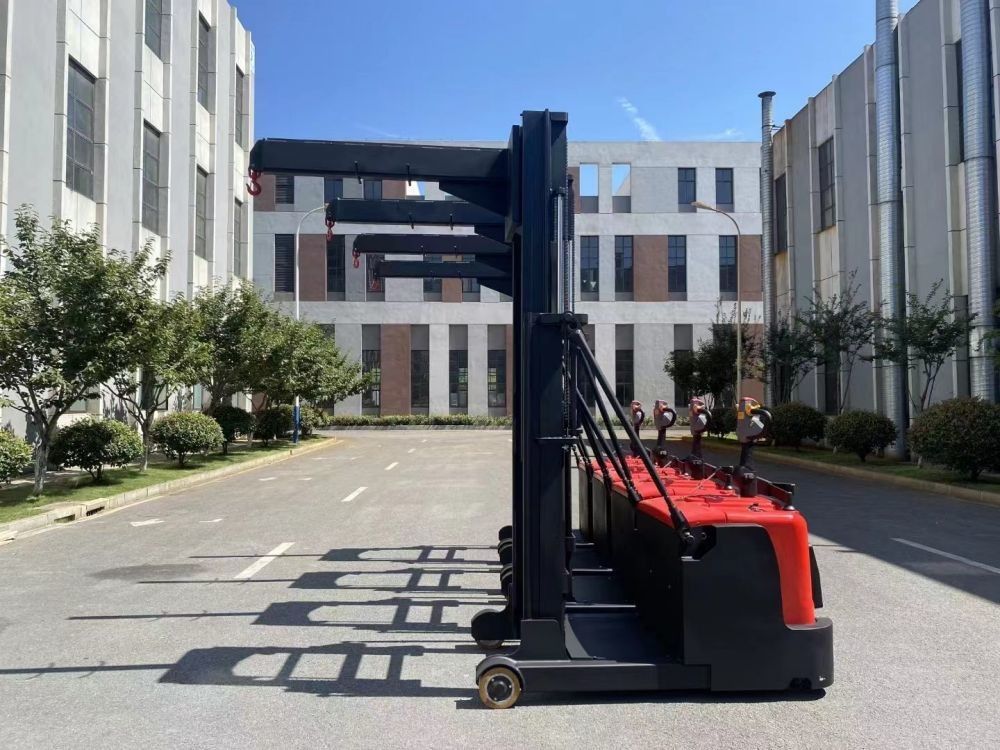

Boom Type Electric Pallet Forklift Counter Balance Lift Truck Two Section Gantry

Boom Type Electric Pallet Forklift Counter Balance Lift Truck Two Section Gantry

  • High Light

    Boom Type Electric Pallet Forklift

    ,

    Electric Pallet Forklift Counter Balance

    ,

    Counter Balance Lift Truck Two Section

  • Name
    Electric Pallet Forklift
  • Power Type
    Electric
  • Operation Mode
    Walking Type
  • Parking Brake Type
    Electromagnetism
  • Tire Type (front/ Rear)
    Polyurethane
  • Number Of Tires
    4/1X+1
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD10YC
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Boom Type Electric Pallet Forklift Counter Balance Lift Truck Two Section Gantry

OEM/ODM Boom Type Counter Balanced Forklift Rated Load 1000 KG Two Section Gantry Single Stage Lifting Arm



Why choose our products? You can obtian the following advantages:


Advantages:

  • Dual oil cylinders, wide field mast
  • CURTIS brand drive control system in the United States
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Bucher brand low noise hydraulic pump from Germany
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long life induction switch
  • Body damping system, pedal and handle damping

Security:


  • Automatic deceleration device for bends
  • Fork automatically decelerates at high position
  • Driving stepless speed regulation
  • Multiple automatic protection systems for controllers
  • Emergency reverse collision prevention/emergency braking device
  • Cylinder safety shut-off valve



Model   CDD10B CDD15B
Power type   Battery
Operation mode   Standing type
Rated load kg 1000 1500
Load center distance mm 500
Installation level and form   2A 2A
Tire type   Polyurethane
Tire specification (front wheel) mm Φ210*85
Tire specification (drive wheel) mm Φ230*75
Tire specification (multidirectional wheel) mm Φ130*55
Number of tires (front/ rear) (X= drive wheel)   2/1X+2
Mast type   Duplex mast
Mast tilt angle (forward tilt/ backward tilt) (optional) ° 3/5
Standard lifting height mm 2500
Free lifting height mm /
Height of mast closed mm 1830
Height of mast open (incl. blocking rack) mm 3485
Min. ground clearance mm 70
Overall length (pedal deployment/ retraction) mm 3200/2695 3300/2795
Wheelbase mm 1200 1300
Front overhang distance mm 145
Overall width (front/ rear) mm 990/ 900
Track width (front/ rear) mm 895/ 684
Fork specifications mm 1070*100*35
Outside distance of fork mm 240-700
Channel width (1000*1200 tray) (pedal unfold/ fold) mm 3420/ 3000 3510/ 3095
Turning radius (pedal unfold/ fold) mm 1920/ 1500 2010/ 1595
Walking speed (full load/ no load) km/h 4.0/5.0
Lifting speed (full load/ no load) mm/s 80/150 77/150
Descent speed (full load/ no load) mm/s 160/105 200/105
Climbing gradient (S2-5) (full load/ no load) % 6/8 5/8
Drive motor power kw 1.5
Lifting motor power kw 2.2 3
Battery (voltage/ capacity) v/ah 24/210
Battery weight kg 200
Vehicle weight (incl. battery) kg 1815 1885
Steering type   Electronic steering
Parking brake type   Electromagnetic braking
Battery replacement method   Lifting type
