OEM/ODM Forklift Counter Balance With Refrigerator Clip Electronic Steering Pedal

OEM/ODM Forklift Counter Balance With Refrigerator Clip Electronic Steering Pedal

  • High Light

    ODM Forklift Counter Balance

    ,

    OEM Forklift Counter Balance

    ,

    counter balance forklift Refrigerator Clip

  • Name
    Electric Pallet Forklift
  • Power Type
    Electric
  • Operation Mode
    Walking Type
  • Parking Brake Type
    Electromagnetism
  • Tire Type (front/ Rear)
    Polyurethane
  • Number Of Tires
    4/1X+1
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD05
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

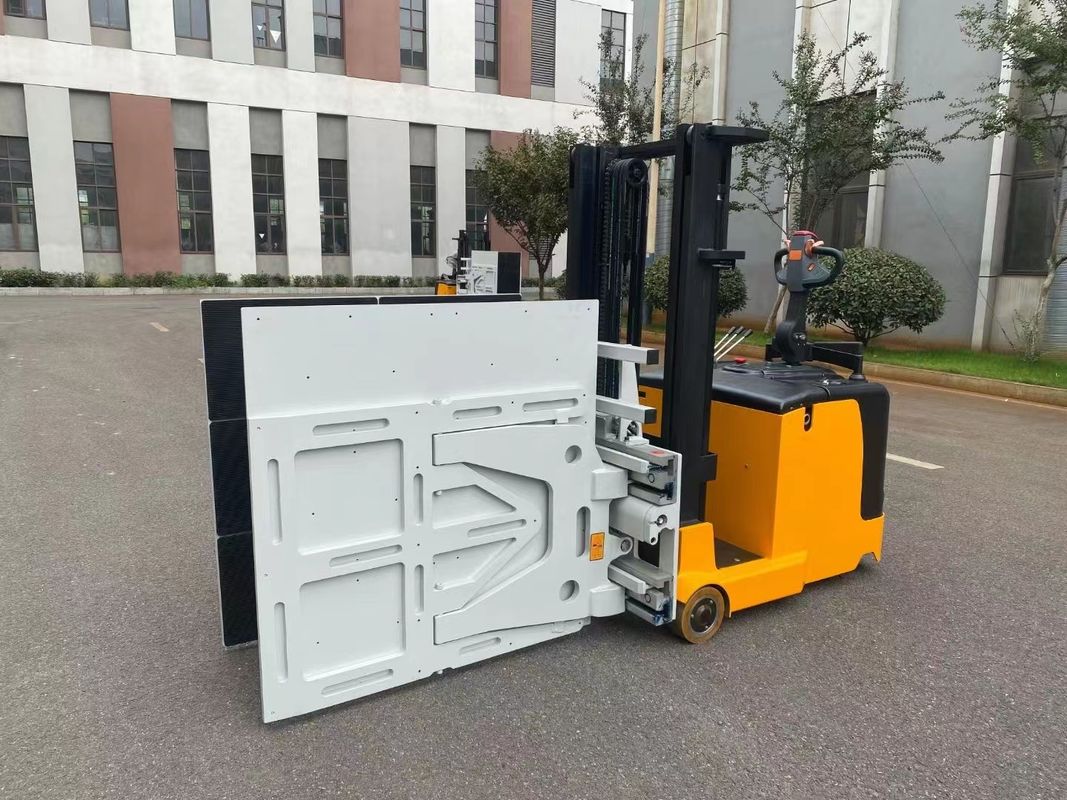

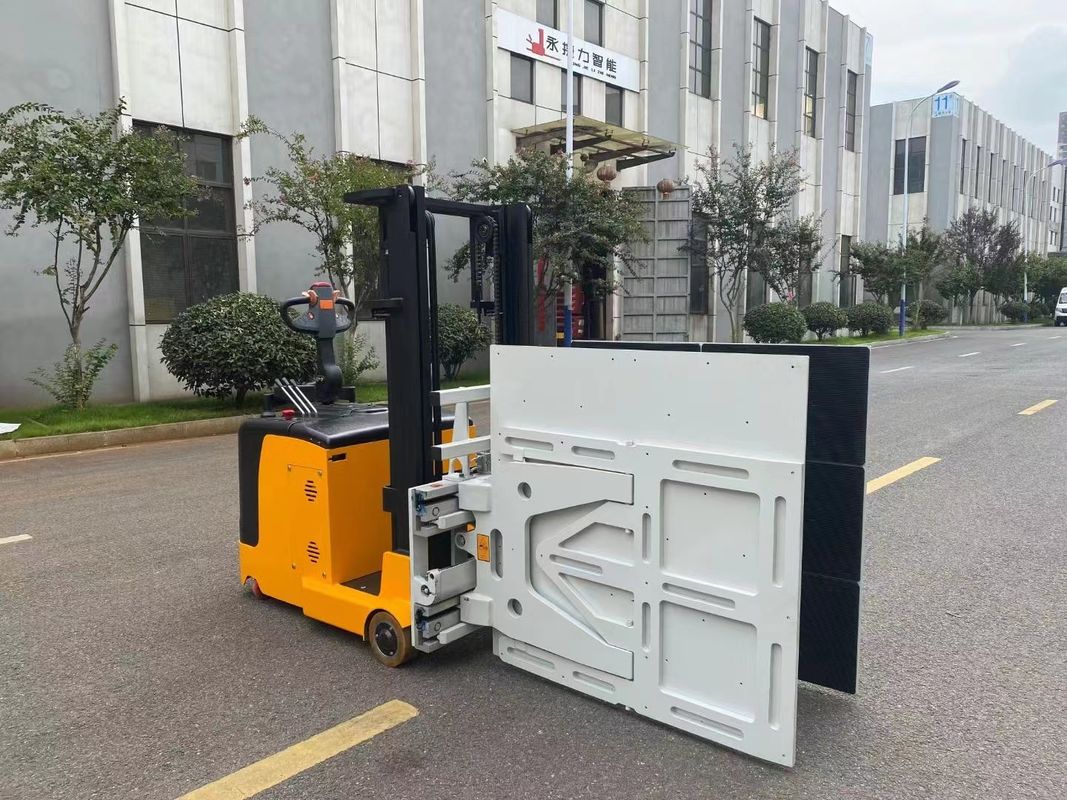

OEM/ODM Forklift Counter Balance With Refrigerator Clip Electronic Steering Pedal

​

OEM/ODM Load 450 KG Balanced Forklift With Refrigerator Clip Electronic Steering Pedal Protection Arm Out Door Work



Lifting height: 2500mm

Arm tension range: 550-1720mm

Lateral displacement distance: ± 60mm

Plywood length: 1200mm

Plywood height: 1200mm

Electronic steering pedal protection arm

Model   CDD05
Power type   Battery
Operation mode   Standing type
Rated load kg 450
Load center distance mm 500
Installation level and form   2A 2A
Tire type   Polyurethane
Tire specification (front wheel) mm Φ210*85
Tire specification (drive wheel) mm Φ230*75
Tire specification (multidirectional wheel) mm Φ130*55
Number of tires (front/ rear) (X= drive wheel)   2/1X+2
Mast type   Duplex mast
Mast tilt angle (forward tilt/ backward tilt) (optional) ° 3/5
Standard lifting height mm 2500
Free lifting height mm /
Height of mast closed mm 1830
Height of mast open (incl. blocking rack) mm 3485
Min. ground clearance mm 70
Overall length (pedal deployment/ retraction) mm 3200/2695 3300/2795
Wheelbase mm 1200 1300
Front overhang distance mm 145
Overall width (front/ rear) mm 990/ 900
Track width (front/ rear) mm 895/ 684
Fork specifications mm 1070*100*35
Outside distance of fork mm 240-700
Channel width (1000*1200 tray) (pedal unfold/ fold) mm 3420/ 3000 3510/ 3095
Turning radius (pedal unfold/ fold) mm 1920/ 1500 2010/ 1595
Walking speed (full load/ no load) km/h 4.0/5.0
Lifting speed (full load/ no load) mm/s 80/150 77/150
Descent speed (full load/ no load) mm/s 160/105 200/105
Climbing gradient (S2-5) (full load/ no load) % 6/8 5/8
Drive motor power kw 1.5
Lifting motor power kw 2.2 3
Battery (voltage/ capacity) v/ah 24/210
Battery weight kg 200
Vehicle weight (incl. battery) kg 1815 1885
Steering type   Electronic steering
Parking brake type   Electromagnetic braking
Battery replacement method   Lifting type
