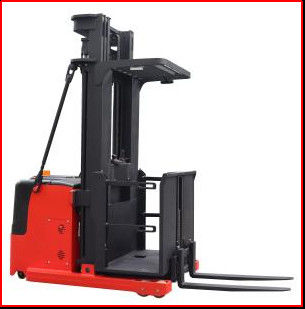

1 ton Order Picker Electric Pallet Jack Electromagnetic Hydraulic Valve
-
Highlight
1 Ton Order Picker Electric
,Order Picker Electric Hydraulic Valve
,Order Picker Pallet Jack Electromagnetic
-
Drive MotorAC
-
Power SupplyBattery
-
Tyre MaterialPolyurethane
-
Steering TypeElectronic Steering
-
Brake SystemElectromagnetic
-
Brake ModeLever Operation
-
Place of OriginANHUI, CHINA
-
Brand NameYONGJIELI
-
CertificationCE
-
Model NumberCXD10A
-
Minimum Order Quantity1 SETS
-
PriceUSD2470.00 - USD4700.00
-
Packaging DetailsEXPORT PACKING
-
Delivery Time10 WORK DAYS
-
Payment TermsL/C, T/T, D/A, D/P, Western Union
-
Supply Ability50 SETS PER MONTH
1 ton Order Picker Electric Pallet Jack Electromagnetic Hydraulic Valve
1.0 Ton Order Picking Forklift Truck OEM&ODM American CURTIS Brand Electromagnetic Hydraulic Valve
Why choose our products ? You will obtian the following advantages:
Advantage:
- Wide angle view, high-strength shock absorption mast
- American CURTIS brand drive control system
- Vertical drive system
- Electronic steering, portable, mute
- Integrated low-noise hydraulic pump
- Electromagnetic hydraulic valve
- AC drive, brushless, motor maintenance free
- Electromagnetic and regenerative braking system
- Lifting limit, integrated thumb switch
- Body damping system
Security:
- Curve automatic deceleration device
- Drive stepless speed regulation
- Controller multiple brake protection system
- Leisure backrest/ emergency braking device
AC EPS
Low noise hydraulic
Optional lithium battery
|
Model |
CXD10-45 | |
| Rated lifting capacity | kg | 1000 |
| Load center | mm | 450 |
| Power type | Electric | |
| Operator type | Standing | |
| Total weight | 2600 | |
| Drive wheel | mm | φ230×75 |
| Front wheel | mm | φ150×90 |
| Auxiliary wheel | φ130×55 | |
| Lifting height | mm | 4260 |
| Max. lifting height of fork | mm | 4860 |
| Overall length | mm | 2830 |
| Overall width | mm | 1160 |
| Height of mast closed | 2310 | |
| Maximum height when rising to the maximum | mm | 6510 |
| Height of roof protection frame | mm | 2250 |
| Min. ground clearance | mm | 50 |
| Min. height of operating table from the ground | mm | 240 |
| Auxiliary lifting height | mm | 600(optional) |
| Max. lifting height of operating table | mm | 4500 |
| Fork length | mm | 920*100*40 |
| Fork outer width | mm | 680 |
| Turning Radius | mm | 1735 |
| Right angle channel (1200 horizontal x 1000) | 3285 | |
| Traveling speed (full load/ no load) | km/h | 4/5 |
| Climbing gradient | % | 0 |
| Braking mode | Electromagnetism | |
| Drive motor | v/kw | 24/1.6 |
| Lifting motor | v/kw | 24 /3.0 |
| Battery | v/ah | 24/360 |
| Lifting speed (no load/ full load) | mm/s | 115/100 |
| Descent speed (no load/ full load) | mm/s | 125/200 |
