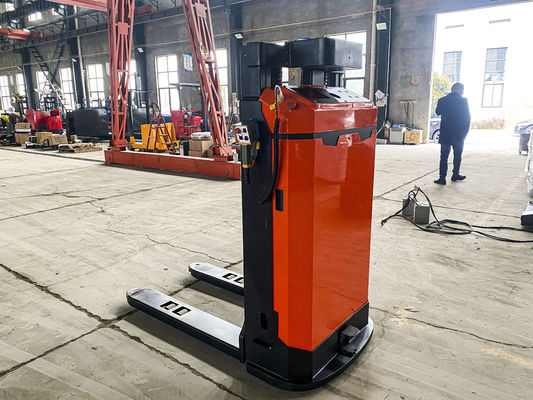

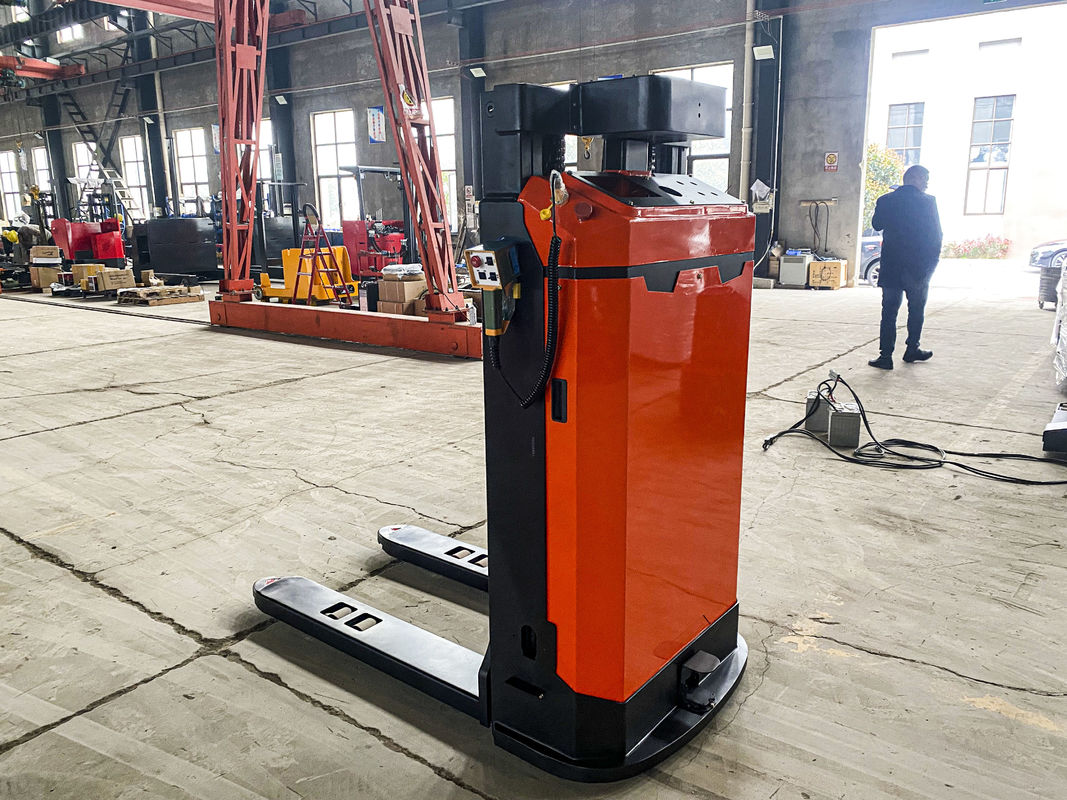

1.5 Ton AGV Automated Guided Forklift Short Wheelbase Ultra Short Body

1.5 Ton AGV Automated Guided Forklift Short Wheelbase Ultra Short Body

  • High Light

    1.5 Ton Automated Guided Forklift

    ,

    Automated Guided Forklift Short Wheelbase

    ,

    agv forklift Short Body

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD15C
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

1.5 Ton AGV Automated Guided Forklift Short Wheelbase Ultra Short Body

1.5 Ton KG AGV Forklift Body Non-standard Customization Short Wheelbase Ultra Short Body CURTIS Drive Control System

Name   AGV forklift body
Model   CDD15J-16
Rated load kg 1500
Load center distance mm 500
wheel base mm 895
Vehicle weight kg 850
Tire type   Polyurethane
Mast type   Duplex mast
Number of cylinders piece 2
Bearing wheel mm 85*70
Drive wheel mm 230*75
Auxiliary wheel mm 100*50
Lifting height mm 1600
Overall length mm 1600
Overall width mm 890
Overall height (including laser fixed seat) mm 1950
Fork size mm 1150*190*65
Outside width of fork mm 780
Min. ground clearance mm 29
Turning radius (Wa) mm 1140
Right angle stacking channel width (1200*1000, 1200 horizontal) mm 2000 (+150)
Driving speed (full load/ no load) km/h 5/5.5
Lifting speed (full load/ no load) mm/s 90/120
Descent speed (full load/ no load) mm/s 140/110
Max. climbing capacity(full load/ no load)   5/8
Braking mode   Electromagnetic type
Drive motor power kw 1.5
Lifting motor power kw 2 2
Lithium battery, voltage/ rated capacity v/ah 24/160
Battery weight   Electromagnetic braking
Steering system   Electronic steering
