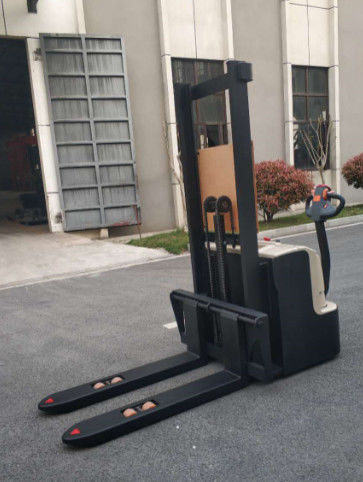

2.0 Ton Walking Pallet Stacker High Strength Fork Legs and Forks Narrow Channel Operating Handle
| Model | CDD20D | |
| Power type | Electric | |
| Operation mode | Walking type | |
| Rated load | kg | 2000 |
| Load center distance | mm | 500 |
| Tire type (front/ rear) | Polyurethane | |
| Number of tires | 4/1X+1 | |
| Mast type | Duplex mast | |
| Standard lifting height | mm | 3000 |
| Height of mast closed | mm | 2080 |
| Mast height during lifting | mm | 3565 |
| Minimum ground clearance of cargo depot | mm | 85 |
| Overall length | mm | 2030 |
| Wheelbase | mm | 1430 |
| Overall width | mm | 850 |
| Track width (front/ rear) | mm | 490/545 |
| Fork specifications | mm | 1150*190*65 |
| Fork side outer distance | mm | 680/560 |
| Turning radius | mm | 1645 |
| Channel width (1200x1000 pallets, 1200 horizontal) | mm | 2515 |
| Travel speed (full load/ no load) | km/h | 4.0/4.5 |
| Lifting speed (full load/ no load) | mm/s | 80/125 |
| Descent speed (full load/ no load) | mm/s | 160/105 |
| Gradient (full load/ no load) | % | 6/10 |
| Drive motor power | kw | 1.5 |
| Type of lifting motor | DC | |
| Lifting motor power | kw | 2.2/3.0 |
| Battery voltage/ capacity | v/ah | 24/100 |
| Battery weight | kg | 75 |
| Service weight (incl. battery) | kg | 850 |
| Steering type | Manual operation | |
| Parking brake type | Electromagnetism | |
| Parking brake operation mode | Handle operation |
