Narrow Aisle Optional Match Electric Pallet Forklift With Side Shift

Narrow Aisle Optional Match Electric Pallet Forklift With Side Shift

  • High Light

    Electric Pallet Forklift Side Shift

    ,

    Narrow Aisle Electric Pallet Forklift

  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD15
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Narrow Aisle Optional Match Electric Pallet Forklift With Side Shift

Why choose our products?  You can obtian the following advantages:



Advantages

  • Dual oil cylinders, wide field mast
  • CURTIS brand drive control system in the United States
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Bucher brand low noise hydraulic pump from Germany
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long life induction switch
  • Body damping system, pedal and handle damping

Security:



  • Automatic deceleration device for bends
  • Fork automatically decelerates at high position
  • Driving stepless speed regulation
  • Multiple automatic protection systems for controllers
  • Emergency reverse collision prevention/emergency braking device
  • Cylinder safety shut-off valve

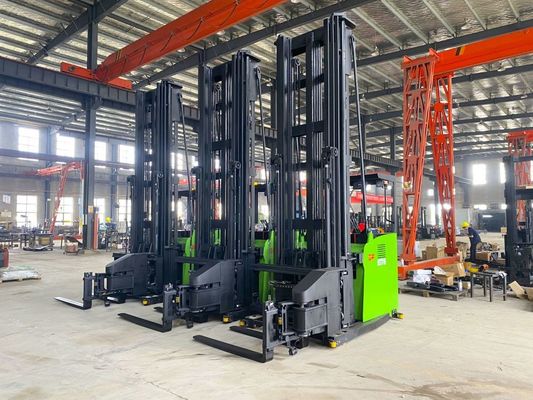

1.5 Ton Customization Narrow Aisle Optional Match Fork Electric Spin Side Shift Pallet Forklift

Product parameters:
Name   3-Way Pallet Stacker
Model   CSD15SQ
Power type   Storage battery
Driving mode   Side stand-on type
Rated load kg 1500
Load center distance mm 500
Front overhang distance mm 665
wheelbase mm 1700
Vehicle weight (including battery) kg 5640
Tire type (drive side/ load side)   Polyurethane PU
Tire size (load-bearing side) mm Φ140×127
Tire size (drive side) mm Φ400×165
Number of wheels (front/ rear) (X= drive wheel)   4/1X
Track width (bearing side) mm 1280
Closing height of gantry mm 2823
Free lifting height mm 1745
Lifting height mm 4500
Maximum height of gantry during lifting (including blocking rack) mm 5555
Height of roof protection frame mm 2260
Seat height mm 1070
Overall length mm 3000
Overall width mm 1550
Fork size mm 1070*125*50
Installation level   Class II type B
Outside distance of fork mm 400~780
Ground clearance of gantry mm 40
Stacking channel width (pallet 1000x1200) mm 1600
Turning radius mm 1850
Driving speed (full load/ no load) km/h 7.5/8
Lifting speed (full load/ no load) mm/s 180/315
Braking mode   Electromagnetic type
Drive motor power (S2-60min) kw 5.5 AC
Lifting motor power (S3-15%) kw 8.6 AC
Battery, voltage/ rated capacity v/ah 48/420
Battery weight kg 740
Steering system   Electronic steering
Battery replacement method   Side pull type
