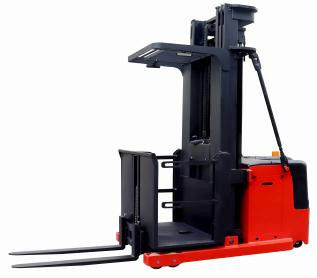

1.5 Ton Walking Pallet Stacker Narrow Aisle Electric Spin Side Shift

1.5 Ton Walking Pallet Stacker Narrow Aisle Electric Spin Side Shift

  • High Light

    1.5 Ton Walking Pallet Stacker

    ,

    Walking Pallet Stacker Narrow Aisle

  • Name
    Electric Pallet Forklift
  • Power Type
    Electric
  • Operation Mode
    Walking Type
  • Parking Brake Type
    Electromagnetism
  • Tire Type (front/ Rear)
    Polyurethane
  • Number Of Tires
    4/1X+1
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD15
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

1.5 Ton Walking Pallet Stacker Narrow Aisle Electric Spin Side Shift

1.5 Ton Narrow Aisle Optional Match Fork Electric Spin Side Shift Pallet Forklift



Advantage:

  • Double oil cylinders, wide view mast
  • American CURTIS brand drive control system
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Germany Bucher brand low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long-life inductive switch
  • Body damping system, pedal and handle damping

Security:

  • Curve automatic deceleration device
  • Automatic deceleration of fork in high cargo position
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device
  • Cylinder safety shut-off valve

              AC EPS

Low noise hydraulic

High automatic deceleration

Optional lithium battery



Provide non-standard customization

Product parameters:
Name   3-Way Pallet Stacker
Model   CSD15
Power type   Storage battery
Driving mode   Side stand-on type
Rated load kg 1500
Load center distance mm 500
Front overhang distance mm 665
wheelbase mm 1700
Vehicle weight (including battery) kg 4650
Tire type (drive side/ load side)   Polyurethane PU
Tire size (load-bearing side) mm Φ140×127
Tire size (drive side) mm Φ400×165
Number of wheels (front/ rear) (X= drive wheel)   4/1X
Track width (bearing side) mm 1280
Closing height of gantry mm 2565
Free lifting height mm 0
Lifting height mm 3000
Maximum height of gantry during lifting (including blocking rack) mm 4040
Height of roof protection frame mm 2260
Seat height mm 1070
Overall length mm 3000
Overall width mm 1550
Fork size mm 1070*125*50
Installation level   Class II type B
Outside distance of fork mm 400~780
Ground clearance of gantry mm 40
Stacking channel width (pallet 1000x1200) mm 1600
Turning radius mm 1850
Driving speed (full load/ no load) km/h 7.5/8
Lifting speed (full load/ no load) mm/s 180/315
Braking mode   Electromagnetic type
Drive motor power (S2-60min) kw 5.5 AC
Lifting motor power (S3-15%) kw 8.6 AC
Battery, voltage/ rated capacity v/ah 48/420
Battery weight kg 740
Steering system   Electronic steering
Battery replacement method   Side pull type
