Customization Storage battery Electric Walkie Stacker 1 Ton

Customization Storage battery Electric Walkie Stacker 1 Ton

  • High Light

    Electric Walkie Stacker 1 Ton

    ,

    Storage Battery Electric Walkie Stacker

  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD10
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

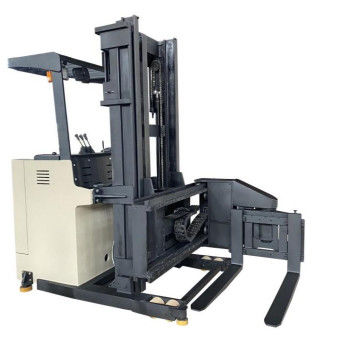

Customization Storage battery Electric Walkie Stacker 1 Ton

1.0 Ton Customization Narrow Aisle Optional Match Fork Electric Spin Side Shift Pallet Forklift

Product parameters:
Name   3-Way Pallet Stacker
Model   CSD10SQ
Power type   Storage battery
Driving mode   Side stand-on type
Rated load kg 1000
Load center distance mm 500
Front overhang distance mm 655
wheelbase mm 1605
Vehicle weight (including battery) kg 5270
Tire type (drive side/ load side)   Polyurethane PU
Tire size (load-bearing side) mm Φ140×100
Tire size (drive side) mm Φ343×135
Number of wheels (front/ rear) (X= drive wheel)   4/1X
Track width (bearing side) mm 1210
Closing height of gantry mm 2750
Free lifting height mm 1780
Lifting height mm 4500
Maximum height of gantry during lifting (including blocking rack) mm 5450
Height of roof protection frame mm 2240
Seat height mm 1070
Overall length mm 2890
Overall width mm 1450
Fork size mm 1070*100*35
Installation level   Class II type B
Outside distance of fork mm 230~760
Ground clearance of gantry mm 40
Stacking channel width (pallet 1000x1200) mm 1480
Turning radius mm 1750
Driving speed (full load/ no load) km/h 8/9
Lifting speed (full load/ no load) mm/s 180/315
Braking mode   Electromagnetic type
Drive motor power (S2-60min) kw 4.5 AC
Lifting motor power (S3-15%) kw 6.3 DC
Battery, voltage/ rated capacity v/ah 48/400
Battery weight kg 675
Steering system   Electronic steering
Battery replacement method   Side pull type
