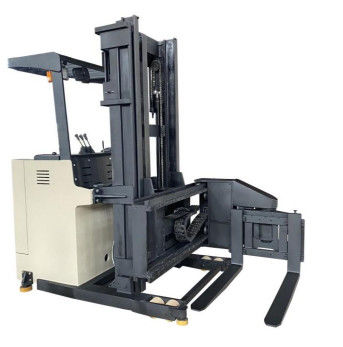

1000 KG Narrow Aisle Optional Match Fork Electric Spin Side Shift Pallet Forklift
Advantage:
Security:
AC EPS
LED headlights
Side pull battery
Cylinder safety shut-off valve
Optional fork electric rotation and side shift
Provide non-standard customization
| Name | 3-Way Pallet Stacker | |
| Model | CSD10 | |
| Power type | Storage battery | |
| Driving mode | Side stand-on type | |
| Rated load | kg | 1000 |
| Load center distance | mm | 500 |
| Front overhang distance | mm | 655 |
| wheelbase | mm | 1605 |
| Vehicle weight (including battery) | kg | 4760 |
| Tire type (drive side/ load side) | Polyurethane PU | |
| Tire size (load-bearing side) | mm | Φ140×100 |
| Tire size (drive side) | mm | Φ343×135 |
| Number of wheels (front/ rear) (X= drive wheel) | 4/1X | |
| Track width (bearing side) | mm | 1210 |
| Closing height of gantry | mm | 2570 |
| Free lifting height | mm | 0 |
| Lifting height | mm | 3000 |
| Maximum height of gantry during lifting (including blocking rack) | mm | 4060 |
| Height of roof protection frame | mm | 2240 |
| Seat height | mm | 1070 |
| Overall length | mm | 2892 |
| Overall width | mm | 1450 |
| Fork size | mm | 1070*100*35 |
| Installation level | Class II type B | |
| Outside distance of fork | mm | 230~760 |
| Ground clearance of gantry | mm | 40 |
| Stacking channel width (pallet 1000x1200) | mm | 1480 |
| Turning radius | mm | 1750 |
| Driving speed (full load/ no load) | km/h | 8/9 |
| Lifting speed (full load/ no load) | mm/s | 180/315 |
| Braking mode | Electromagnetic type | |
| Drive motor power (S2-60min) | kw | 4.5 AC |
| Lifting motor power (S3-15%) | kw | 6.3 DC |
| Battery, voltage/ rated capacity | v/ah | 48/400 |
| Battery weight | kg | 675 |
| Steering system | Electronic steering | |
| Battery replacement method | Side pull type |
