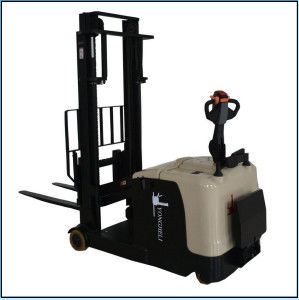

1500 KG Standard Electric Pallet Forklift Wiith Counterweight Electric Reach Truck (Simple type)

1500 KG Standard Electric Pallet Forklift Wiith Counterweight Electric Reach Truck (Simple type)

  • Name
    Electric Pallet Forklift
  • Power Type
    Electric
  • Operation Mode
    Walking Type
  • Parking Brake Type
    Electromagnetism
  • Tire Type (front/ Rear)
    Polyurethane
  • Number Of Tires
    4/1X+1
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CQD15A
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

1500 KG Standard Electric Pallet Forklift Wiith Counterweight Electric Reach Truck (Simple type)

Specification:



Counterweight forklift truck
Rated load: 1.0T
Lifting height: 1.0
Load center: 500
Fork size: 1070*100*35
Outer distance of fork: 240~700
Driving power: 1.5
Lifting power: 2.2/3.0
Battery: 24V/210AH



Advantage:

  • Double oil cylinders, wide view mast
  • Fork tilts forward and backward
  • Multi function handle
  • Electronic steering, lightweight
  • Imported low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long-life inductive switch
  • Body damping system/ pedal, handle damping



Secutiry:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device
  • Cylinder safety shut-off valve

AC EPS

Low noise hydraulic

Optional lithium battery

Standard fork tilts forward and backward





Model   CQD15A CQD20A
Power type   Battery
Driving mode   Stand-on type
Rated load kg 1500 2000
Load center distance mm 500
Front overhang distance mm 145
Wheelbase mm 1400 1500
Vehicle weight kg 2000 2150
Tire type   Polyurethane
Bearing wheel mm 210*85
Drive wheel mm 230*75
Auxiliary wheel mm 130*55
Track width, drive side mm 684
Track width, bearing side mm 990
Height of mast closed mm 1830
Free lifting height mm /
Fork tilt forward and backward ° 3/5
Lifting height mm 2500
Max. height of mast open mm 3485
Panel height mm 195
Leg height mm 235
Overall length (pedal deployment) mm 2345/2850 2445/2950
Overall width mm 900/1084
Fork size mm 1070/100/35 1070/122/40
Shelf width mm 1000
Outside width of fork mm 240-700
Inner spacing of the legs mm 802
Forward position mm 450 550
Mast clearance mm 70
Turning radius mm 1670/2100 1785/2200
Driving speed(full load/ no load) km/h 4.0/5.5
Lifting speed(full load/ no load) mm/s 80/150 75/150
Descent speed(full load/ no load) mm/s 200/105 240/105
Max. climbing capacity(full load/ no load) % 5/10 5/8
Braking mode   Electromagnetic type
Drive motor power kw 1.5 2.2
Lifting motor power kw 3.0
Battery, voltage/ rated capacity v/ah 24/210
Battery weight kg 200
Steering system   Electronic steering
Braking system   Electromagnetic braking




The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
