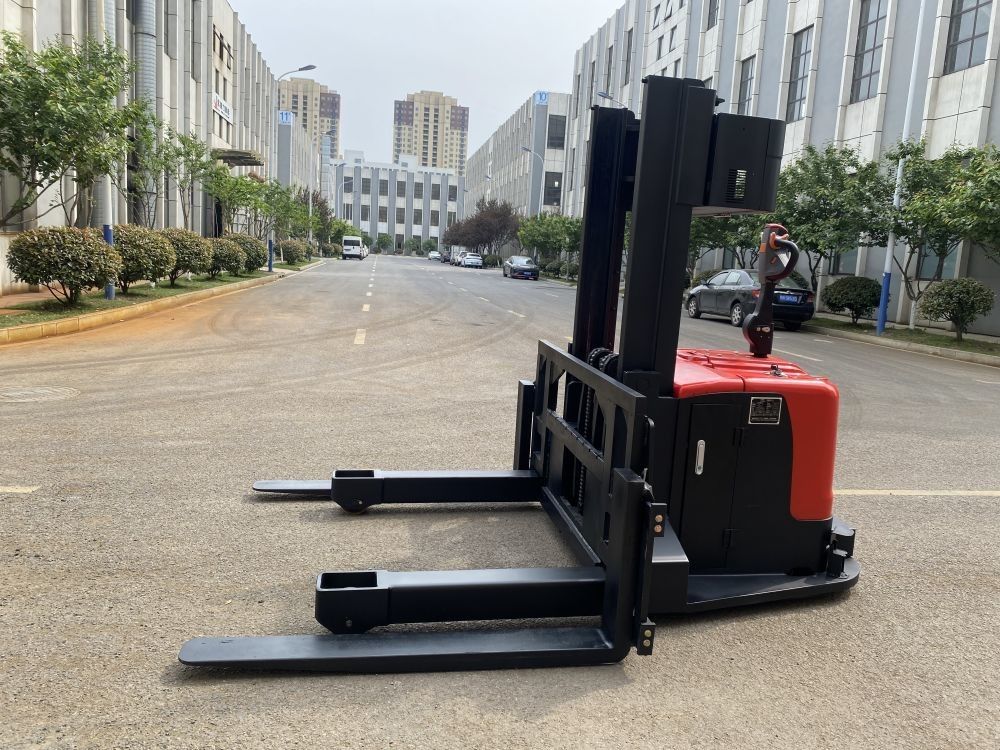

Buggy Rough Terrain Electric Pallet Forklift AC Drive Motor Strong Climbing Force

Buggy Rough Terrain Electric Pallet Forklift AC Drive Motor Strong Climbing Force

  • High Light

    Rough Terrain Electric Pallet Forklift

    ,

    Electric Pallet Forklift Strong Climbing

  • Name
    Electric Pallet Forklift
  • Power Type
    Electric
  • Operation Mode
    Walking Type
  • Parking Brake Type
    Electromagnetism
  • Tire Type (front/ Rear)
    Polyurethane
  • Number Of Tires
    4/1X+1
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD15Y
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Buggy Rough Terrain Electric Pallet Forklift AC Drive Motor Strong Climbing Force



Non-standard Buggy Rough Terrain Pallet Stacker AC Drive Motor Strong Climbing Force

Advantage:

  • Short wheelbase, ultra short body
  • CURTIS brand drive control system in the USA
  • Integrated handle for debugging by wire
  • Solenoid hydraulic valve, lowering proportional valve
  • Low noise hydraulic pump, hydraulic pump control
  • CAN communication, lithium battery
  • Navigator fixed base
  • Various induction switch brackets
  • Body damping system



Security:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple brake protection system
  • Emergency braking device
  • Cylinder safety shut-off valve
  • Blue light warning

AC EPS

Low noise hydraulic

Power type   Battery
Driving mode   Walking type
Rated load kg 1500
Load center mm 600
Dead weight kg 785
Tyre   Solid rubber wheel
Drive wheel size mm Φ300*80
Bearing wheel size mm Φ406*110
Total height mm 2130
Lifting height mm 1600
Fork height above the ground (minimum) mm 60
Height of operating handle from the ground mm 1320
Overall length mm 1960
Overall width mm 1580
Fork length mm 1070
Fork adjustment range mm 240-720
Ground clearance of the whole vehicle mm 120
Inner width of the legs mm 1270
Turning radius mm 1555
Driving speed (full load/ no load) km/h 3.5/4.5
Lifting speed (full load/ no load) mm/s 13/25
Maximum climbing capacity (full load/ no load) % 8/10
Braking mode   Electromagnetic braking
Drive motor power kw AC1.5
Lifting motor power kw 2.2
Battery voltage/ capacity v/ah 24/100
Battery charger v/a 24/15
