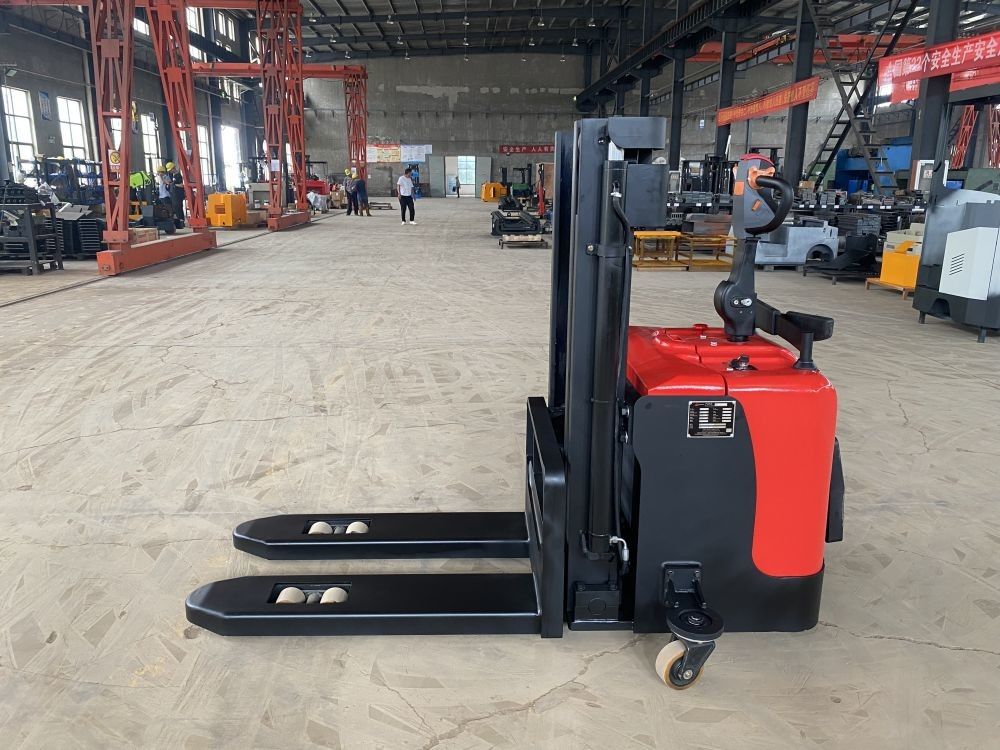

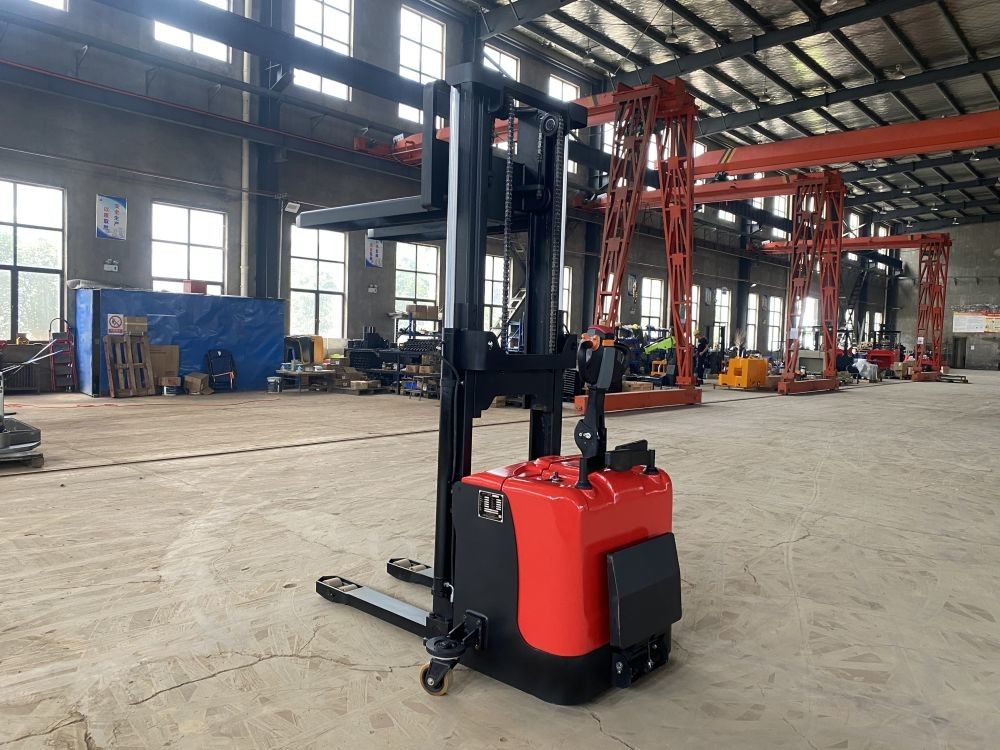

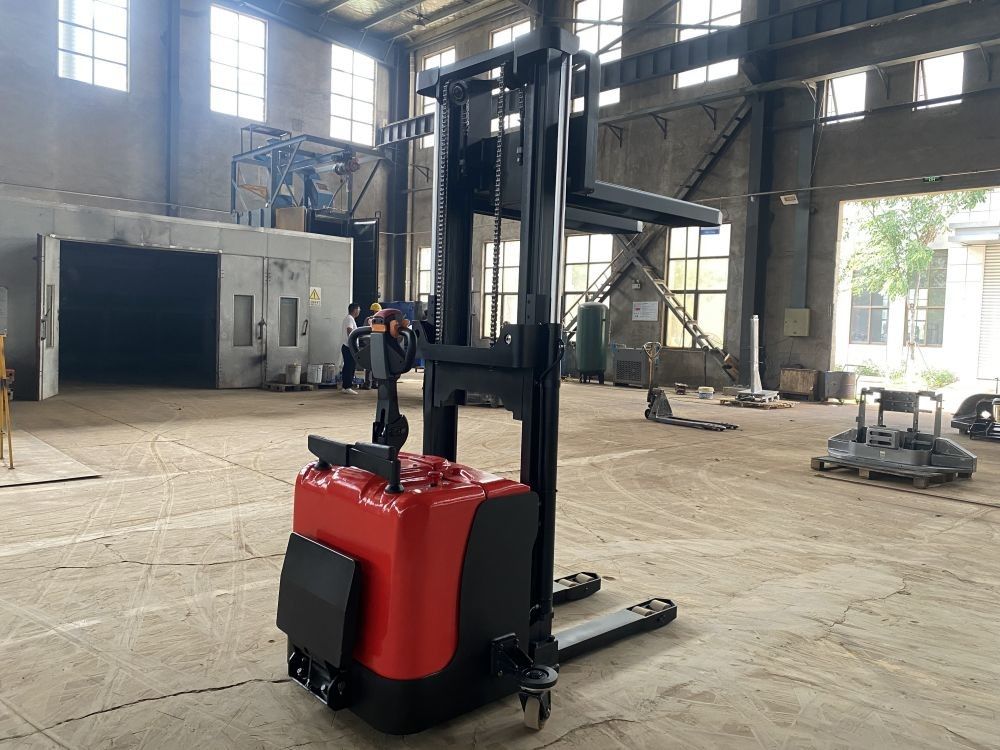

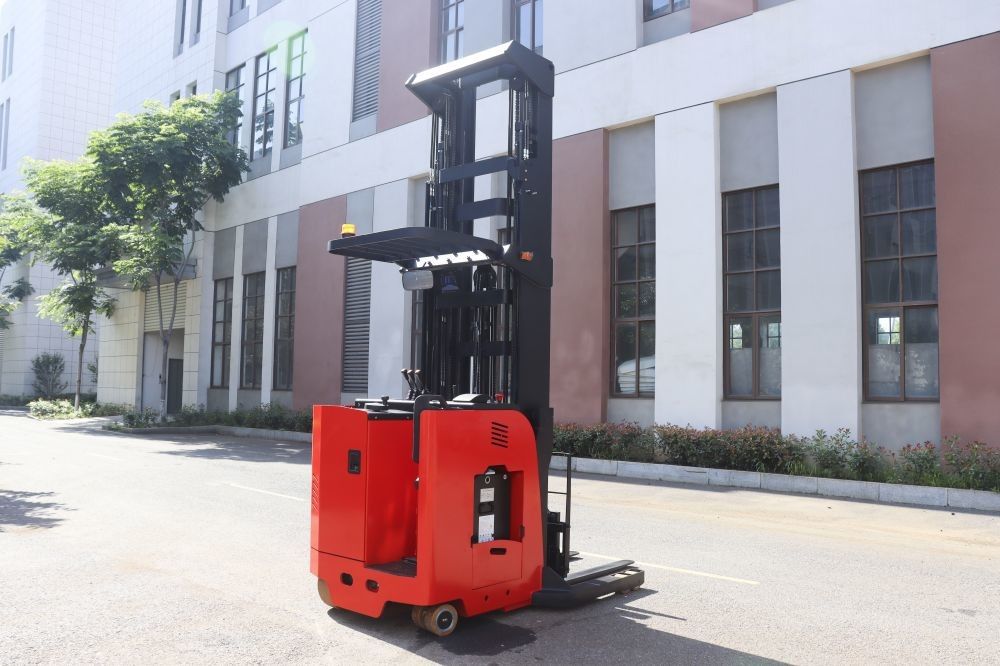

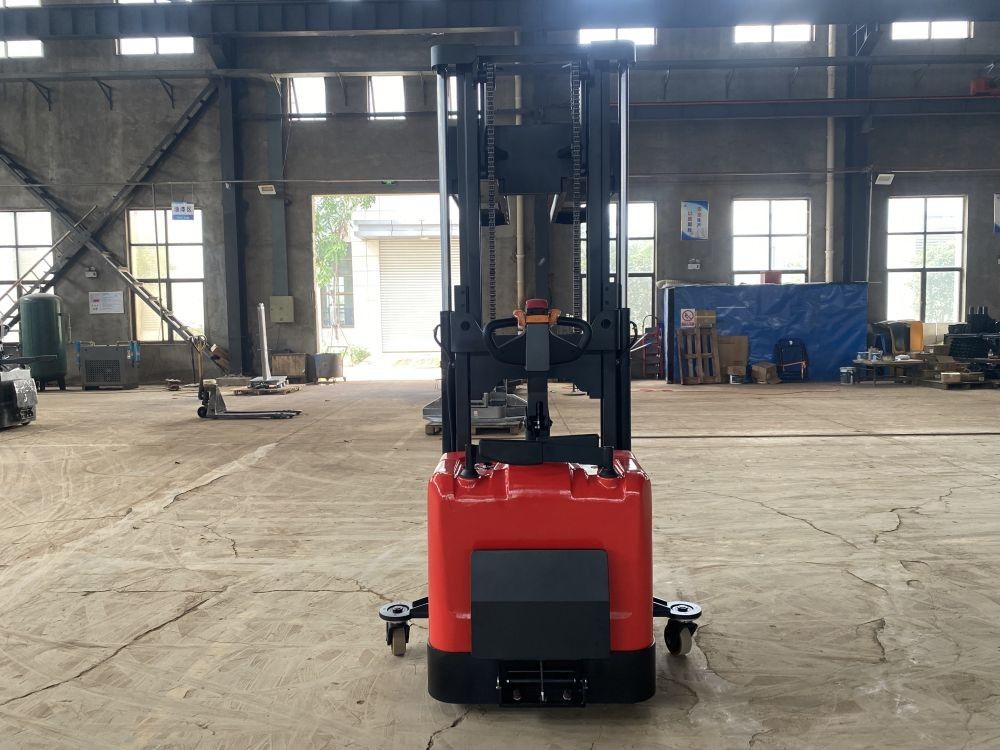

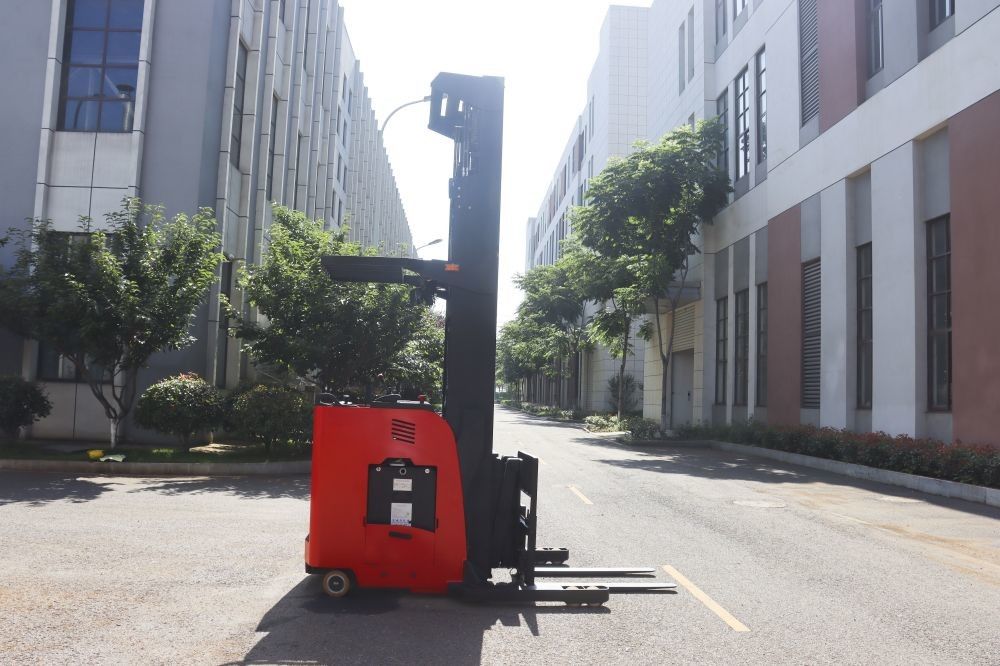

1500 KG Picking Electric Forklift Truck American CURTIS Brand Drive Control System On Both Sides of the Platform
The median elector selects the vehicle
Rated load: 1500 KG
Lift height:3000 MM
Three section gantry
On both sides of the platform, a pressure plate filled with water should be added
Raiden turned again, and the thumb opened the door
Lightning's magnetohydraulics are on the door
Advantage:
Safety:
Low noise hydraulic
Optional lithium battery
| Model | CXD15 | |
| Rated lifting capacity | kg | 1500 |
| Load center | mm | 450 |
| Power type | Electric | |
| Operator type | Standing | |
| Total weight | 3150 | |
| Drive wheel | mm | φ230×75 |
| Front wheel | mm | φ150×90 |
| Auxiliary wheel | φ130×55 | |
| Lifting height | mm | 6000 |
| Max. lifting height of fork | mm | 6000 |
| Overall length | mm | 3065 |
| Overall width | mm | 1342 |
| Height of mast closed | 2885 | |
| Maximum height when rising to the maximum | mm | 8250 |
| Height of roof protection frame | mm | 2250 |
| Min. ground clearance | mm | 50 |
| Min. height of operating table from the ground | mm | 240 |
| Auxiliary lifting height | mm | 0 |
| Max. lifting height of operating table | mm | 6240 |
| Fork length | mm | 920*120*40 |
| Fork outer width | mm | 680 |
| Turning Radius | mm | 1832 |
| Right angle channel (1200 horizontal x 1000) | 3370 | |
| Traveling speed (full load/ no load) | km/h | 4/5 |
| Climbing gradient | % | 0 |
| Braking mode | Electromagnetism | |
| Drive motor | v/kw | 24/2.2 |
| Lifting motor | v/kw | 24/3.0 |
| Battery | v/ah | 24/420 |
| Lifting speed (no load/ full load) | mm/s | 115/90 |
| Descent speed (no load/ full load) | mm/s | 125/230 |
