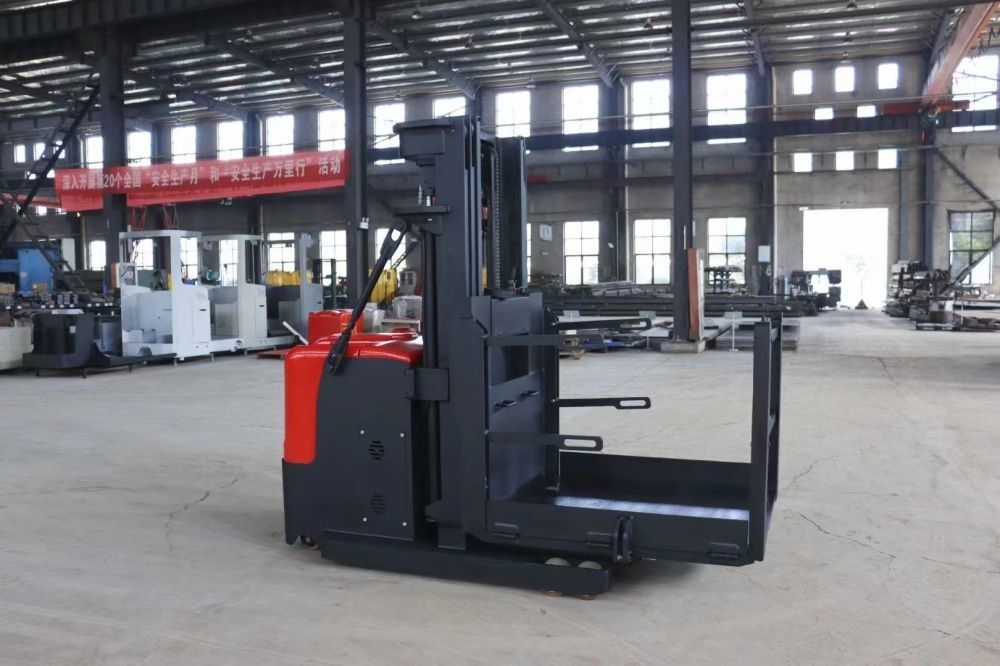

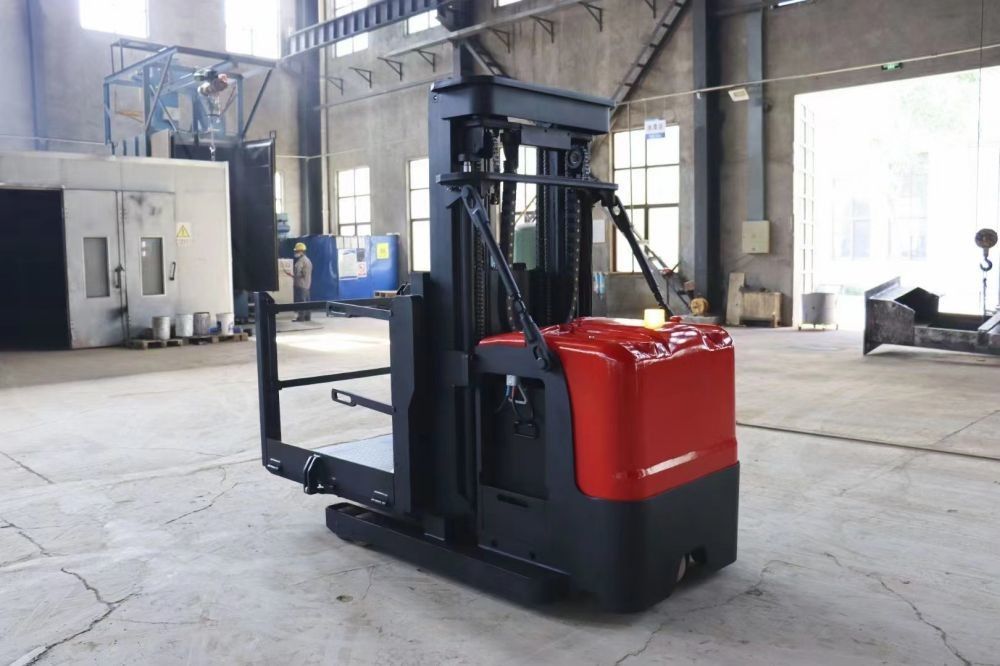

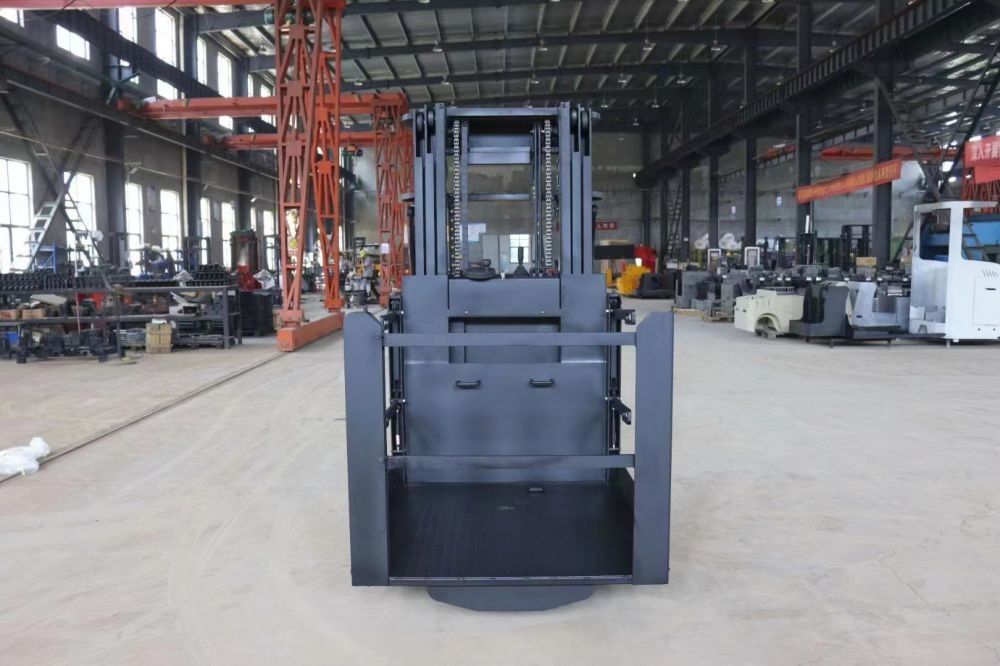

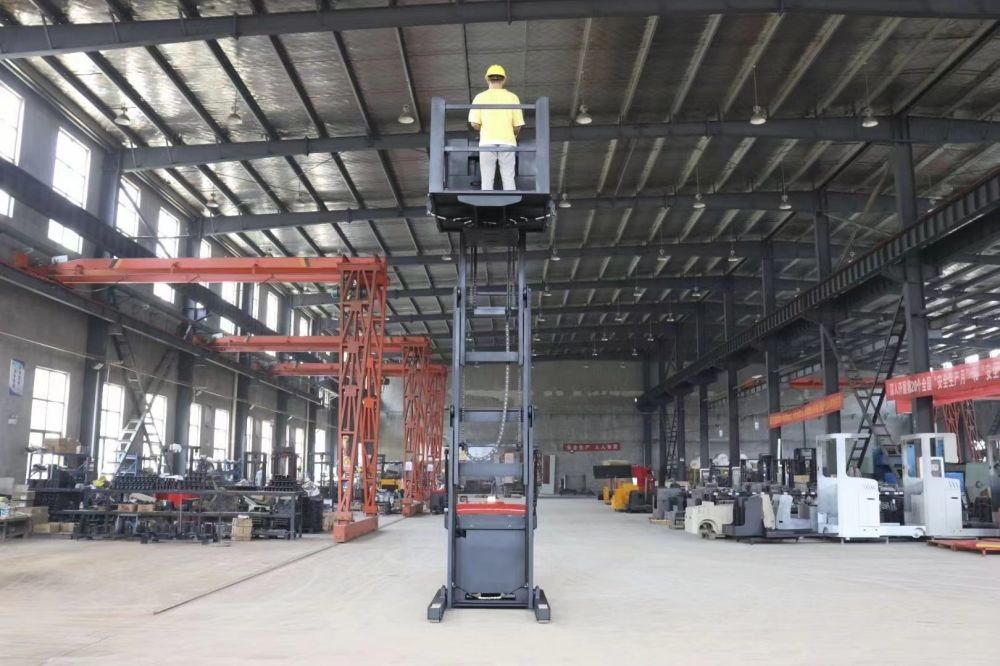

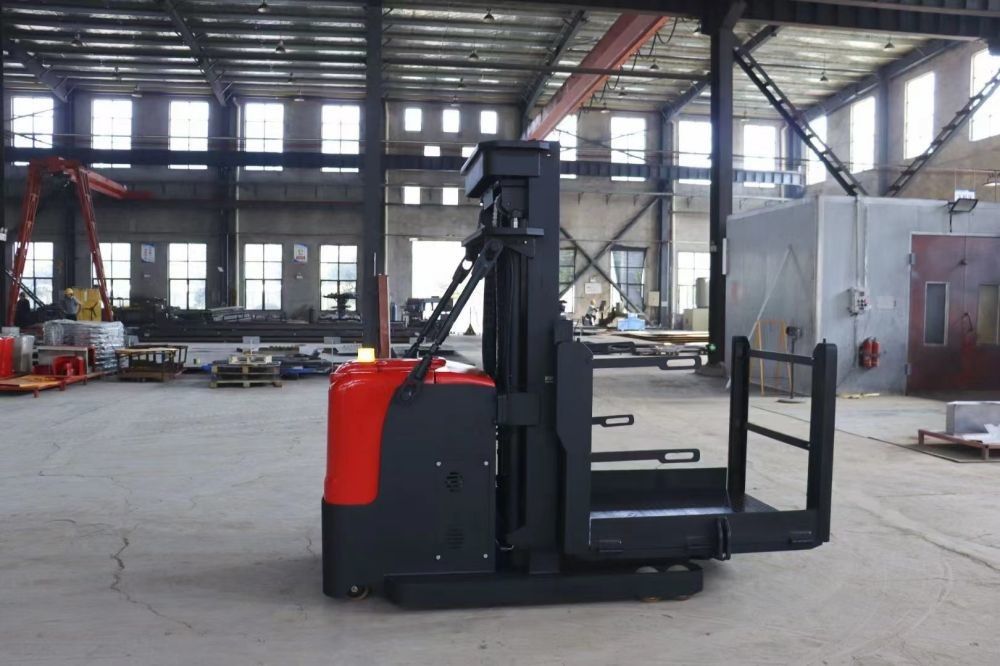

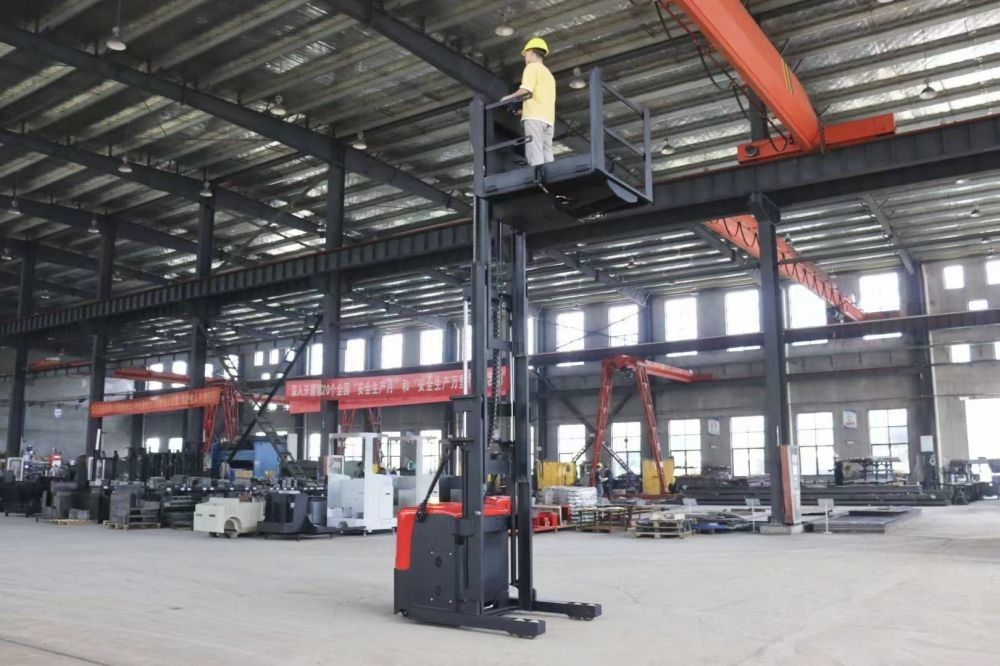

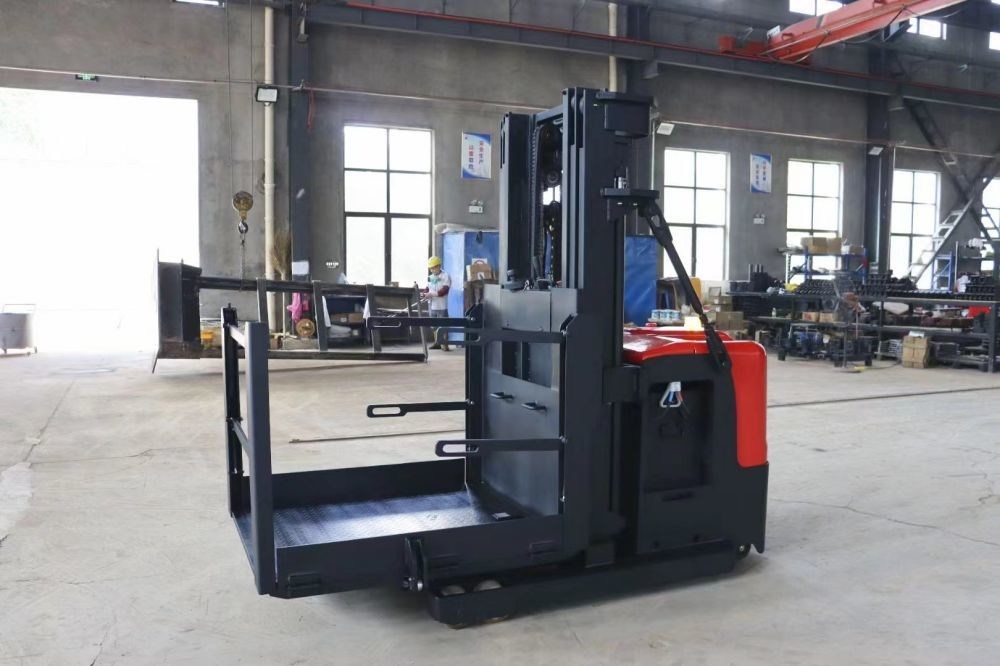

1000 KG Electric Forklift Truck Electric Pallet Stacker 4000 MM Lift height

1000 KG Electric Forklift Truck Electric Pallet Stacker 4000 MM Lift height

  • High Light

    1000 KG Electric Forklift Truck

    ,

    Electric Forklift Truck 4000 MM

    ,

    Electric Pallet Stacker 4000 MM

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CXD10
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

1000 KG Electric Forklift Truck Electric Pallet Stacker 4000 MM Lift height

1000 KG Picking Electric Forklift Truck American CURTIS Brand Drive Control System On Both Sides of the Platform



The median elector selects the vehicle
Rated load: 1000 KG
Lift height:4000 MM
Three section gantry
On both sides of the platform, a pressure plate filled with water should be added
Raiden turned again, and the thumb opened the door
Lightning's magnetohydraulics are on the door



Advantage:

  • Wide angle view, high-strength shock absorption mast
  • American CURTIS brand drive control system
  • Vertical drive system
  • Electronic steering, portable, mute
  • Integrated low-noise hydraulic pump
  • Electromagnetic hydraulic valve
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit, integrated thumb switch
  • Body damping system



Safety:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple brake protection system
  • Leisure backrest/ emergency braking device

Low noise hydraulic

Optional lithium battery



Product Parameters:

Model   CXD10
Rated lifting capacity kg 1000
Load center mm 450
Power type   Electric
Operator type   Standing
Total weight   2600
Drive wheel mm φ230×75
Front wheel mm φ150×90
Auxiliary wheel   φ130×55
Lifting height mm 4260
Max. lifting height of fork mm 4860
Overall length mm 2830
Overall width mm 1160
Height of mast closed   2310
Maximum height when rising to the maximum mm 6510
Height of roof protection frame mm 2250
Min. ground clearance mm 50
Min. height of operating table from the ground mm 240
Auxiliary lifting height mm 600(optional)
Max. lifting height of operating table mm 4500
Fork length mm 920*100*40
Fork outer width mm 680
Turning Radius mm 1735
Right angle channel (1200 horizontal x 1000)   3285
Traveling speed (full load/ no load) km/h 4/5
Climbing gradient % 0
Braking mode   Electromagnetism
Drive motor v/kw 24/1.6
Lifting motor v/kw 24 /3.0
Battery v/ah 24/360
Lifting speed (no load/ full load) mm/s 115/100
Descent speed (no load/ full load) mm/s 125/200
