1000 KG Order Picking Forklift Truck American CURTIS Brand Drive Control System

1000 KG Order Picking Forklift Truck American CURTIS Brand Drive Control System

  • High Light

    1000 KG Order Picking Forklift Truck

    ,

    Order Picking Forklift Truck CURTIS

    ,

    order picker truck CURTIS

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation

1000 KG Order Picking Forklift Truck American CURTIS Brand Drive Control System

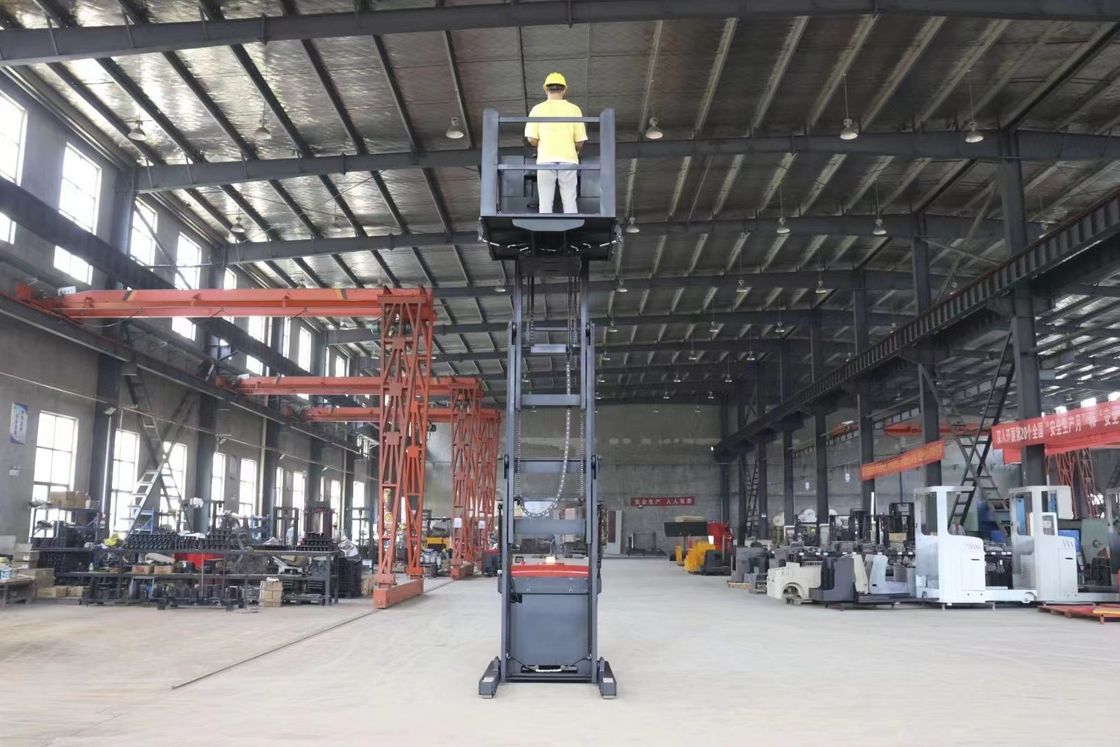

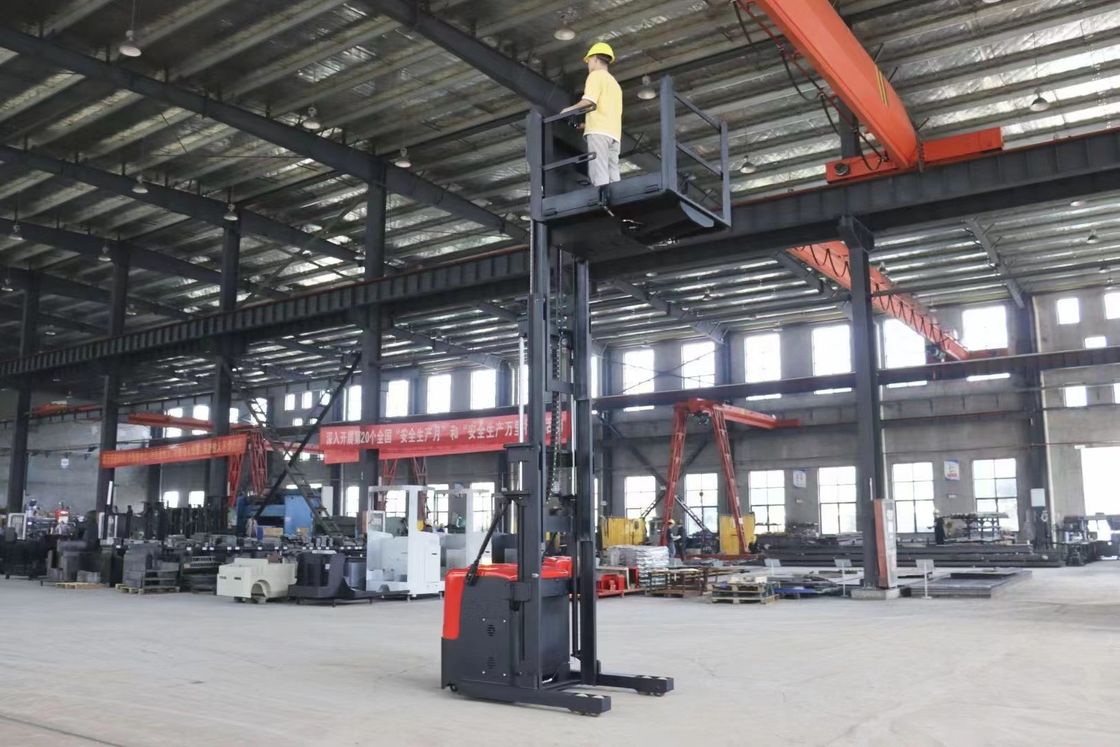

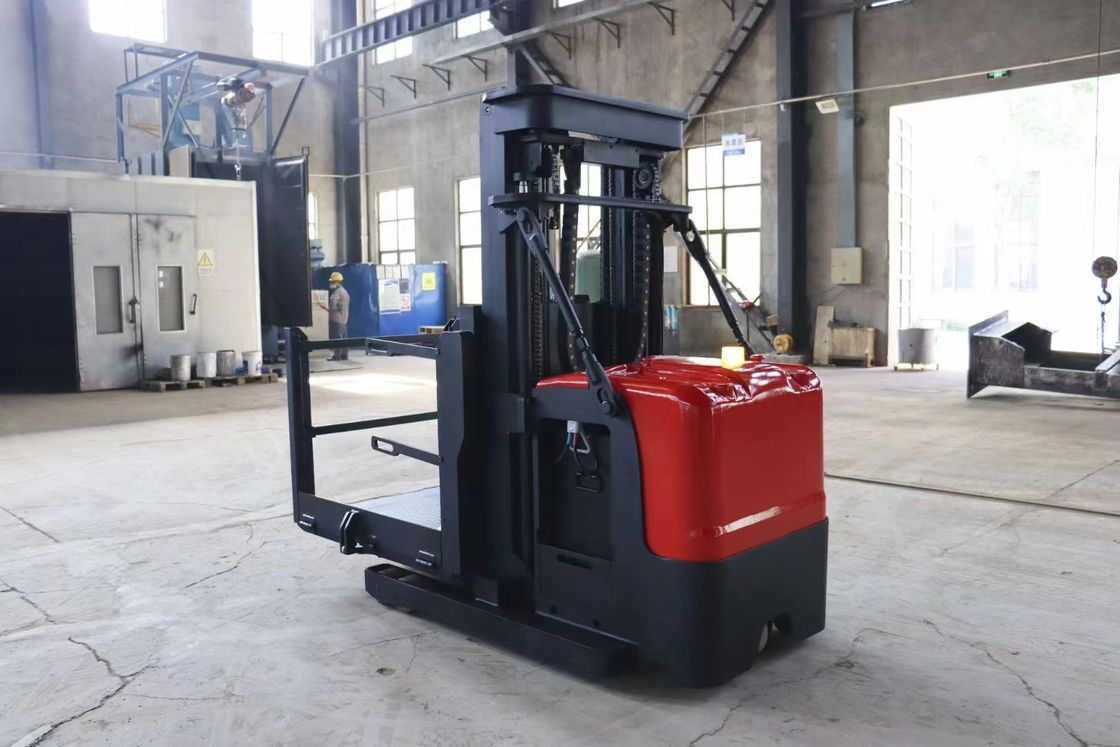

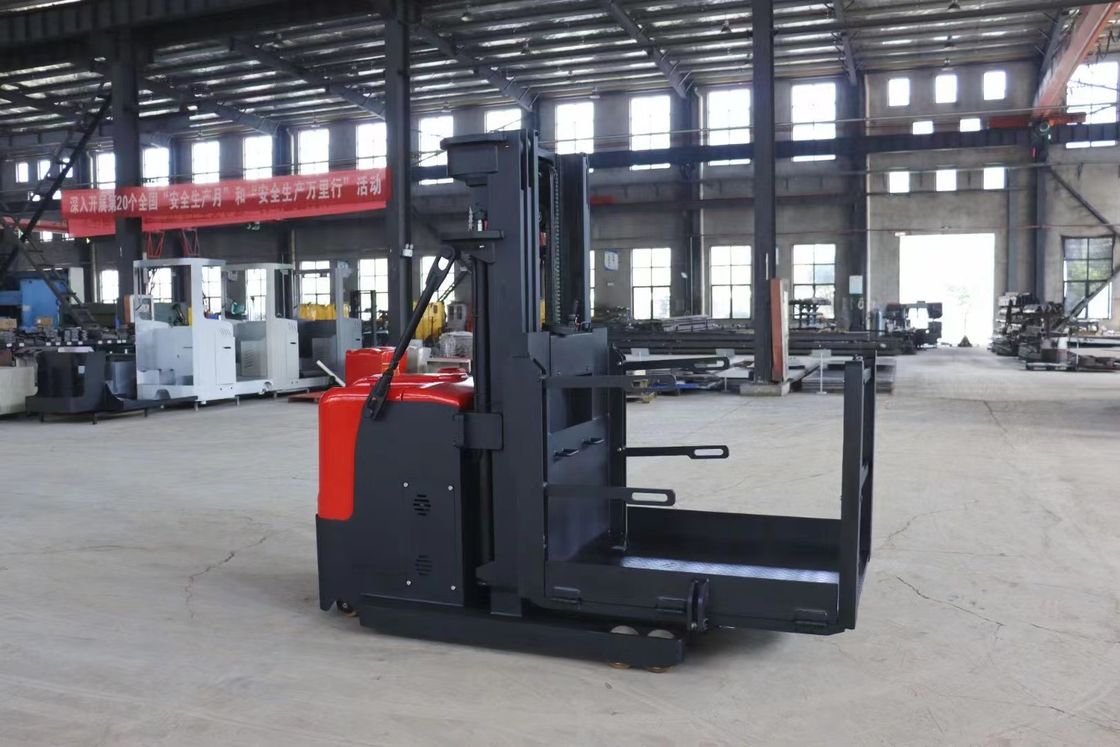

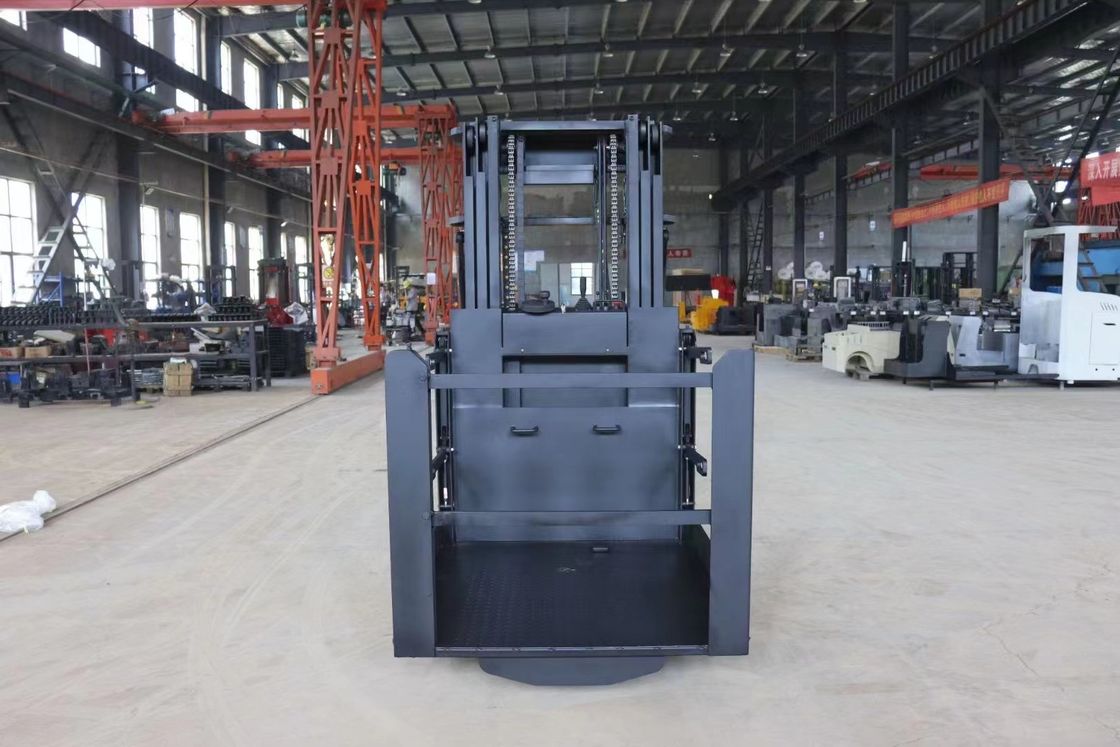

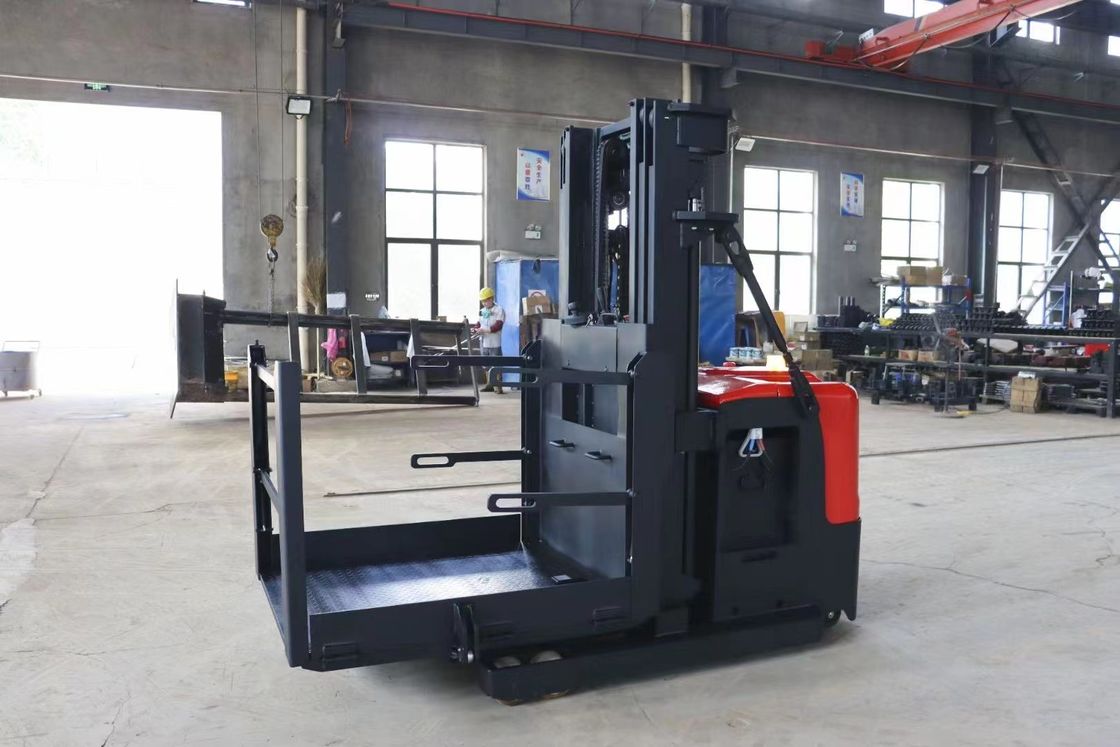

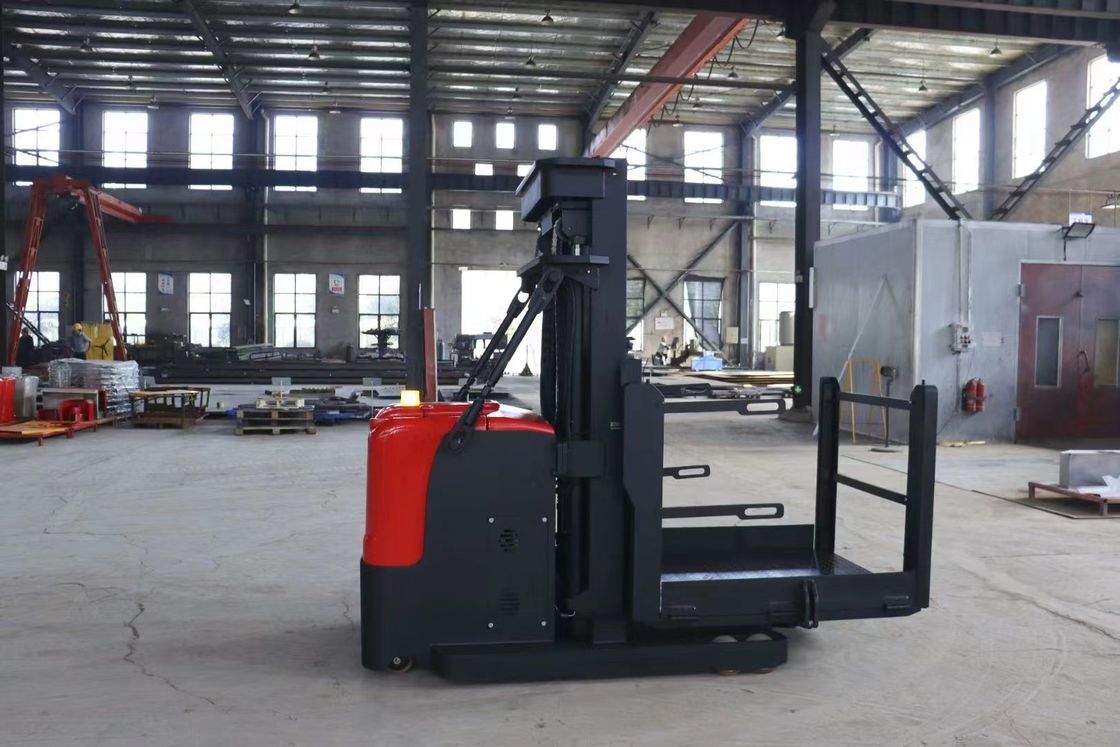

1000 KG Picking Electric Forklift Truck American CURTIS Brand Drive Control System On Both Sides of the Platform



The median elector selects the vehicle
Rated load: 1000 KG
Lift height:4000 MM
Three section gantry
On both sides of the platform, a pressure plate filled with water should be added
Raiden turned again, and the thumb opened the door
Lightning's magnetohydraulics are on the door



Advantage:

  • Wide angle view, high-strength shock absorption mast
  • American CURTIS brand drive control system
  • Vertical drive system
  • Electronic steering, portable, mute
  • Integrated low-noise hydraulic pump
  • Electromagnetic hydraulic valve
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit, integrated thumb switch
  • Body damping system



Safety:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple brake protection system
  • Leisure backrest/ emergency braking device

Low noise hydraulic

Optional lithium battery



Product parameters:

Model   CXD10-45 CXD10-60 CXD10-60 CXD15-60
Rated lifting capacity kg 1000 1000 1000 1500
Load center mm 450
Power type   Electric
Operator type   Standing
Total weight   2600 2900 2650 3150
Drive wheel mm φ230×75
Front wheel mm φ150×90
Auxiliary wheel   φ130×55
Lifting height mm 4260 5760 6000 6000
Max. lifting height of fork mm 4860 6360 6000 6000
Overall length mm 2830 2830 2720 3065
Overall width mm 1160 1160 1160 1342
Height of mast closed   2310 2820 2885 2885
Maximum height when rising to the maximum mm 6510 8010 8250 8250
Height of roof protection frame mm 2250
Min. ground clearance mm 50
Min. height of operating table from the ground mm 240
Auxiliary lifting height mm 600(optional) 600(optional) 0 0
Max. lifting height of operating table mm 4500 6000 6240 6240
Fork length mm 920*100*40 920*100*40 920*100*40 920*120*40
Fork outer width mm 680
Turning Radius mm 1735 1735 1635 1832
Right angle channel (1200 horizontal x 1000)   3285 3285 3180 3370
Traveling speed (full load/ no load) km/h 4/5
Climbing gradient % 0
Braking mode   Electromagnetism
Drive motor v/kw 24/1.6 24/1.6 24/2.2 24/2.2
Lifting motor v/kw 24 /3.0 24/3.0 24/3.0 24/3.0
Battery v/ah 24/360 24/360 24/420 24/420
Lifting speed (no load/ full load) mm/s 115/100 115/100 115/100 115/90
Descent speed (no load/ full load) mm/s 125/200 125/200 125/200 125/230
