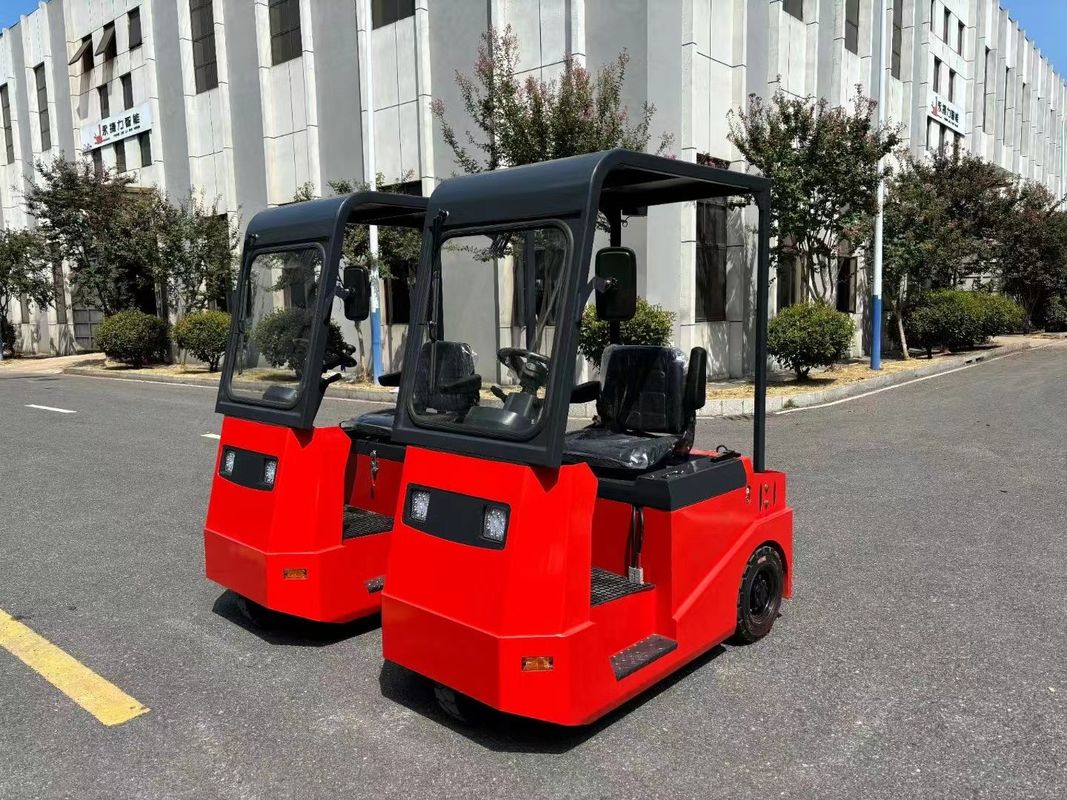

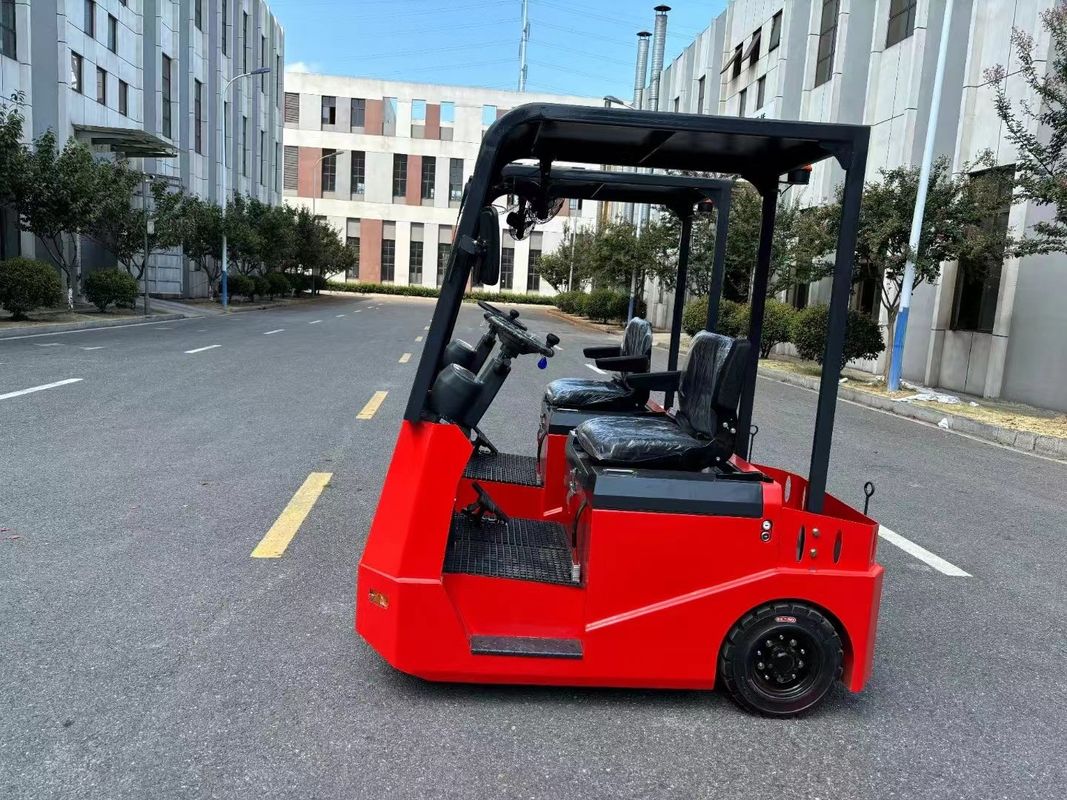

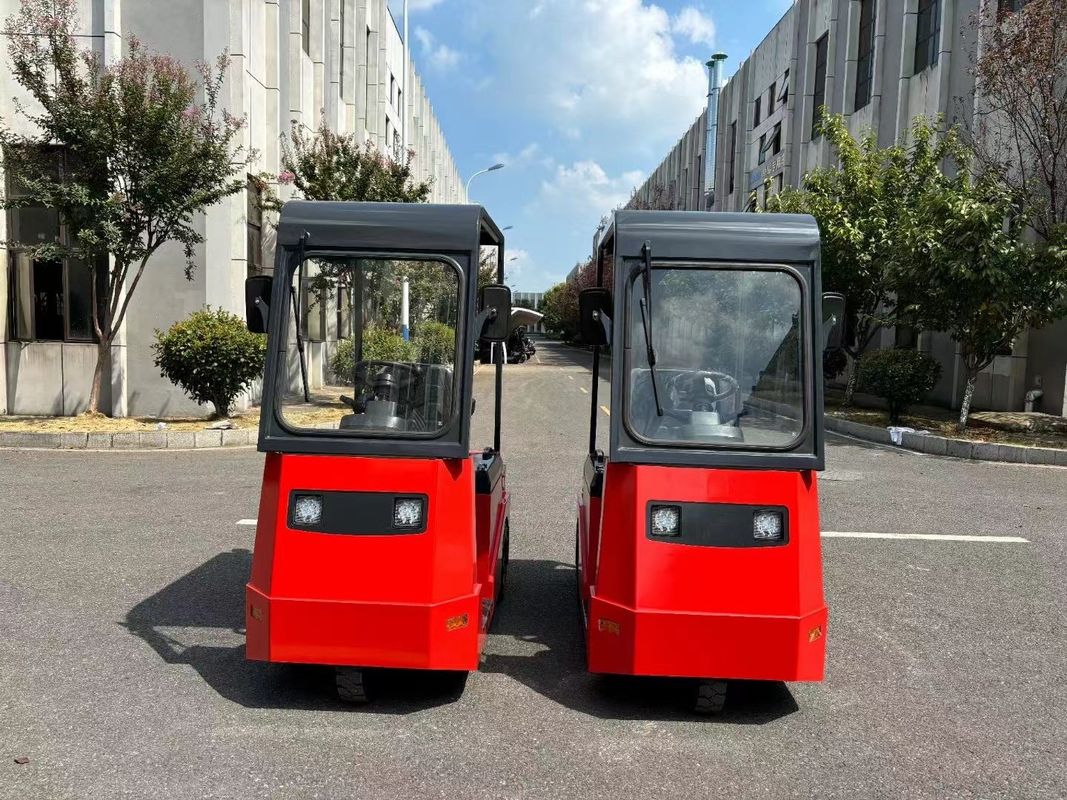

4Tons Electric Tow Truck Equipment with AC Drive Motor and Electromagnetic Brake System

4Tons Electric Tow Truck Equipment with AC Drive Motor and Electromagnetic Brake System

  • Highlight

    4Tons Electric Tow Truck Equipment

    ,

    AC Drive Motor Tow Truck Equipment

  • Drive Motor
    AC
  • Battery
    24V490AH
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    QDD40
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

4Tons Electric Tow Truck Equipment with AC Drive Motor and Electromagnetic Brake System

Electric tow tractors are commonly used in the following scenarios:

  • Warehousing and Logistics
  • Electric tow tractors are used in warehouses and distribution centers to move and tow heavy goods, pallets, and containers over long distances, significantly improving material handling efficiency.
  • Factories and Manufacturing
  • In manufacturing environments, electric tow tractors transport raw materials, semi-finished products, or finished goods between production lines and storage areas, helping to optimize the production process.
  • Airports
  • Electric tow tractors are often used to tow luggage carts and other equipment, ensuring efficient transportation of goods within the airport while reducing noise and emissions.
  • Hospitals and Healthcare Facilities
  • In healthcare facilities, electric tow tractors are used to transport medical supplies, beds, and other heavy equipment, providing a safe and emission-free solution for handling.
  • Retail Industry
  • Large supermarkets and retail warehouses use electric tow tractors to move goods, especially when efficiently handling large inventories is required.
  • Railway and Transportation Hubs
  • In train stations and other transportation hubs, electric tow tractors tow small freight cars, luggage carts, and other equipment, improving transportation efficiency.





Model   QDD40
Operation type   Stand-on type
Power type   Battery
Tire configuration   Polyurethane solid tire
Max. towing weight kg 4000
Max. traction KN 1250
Overall height mm 1600
Width mm 776
Length mm 1330
Max. driving speed km/h 4/5.5
Wheelbase mm 955
Battery weight kg 190
Turning radius mm 1180
Parking brake type   Electromagnetic braking
Total weight kg ~550
Front wheel mm Φ230*75
Rear wheel mm Φ150*50
Battery voltage/ capacity v/ah 24/490
Drive motor kw 1.5
Travel speed regulation mode   Hall accelerator
Electronic control   Curtis electric control
Battery replacement method   Lifting type


Advantage:

  • Electronic power steering, portable and mute
  • Bridge drive unit
  • AC drive, brushless, motor maintenance free
  • American CURTIS drive controller
  • Electromagnetic and regenerative braking system
  • Soft cushion with protective arm
  • Simple operation and flexible steering
  • Omron inductive microswitch



FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift with rich experience for more than 5  years.



Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you supply with ODM & OEM service?

A4: Yes.
