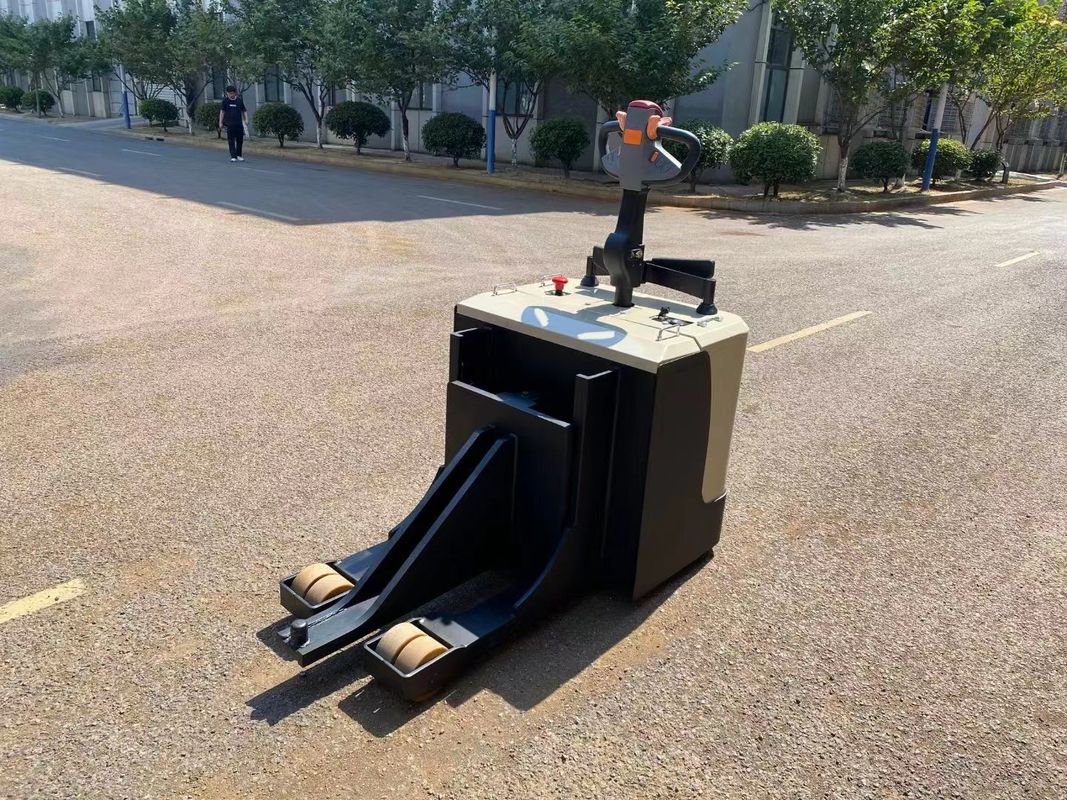

Battery-Powered 5 Tons Load Capacity Electric Tow Tractors Tuggers For Heavy Loads

Battery-Powered 5 Tons Load Capacity Electric Tow Tractors Tuggers For Heavy Loads

  • High Light

    Heavy Loads Electric Tow Tractors

    ,

    Battery Powered Electric Tow Tractors

    ,

    5 Tons Load Electric Baggage Tractor

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    QDD
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Battery-Powered 5 Tons Load Capacity Electric Tow Tractors Tuggers For Heavy Loads



What are Tow Tractors & Tuggers?

Yongjieli tow tractors and tuggers are built to increase productivity and provide the ideal horizontal transportation solution for delivering materials throughout your facility.



Ideally suited for manufacturing, each of our electric Tow Tractors and Tuggers are equipped with AC motors for increased efficiency, runtime, and reduced maintenance, so you never have to worry about getting the job done. What if you need to attach loads of different sizes? No problem. There are multiple hitch options available that can transport a variety of different materials efficiently and easily, depending on your load size.



Advantage:

  • Electronic power steering, portable and mute
  • Bridge drive unit
  • AC drive, brushless, motor maintenance free
  • American CURTIS drive controller
  • Electromagnetic and regenerative braking system
  • Soft cushion with protective arm
  • Simple operation and flexible steering
  • Omron inductive microswitch





Model   QDD
Operation type   Stand-on type
Power type   Battery
Tire configuration   Polyurethane solid tire
Max. towing weight kg 15000
Max. traction KN 1250
Overall height mm 1600
Width mm 776
Length mm 1330
Max. driving speed km/h 4/5.5
Wheelbase mm 955
Battery weight kg 190
Turning radius mm 1180
Parking brake type   Electromagnetic braking
Total weight kg ~550
Front wheel mm Φ230*75
Rear wheel mm Φ150*50
Battery voltage/ capacity v/ah 24V/210
Drive motor kw 1.5
Travel speed regulation mode   Hall accelerator
Electronic control   Curtis electric control
Battery replacement method   Lifting type




FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 5 years in China.



Q2: How about the delivery time?

A2: About 30 days based on different model. For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different non-customized solution.



Q4: Can you provide OEM service?

A4: Yes.We can provide ODM and OEM serive.
