Yongjieli Electric tractor :

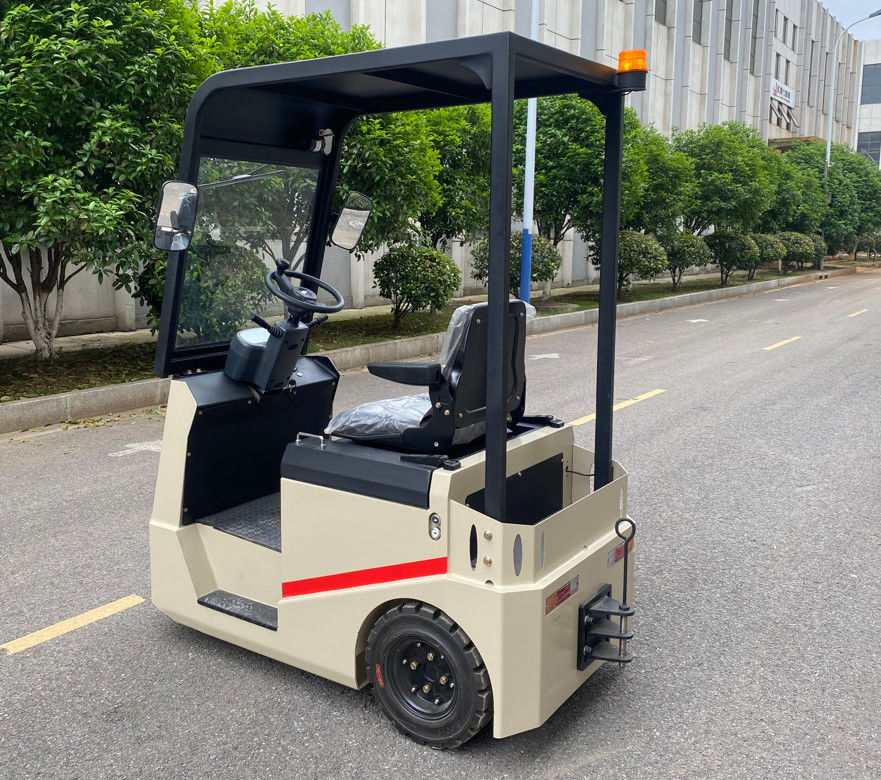

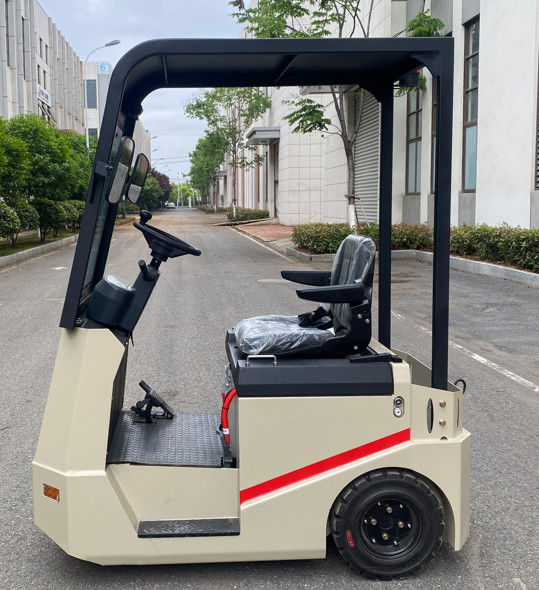

Electric tractor
Towing weight: 2000 kgs
Lithium battery: 51.2V400AH
Lithium ion charger: 48V100A
Four pivot four wheel solid tire
Curtis controller
Hydraulic steering hydraulic braking
Front and rear traction pins
Travel alarm light and reverse buzzer
Inching fine adjustment of forward and backward walking function
Model | QDD | |
Operation type | Stand-on type | |
Power type | Battery | |
Tire configuration | Polyurethane solid tire | |
Max. towing weight | kg | 15000 |
Max. traction | KN | 1250 |
Overall height | mm | 1600 |
Width | mm | 776 |
Length | mm | 1330 |
Max. driving speed | km/h | 4/5.5 |
Wheelbase | mm | 955 |
Battery weight | kg | 190 |
Turning radius | mm | 1180 |
Parking brake type | Electromagnetic braking | |
Total weight | kg | ~550 |
Front wheel | mm | Φ230*75 |
Rear wheel | mm | Φ150*50 |
Battery voltage/ capacity | v/ah | 24V/210 |
Drive motor | kw | 1.5 |
Travel speed regulation mode | Hall accelerator | |
Electronic control | Curtis electric control | |
Battery replacement method | Lifting type |
Advantage:
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift with rich experience for more than 5 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you supply with ODM & OEM service?
A4: Yes.
