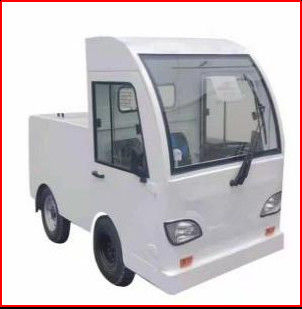

| Model | QDD40 | ||
| Power type | Electric | ||
| Operation mode | Seated type | ||
| Traction weight | kg | 4000 | |
| Tire type front / rear | Rubber solid tire | ||
| Front wheel | 3.50-5 | ||
| Rear wheel | 4.00-8 | ||
| Min. ground clearance | mm | 95 | |
| Overall length | mm | 2020 | |
| Wheelbase | mm | 1325 | |
| Overall width | mm | 985 | |
| Track width (front/ rear) | mm | 870 | |
| Turning radius | mm | 1525 | |
| Travel speed (full load/ no load) | km/h | 8/ 15 | |
| Gradient (full load/ no load) | % | 6/ 12 | |
| Drive motor power | kw | 5.0 | |
| Battery voltage/ capacity | v/ah | 48/280 | |
| Service weight (incl. battery) | kg | 550 | |
| Steering type | 1200 | ||
| Service brake type | Electric steering | ||
| Parking brake type | Mechanical/ hydraulic | ||
