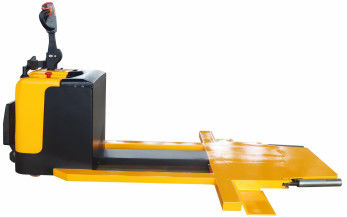

4000kg Electric Vehicle Mover AC Drive Stand On Electric Cart Mover

4000kg Electric Vehicle Mover AC Drive Stand On Electric Cart Mover

  • High Light

    4000kg Electric Vehicle Mover

    ,

    Electric Vehicle Mover AC Drive

    ,

    Stand On Electric Cart Mover

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CBD40Z
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

4000kg Electric Vehicle Mover AC Drive Stand On Electric Cart Mover

Non-standar Car Transfer Pallet Truck Electromagnetic And Regenerative Braking System Yellow Colour

Advantage:

  • Hydraulic lever
  • American CURTIS brand drive control system
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Integrated low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Multi point universal bearing of front wheel
  • Body damping system, handle damping system

Safety:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device
  • Cylinder safety shut-off valve



Name   Car transfer pallet truck (24V)
Operation type   Stand-on type
Model   CBD40Z
Traction weight kg 4000
Tire configuration   Polyurethane solid tire
Minimum ground clearance of fork mm 20
Gear lever rotation angle ° 90
Overall length (incl. fork pedal stowed) mm 2660
Overall width mm 1885
Turning radius (outer pedal retracted) mm 2495 (directional wheel)
Maximum driving speed km/h 4/5
Gradeability % 2-3
Total weight kg ~950
Drive wheel mm Ø230*75
front wheel mm Ø76*52
Directional wheel mm Ø85*70
Balance wheel mm Φ 130*55
Battery capacity v/ah 24/210
Charger v/a 24/30
Drive motor kw 1.6
Lifting motor kw 2.2
Brake   Electromagnetic type
Drive control type   AC
Travel speed regulation mode   Hall accelerator
Steering system   Electronic steering
