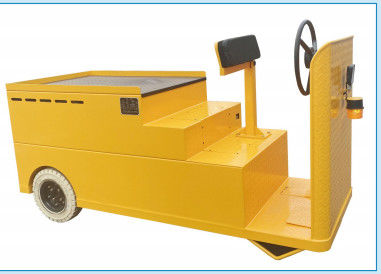

Customization Seated Electric Tow Truck With Driver Cabin Traction Weight Yellow Colour
| Name | Electric tow tractor | |
| Model | QDD40C | |
| Traction weight | kg | 4000 |
| Traction type | Load bearing type | |
| Max. lifting height | mm | 365 |
| Height of bearing shaft head from the ground | mm | 195 |
| Tire configuration | Polyurethane solid tire | |
| Outside width of fork leg | mm | 560 |
| Full length (including fork pedal retraction) | mm | 1780 |
| Overall width | mm | 850 |
| Overall height | mm | 1500 |
| Wheelbase | mm | 1245 |
| Turning radius (outer pedal retracted) | mm | 1545 |
| Max. driving speed | km/h | 4.0/5.0 |
| Gradeability | % | 5/8 |
| Total weight | kg | 750 |
| Drive wheel | mm | Φ230*75 |
| Front wheel | mm | Φ150*90 |
| Balance wheel | mm | Φ130*55 |
| Battery capacity | v/ah | 24/210 |
| Battery charger | v/a | 24/30 |
| Drive motor | kw | 1.6 |
| Lifting motor | kw | 2.2 |
| Travel speed regulation mode | Hall accelerator |
