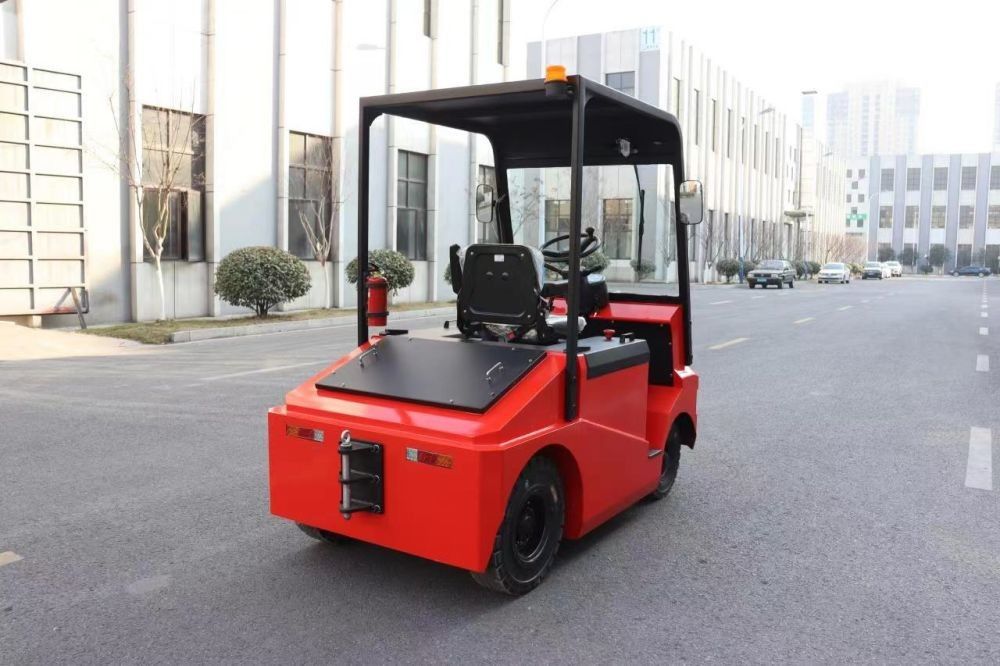

YONGJIELI 4000 KG AC Steering EPS  Electric Towing Tractor  Lithium Battery

YONGJIELI 4000 KG AC Steering EPS Electric Towing Tractor Lithium Battery

  • High Light

    YONGJIELI Electric Towing Tractor

    ,

    Electric Towing Tractor 4000 KG

    ,

    4000 KG Electric Baggage Tractor

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    QDD40C
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

YONGJIELI 4000 KG AC Steering EPS Electric Towing Tractor Lithium Battery

Seated Electric Tow Truck With Driver Cabin Traction Weight 4000 KG



Advantage:

  • Electronic power steering, portable and mute
  • Bridge drive unit
  • AC drive, brushless, motor maintenance free
  • USA CURTIS drive controller
  • Electromagnetic and regenerative braking system
  • Safety seat
  • Forward and backward fine adjustment
  • Simple operation and flexible steering



Security:

  • Drive stepless speed regulation
  • Curve automatic deceleration device
  • Controller multiple automatic protection system
  • Emergency reverse device, emergency brake switch
  • Hydraulic braking
  • Travel warning lamp
  • AC EPS
  • Automatic deceleration in curve
  • Optional lithium battery



Name   Electric tow tractor
Model   QDD40C
Traction weight kg 4000
Traction type   Load bearing type
Max. lifting height mm 365
Height of bearing shaft head from the ground mm 195
Tire configuration   Polyurethane solid tire
Outside width of fork leg mm 560
Full length (including fork pedal retraction) mm 1780
Overall width mm 850
Overall height mm 1500
Wheelbase mm 1245
Turning radius (outer pedal retracted) mm 1545
Max. driving speed km/h 4.0/5.0
Gradeability % 5/8
Total weight kg 750
Drive wheel mm Φ230*75
Front wheel mm Φ150*90
Balance wheel mm Φ130*55
Battery capacity v/ah 24/210
Battery charger v/a 24/30
Drive motor kw 1.6
Lifting motor kw 2.2
Travel speed regulation mode   Hall accelerator
