Seated Tow Tractor Electric With Driver Cabin Traction Weight 3000 KG

Seated Tow Tractor Electric With Driver Cabin Traction Weight 3000 KG

  • High Light

    Seated Tow Tractor Electric

    ,

    Tow Tractor Electric Driver Cabin

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    QDD30C
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

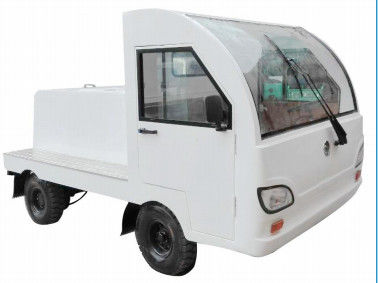

Seated Tow Tractor Electric With Driver Cabin Traction Weight 3000 KG

Seated Electric Tow Truck With Driver Cabin Name Traction Weight 3000 KG



Advantage:

  • USA CURTIS brand drive control system
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Integrated brand low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Drive shock absorption system / pedal, handle shock absorption
  • Inductive proximity switch



Security:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device
  • Cylinder safety shut-off valve
  • AC EPS
  • Low noise hydraulic pump
  • Optional lithium battery
Name   Electric tow tractor
Model   QDD30C
Traction weight kg 3000
Traction type   Load bearing type
Max. lifting height mm 365
Height of bearing shaft head from the ground mm 195
Tire configuration   Polyurethane solid tire
Outside width of fork leg mm 560
Full length (including fork pedal retraction) mm 1780
Overall width mm 850
Overall height mm 1500
Wheelbase mm 1245
Turning radius (outer pedal retracted) mm 1545
Max. driving speed km/h 4.0/5.0
Gradeability % 5/8
Total weight kg 750
Drive wheel mm Φ230*75
Front wheel mm Φ150*90
Balance wheel mm Φ130*55
Battery capacity v/ah 24/210
Battery charger v/a 24/30
Drive motor kw 1.6
Lifting motor kw 2.2
Travel speed regulation mode   Hall accelerator
