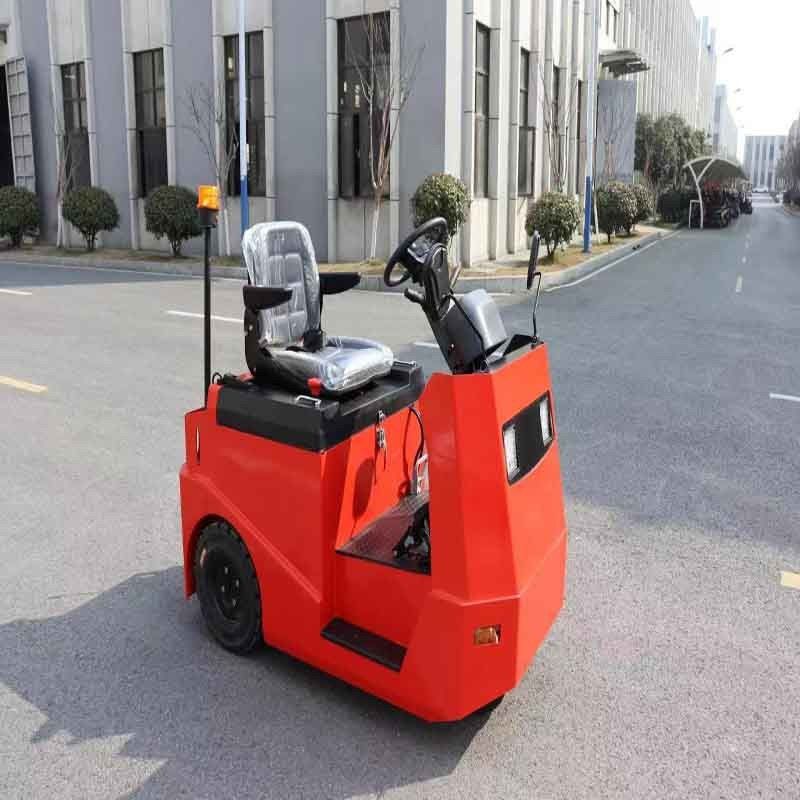

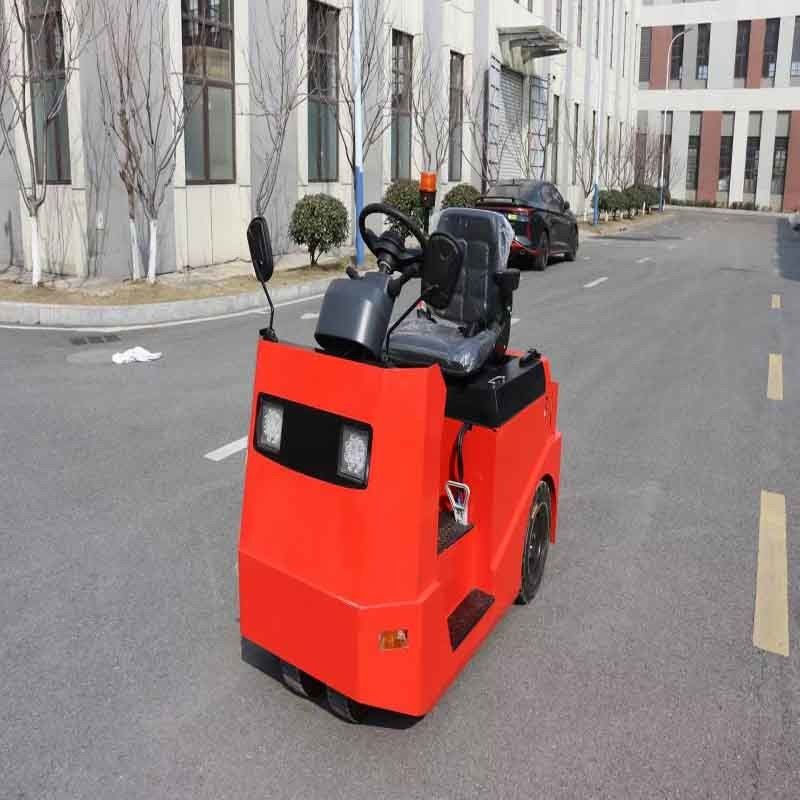

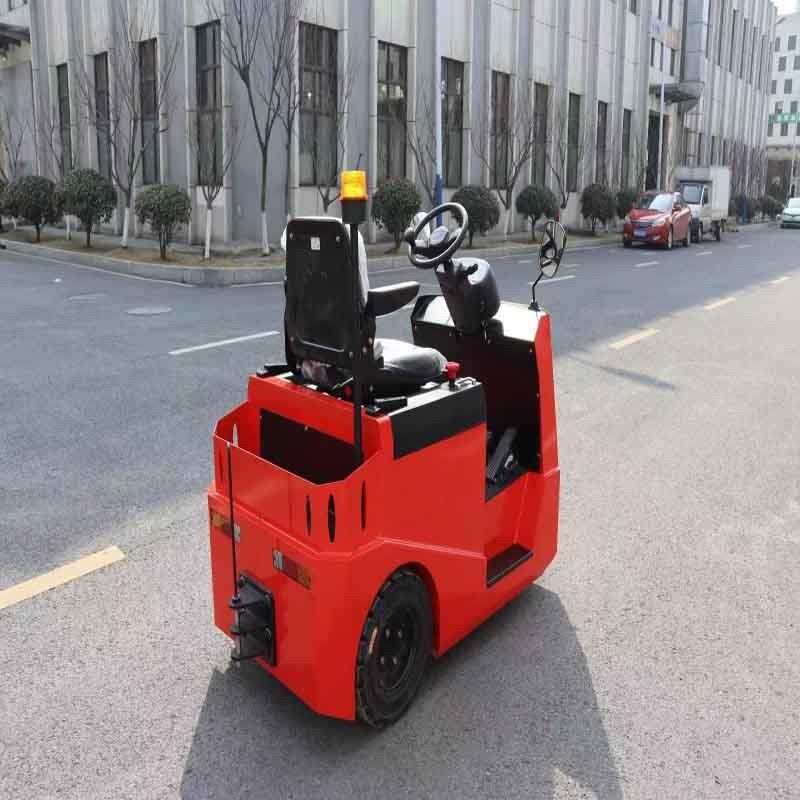

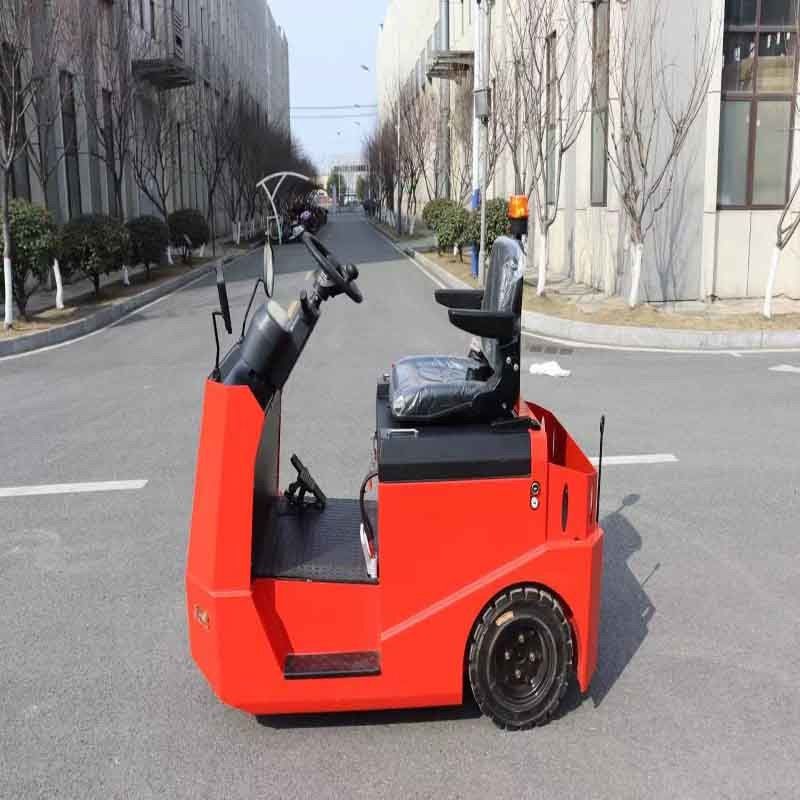

Electric Towing Tractor Sit-down American CURTIS Electronic Steering Easy to Operate Stepless Adjustment

Electric Towing Tractor Sit-down American CURTIS Electronic Steering Easy to Operate Stepless Adjustment

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    Anhui, China
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    QDD80B
  • Minimum Order Quantity
    1 SET
  • Price
    $12,700.00~$13,300.00 PER SET
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    100 SETS PER MONTH

Electric Towing Tractor Sit-down American CURTIS Electronic Steering Easy to Operate Stepless Adjustment

Model No.CDD25
Power SupplyBattery
Driving ModeStand-on
Load2500kg
Load Center Distance500mm
Tyre MaterialPolyurethane
Tyre Amount4/1x+2
Mast typeDouble
Standard Lift Height3000 mm
Free Lift Height/
Lowered Mast Height2000 mm
Loading MAX. Height3490 mm
MIN. Grounding clearance85 mm
Overall Length2515 mm /2115 mm
Axis1390 mm
Overall Width1230 mm
Track Front/Rear505 mm/1100 mm
Fork Size1150 mm/200 mm/65 mm
Distance of Unilateral External Fork685 mm/560mm
Turning Radius2125mm/1715mm
Driving Velocity (full/idle)4.0/5.0 Km/h
Lifting Velocity (full/idle)80/125 mm/s
Descending Velocity (full/idle)160/105 mm/s
Climbing Velocity (full/idle)5%/8%
Drive MotorAC
Drive Motor Power1.5 kw
Lifting MotorDC
Lifting Motor Power3 kw
Battery24 V/210 AH
Battery Weight200 kg
Weight (including battery)1300 kg
Steering TypeElectronic Steering
Brake SystemElectromagnetic
Brake ModeLever Operation
